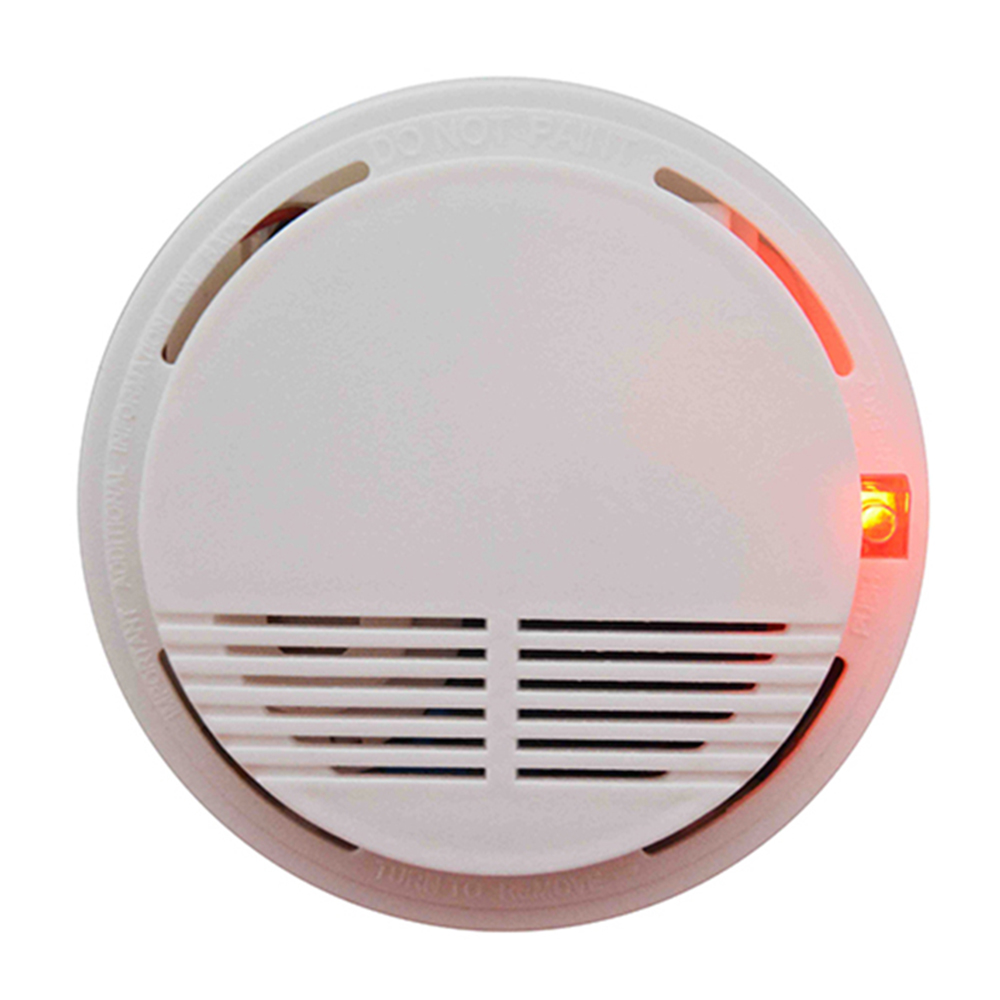

Free-standing smoke detector
| 1. Name:Standalone Smoke Detector With Battery |
| 2. Model No.:AW-SSD701 |
| 3. Size:Diameter 107mm * Deep 35mm |
| 4. Weight:0.12kg |
| 5. Shell Material:Hard Plastics |
| 6. Shell Color:White |
| 7. LED Color:Red |
| 8. Battery: 9V DC battery |
Descreiption:
Smoke detector for point-type photoelectric smoke fire detectors, smoke referred to an
independent, battery, smoke base and smoke the first three parts. Need not be connected to any
alarm host. Primarily used to detect the smoke generated by the initial fire, when smoke is
detected and promptly send alarm signals can through their own buzzer.
Principle:
By photoelectric sensor detector to detect the concentration within the air of smoke, dust and
other suspended particles, so as to achieve early to judge the effect of the fire, and the fire alarm
by issuing own buzzer.
Shows:
Parameters:
1. Operating Voltage: DC9V |
Packing
1) Plastic
2) Cartons
3) Weight: 16kg
4) Volume: 570mm * 335mm * 270mm
5) Quantity: 100 pcs
