ir beam smoke detector

Click on the image to view the original image

Product：	views：5ir beam smoke detector
Branch：	ASENWARE
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 03:13

Product Details

Overview

Quick Details

Supply Ability

Packaging & Delivery

Packaging Details: Standard export packing including:
1) PP Bag
2) Cartons
3) Pallets or plywood case for sea shipping

Beam smoke detector feture

1.Manufacturing in compliance with EN54-12

2.Hassle free alignment, built with digital guide display and laser beam pointing

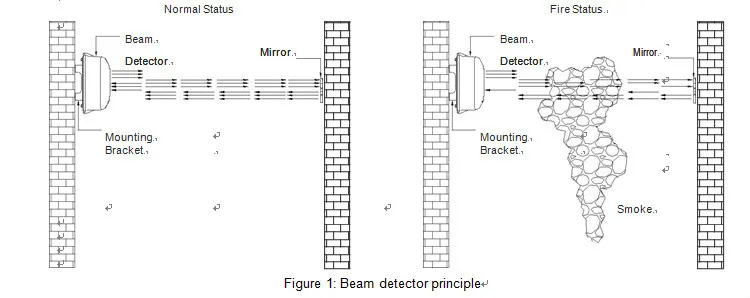

3.Employ single-ended design through reflective mirror.

4.Four ranges wide monitoring from 8-100 meters via encoder

5.Three users programming sensitivity adjustment

6.Built-in microprocessor

7.Self-diagnostic function to monitor internal faults

8.Automatic compensation for factors weakening received signals, such as dust intruder, positional movement and aging of the transmitter.

9.Fire and Fault interfacing relays

10.Attractive and pleasing appearance

11.Special user-friendly alignment method

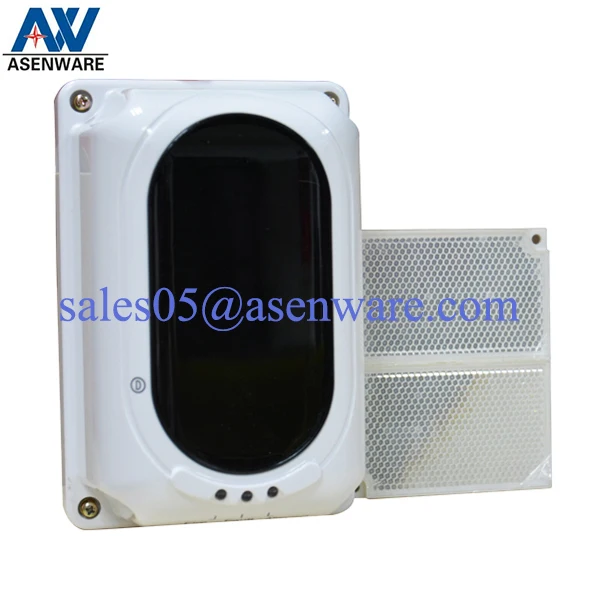

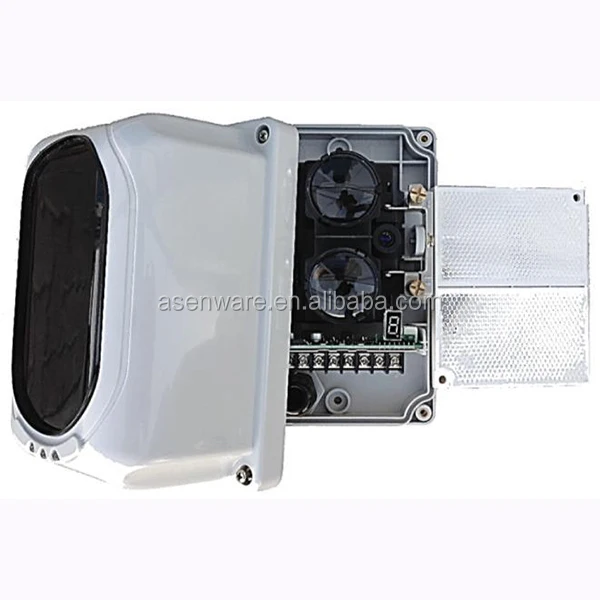

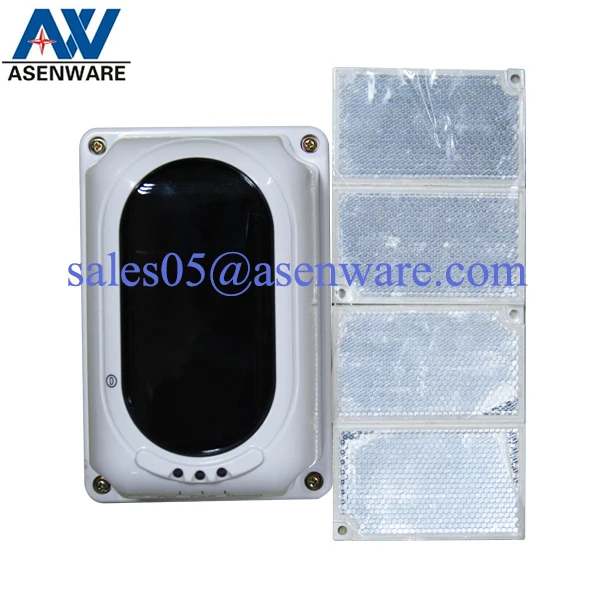

Beam smoke detector pictures

Beam smoke detector specification

Model number: Beam smoke detector AW-BK901

Compliance	EN54-12
Fire Detection and Alarm Systems	BS 5839 Part 1:2002
Specifications
Operating Voltage	20 V to 28 V DC
Current Parameters	Standby:23mA	Commission:40mA	Alarm:33mA
Beam Sensor Sensitivity [via Encoder]	Level 1: 2.6 dB	High Sensitivity
	Level 2: 3.4 Medium Sensitivity
	Level 3: 4.8 dB Low Sensitivity
Beam Path Angle	±0.5ºDirectional

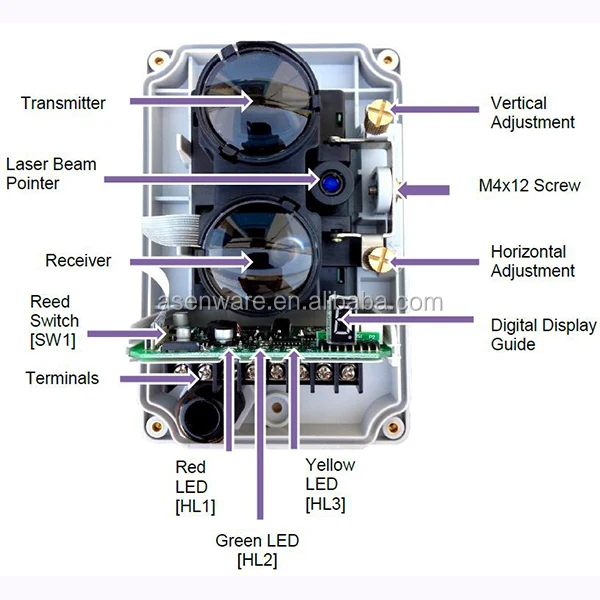

Alignment Guide	Laser Beam Pointer
Digital Display Guide	Nixie Tube
LED Indicator Guide	Red: Fire ; Yellow: Fault ; Green: Alignment
Reset Time	Less than 2 Second
Relay Capacity [Fire & Fault]	Normally Open/ 2.0 A; 30 VDC
Physical
Material / Color	ABS / White

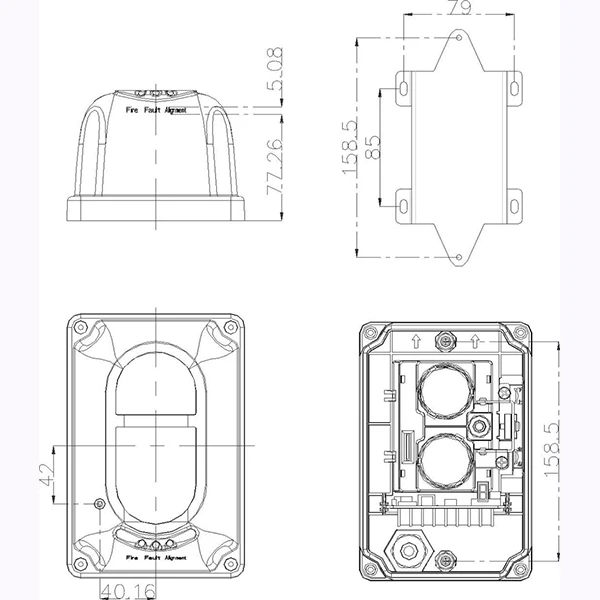

Dimension / Weight	L:190.87 x W:126.87 x H:91.96 mm / 440 gm
Weight	0.130 Kg with base
Environmental
Operating Temperature / Protection	-10°C to 55°C / IP30 [IP66 glue seal]
Rating
Humidity	0 to 95% Relative Humidity, Non condensation
