Asenware brands electric smoke detector
Safety Cigarette Smoke Detector Basic Introduction
1.-- Models AW-CSD811 is photoelectronic detector uses a state of-the-art optical sensing chamber.
2.--This detector is designed to provide open area protection and to be used with most conventional
fire alarm control panel.
3.-- Two LEDs on each detector provide 360° visible alarm indication. They flash every 3~5 seconds
indicating that power is applied and the detector is working properly.
| Item | Parameters |
| Operating Voltage Range: | 9 to 32 VDC Volts Non-polarized |
| Standby Current: | ≤100μA @ 24 VDC |
| Maximum Alarm Current (LED on: ) | ≤55mA @ 24 VDC |
| Operating Humidity Range: | 10% to 93% Relative Humidity, Non-condensing |
| Operating Temperature Range: | 14°F to 120°F (-10°C to 49°C) |
| Adjustable Sensitivity: | 1-2.5%/FT |
| Height: | 2.2(55 mm) installed in Base |
| Diameter: | 4.0(103 mm) |
| Weight: | 5.5 oz. (155 g) |

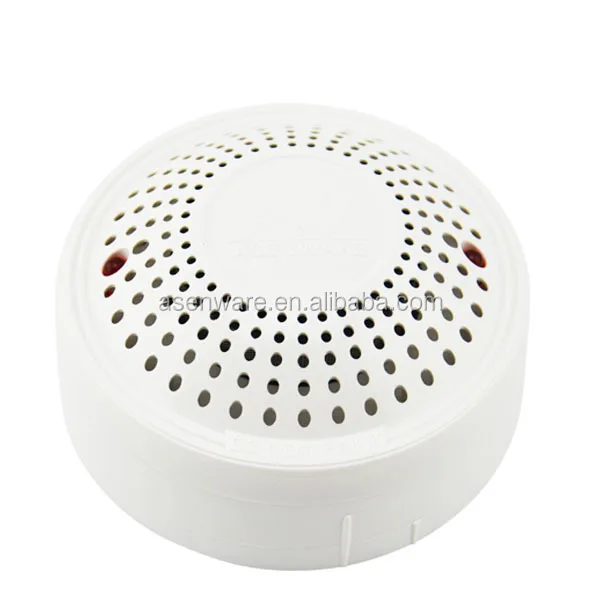

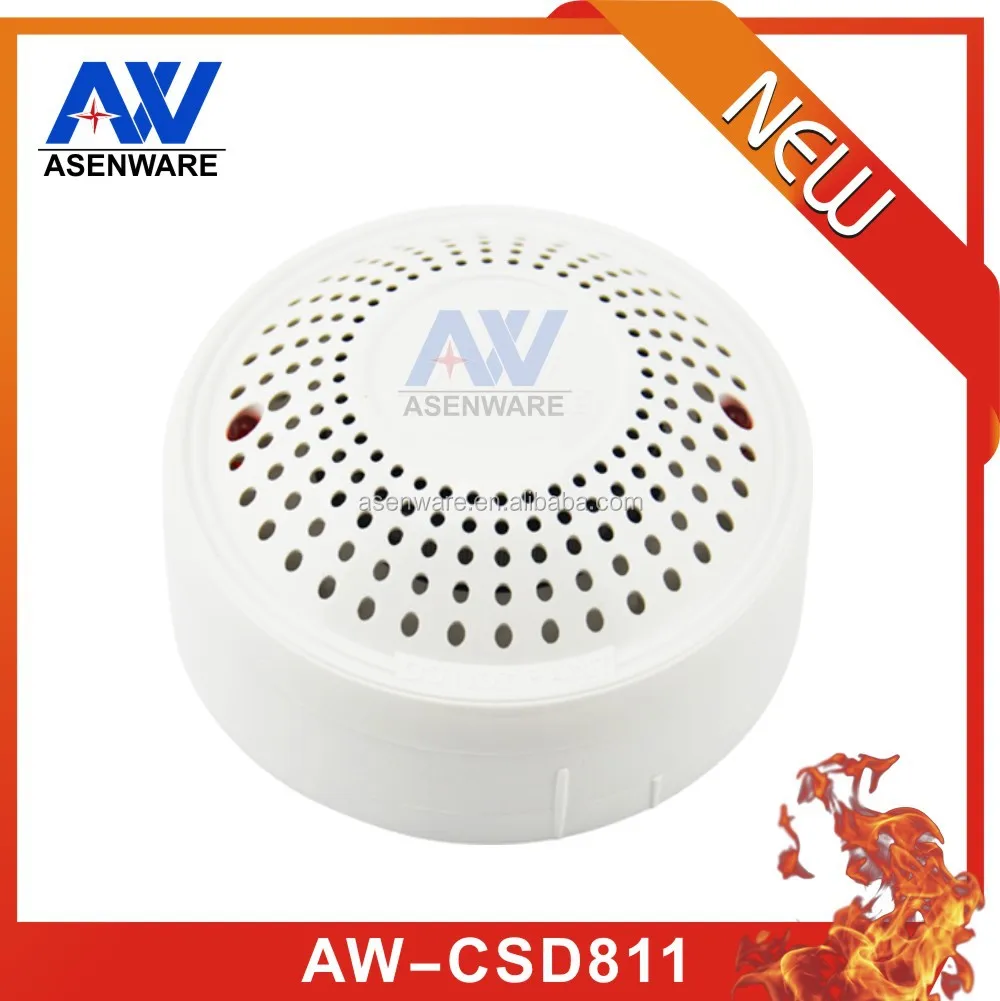

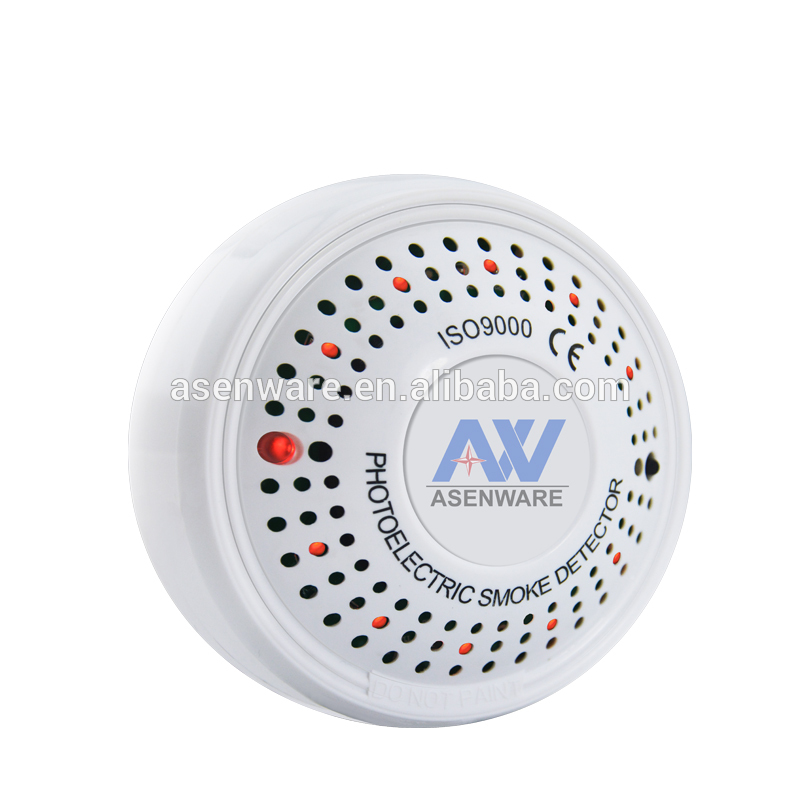

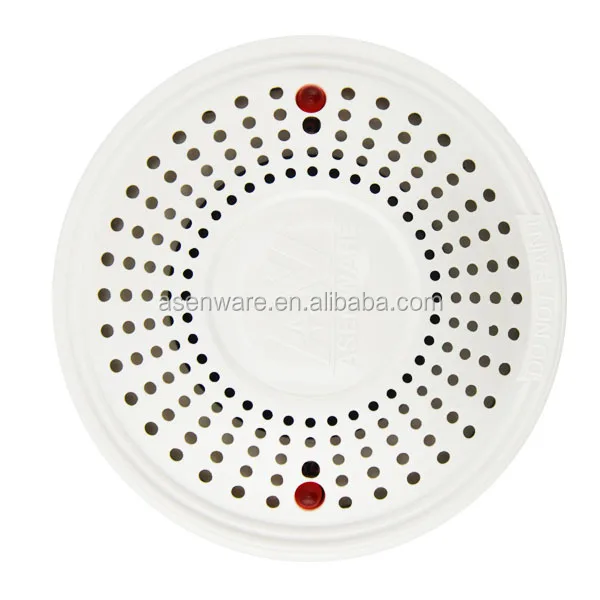

Pictures showing details of the Fire Prevention Cigarette Smoke Detector
Packaging : Cigarette Smoke Detector: PP Bag per Set to protect/Carton Box outside .
Shpping :UPS FEDEX EMS DHL negotiable for shpping addressable fire alarm system .
Ø OEM & ODM service: YES
Ø Technical support and After-sale service: YES
Ø Warranty: 1 YEAR
Ø Delivery Time: 3 - 5 days after payment received
Ø Shipping: delivery by air, ship or DHL, FEDX etc. Express for your order
