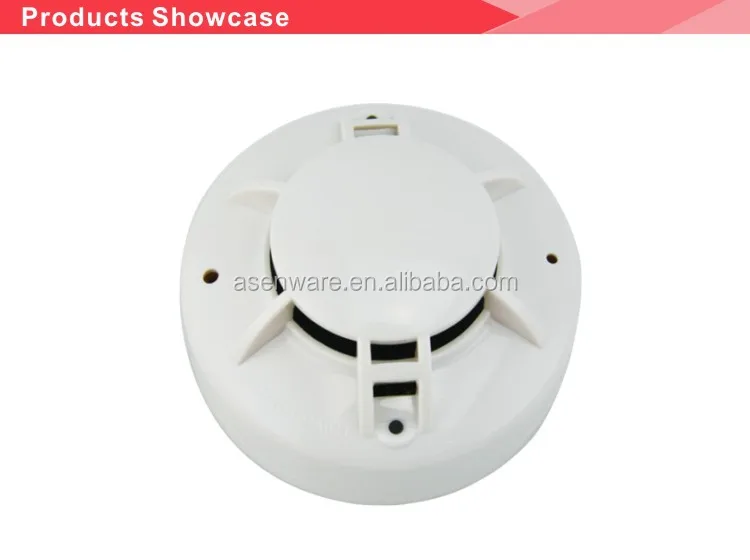

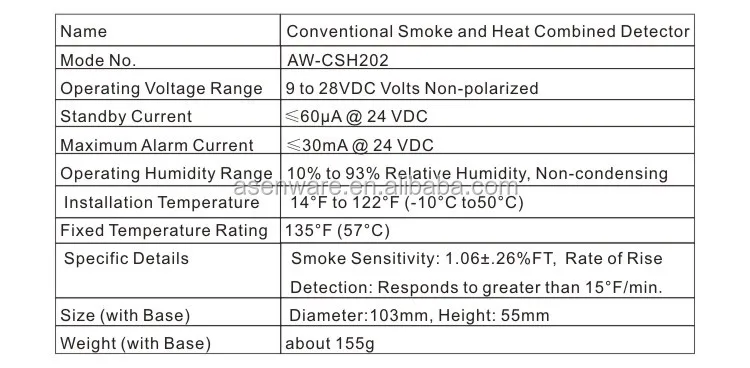

| Name | Conventional Smoke and Heat Combined Detector |
| Mode No. | AW-CSH202 |
| Operating Voltage Range | 9 to 28VDC Volts Non-polarized |
| Standby Current | ≤60µA @ 24 VDC |
| Maximum Alarm Current | ≤30mA @ 24 VDC |
| Operating Humidity Range | 10% to 93% Relative Humidity, Non-condensing |
| Installation Temperature | 14°F to 122°F (-10°C to50°C) |
| Fixed Temperature Rating | 135°F (57°C) |
| Specific Details | Smoke Sensitivity: 1.06±.26%FT, Rate of Rise Detection: Responds to greater than 15°F/min. |
| Size (with Base) | Diameter:103mm, Height: 55mm |
| Weight (with Base) | about 155g |
