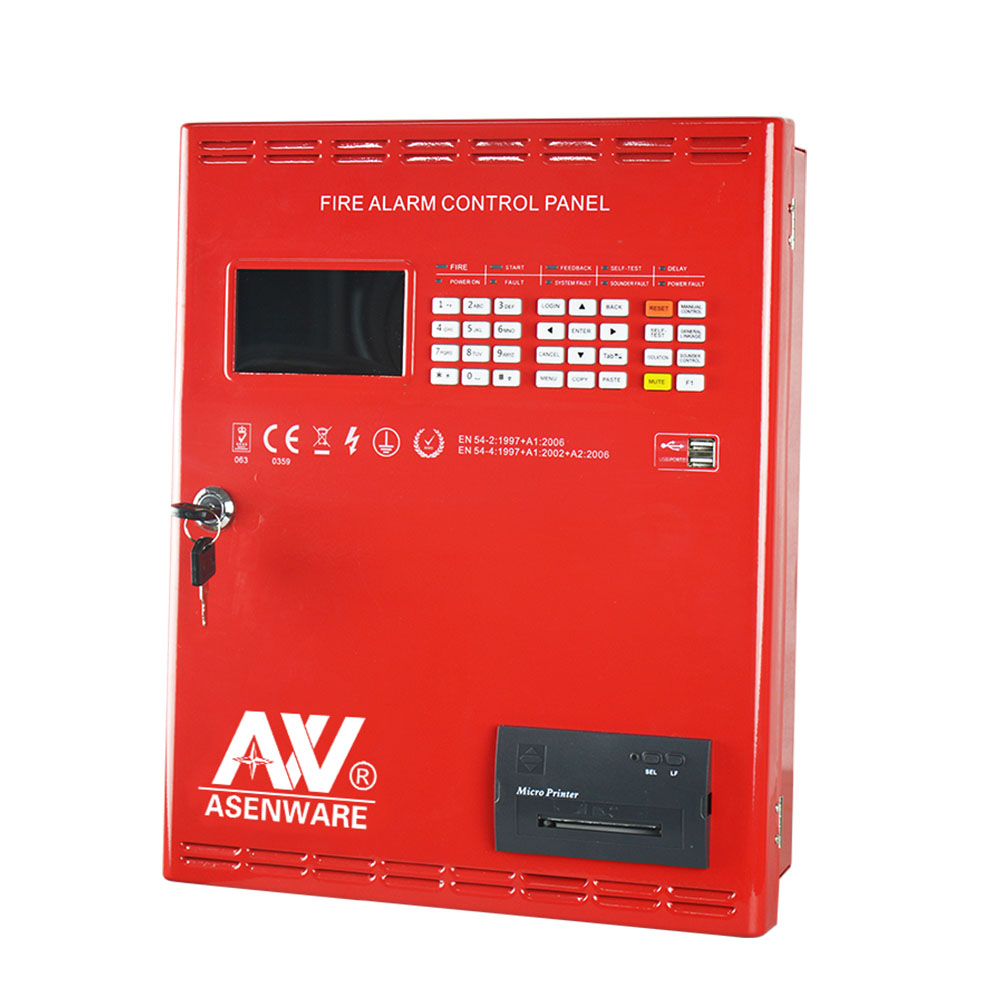

Wallmounted Addressable Programmable 324Points Multiloop Fire Alarm Panel
1.Analog intelligent automatic realtime fire alarm detection system
2.Non-polarity 2-bus wiring connection system
3. 324 addresses & extensive loop cards
4.Single loop with 324 addresses to be programmed
5.R&D followed by LPCB/UL/EN54/VDS regualed involved
6.Automatic switch between mains power & backup 24V leadacid battery.
7.High compatibility with FM200 fire suppression system.
Applications:Commercial building,warehouse,school,factory,hotel,office,etc.
2.Functional Descriptions:
2).The Features:
Model No.: | AW-AFP2189 |
Data Processing | Collect data:through the internal microprocessors in the intelligent detectors & modules to realize digital filtering and auto-compensation functions. Carry out data: based on fuzzy control theory and modern fire alarm theory to carry out data processing |
Power supply system | an AC-DC master-standby power supply system |
| Support mini-printer |
| Support ten multi-line linkage control/monitoring points to control and monitor important equipment. |
For the users | be equipped with eight bus manual control points, which makes Easy for user sto control related equipment. |
industrial & civil buildings factories, hospitals, restaurants, hotels, schools, business buildings, government buildings,etc. | |
Advantage | Accurate & efficient feedback, Humanized setting, Economic, User-friendly & convenient maintenance,etc. |
3. Main Technical Parameters:
Main technical parameters: | |
AW-AFP2188 system capacity | 324 points (non-polarity, two wire bus, fully mixed coding) |
AC input voltage | AC 220V±20% 50Hz |
DC power | DC24V 5.0Ah, two fully sealed maintenance-free DC12V 5.0Ah storage batteries connected in series |
AC input power | 120W |
Circuit bus | two-wire system |
Total length | ≤1500m |
Voltage UL of the circuit bus | +20V≤UL≤+26V(when the DC power is operating) +24V≤UL≤+26V(when the AC power is operating) |
System working conditions
| 1. Temperature: -10°C~+50°C 2.Humidity: ≤95% 3.Power supply: AC 220V 50HZ DC 24V 6A 4.Output contact capacity: AC 220V 1A DC 27.6V 3A |
4. The diagram of the addressable fire alarm system:
5.Asenware Fire Deteion Alarm Panel Oversea Installation Demostration:
The standard addressable accessories involved as follows:
1) AW-ASD2188:Addressable Photoelectric Smoke Detector
2) AW-ATD2188:Addressable Fixed Temperature Heat Detector
3) AW-AMC2188:Addressable Manual Call Point
4) AW-ASS2188:Addressable strobe siren
5) AW-AIO2188-IN:Addressable input module to wire future conventional devices.
6) AW-AIO2188-OUT:Addressable output module to control the bell.
7) AW-CODER2188:Programmer to code the detectors
The installation photos above is taken from 5-star SIMAMA Hotel,in Lilongwe,Malawi.
Ø OEM & ODM service: YES
Ø Technical support and After-sale service: YES
Ø Warranty: 1 YEAR
Ø Delivery Time: 3 - 5 days after payment received
Ø Shipping: delivery by air, ship or DHL, FEDX etc. Express for your order
