Infrared Conventional Reflective Beam Smoke Detector for Building Project
Click on the image to view the original image
Product： views：5Infrared Conventional Reflective Beam Smoke Detector for Building Project
Branch： Asenware
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 03:13
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Asenware
Model Number:
AW-BK901, AW-BK901
Item:
Beam Smoke Detector for Building Project
Standard Compliance:
EN54-12 BS 5839 Part 1:2002
Operating Voltage:
20 V to 28 V DC
Current Parameters:
Standby:23mACommission:40mAAlarm:33mA
Beam Path Angle:
±0.5 Directional
Alignment Guide:
Laser Beam Pointer
Digital Display Guide:
Nixie Tube
Reset Time:
Less than 2 Second
Relay Capacity:
Normally Open/ 2.0 A; 30 VDC
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
with foam bag and export paper box
Port
Zhongshan



Product Description

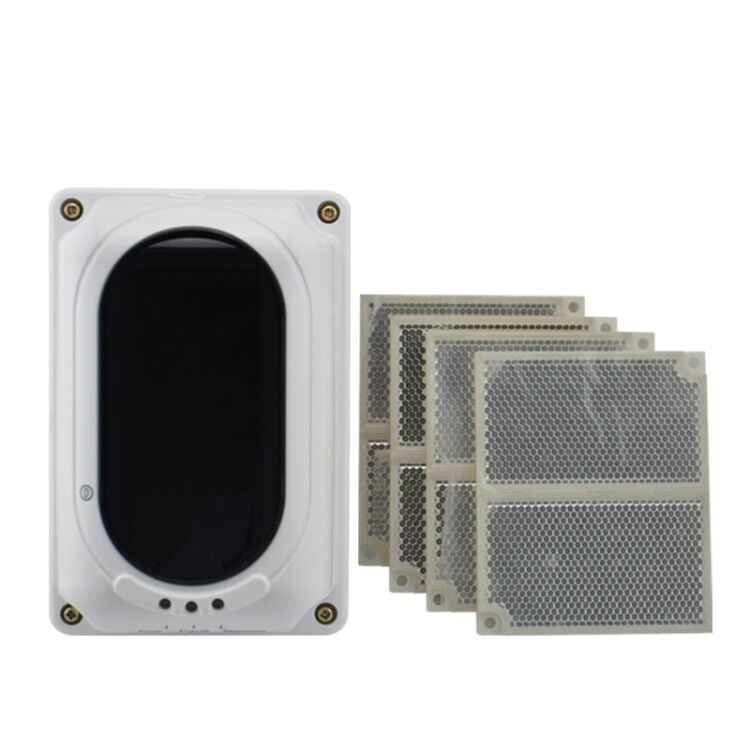

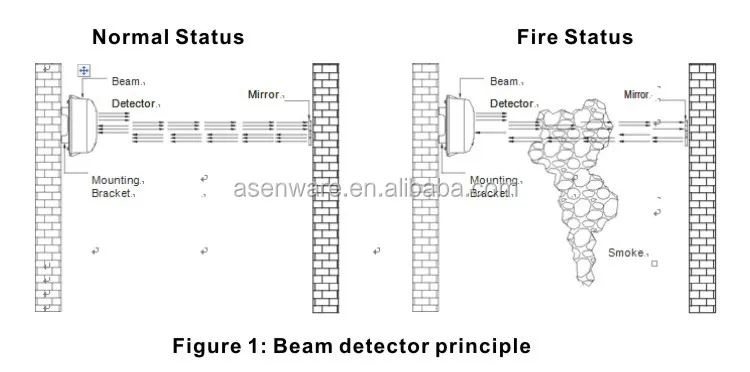

Infrared  Conventional Reflective  Beam Smoke Detector for Building Project

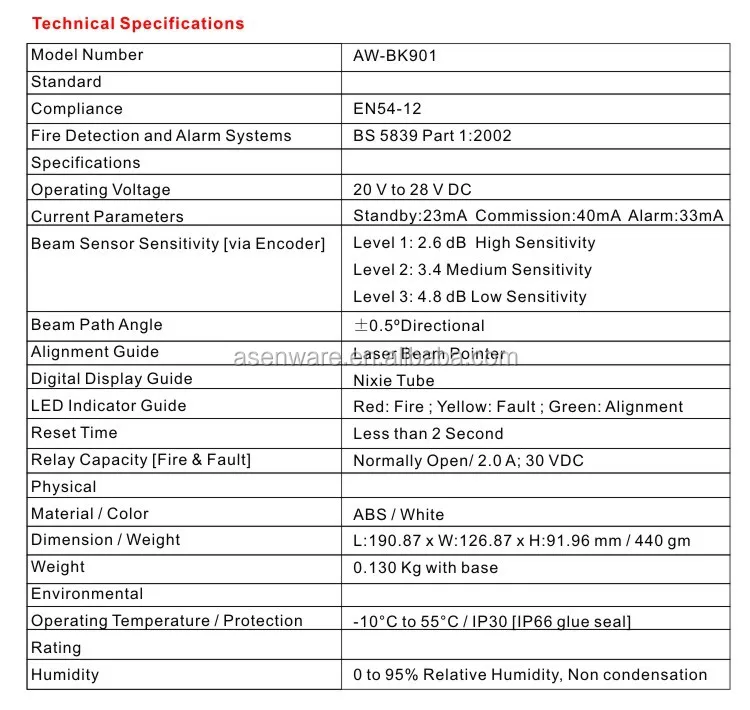

 Parameters







Accessories



The following accessories are included in the package

1.     Four plastic expansion bolts

2.     Two M4*12*10 three combination cross recessed pan head screws.

3.     Four ST4*30 tap cross recessed pan head screws.

4.     Mounting Bracket

5.     Opaque/Translucent   Material

6.     Six Æ4 flat washers.

7.     Magnetic Tool





Our Services



1)Sample oder is welcomed to test the quality.

2 ) Flexible technicals adjusting as per customer" s special request.

3) Answer your enquiries, questions and emails in 24 hours

4) Direct control on material, testing, quality, leadtime etc.





Packaging & Shipping
