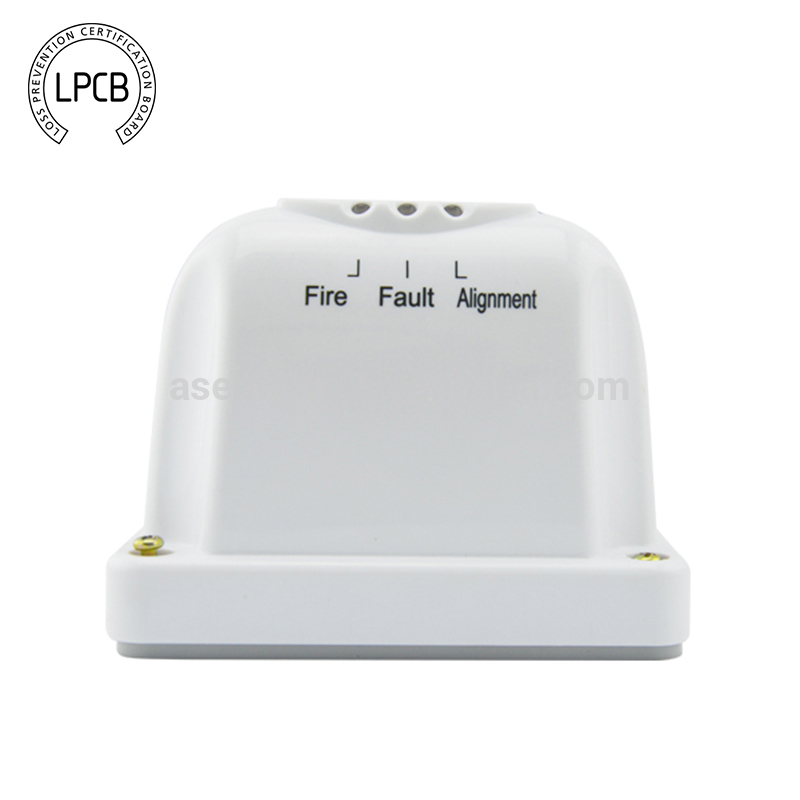

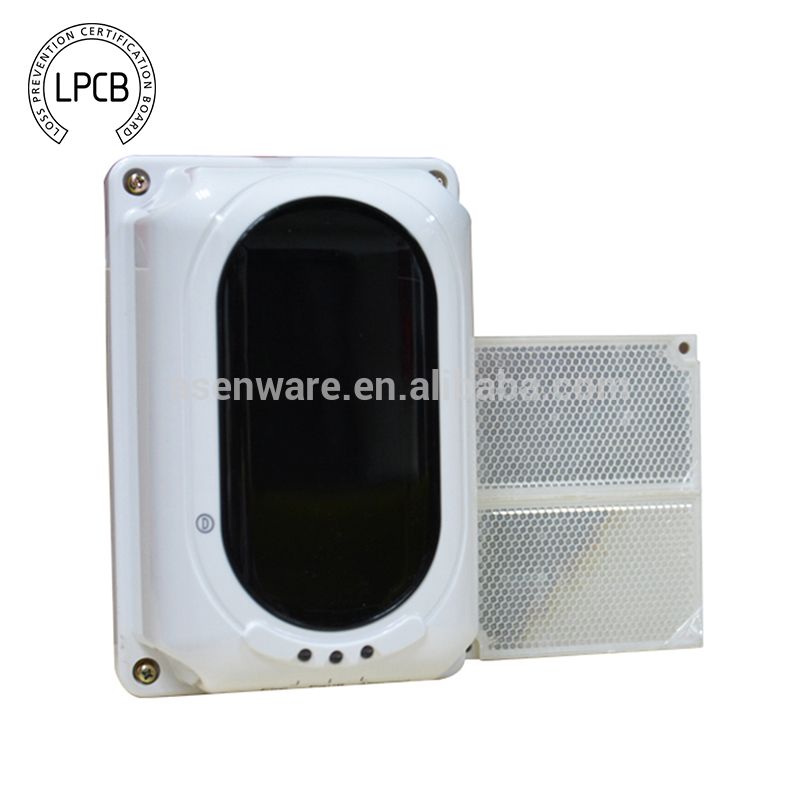

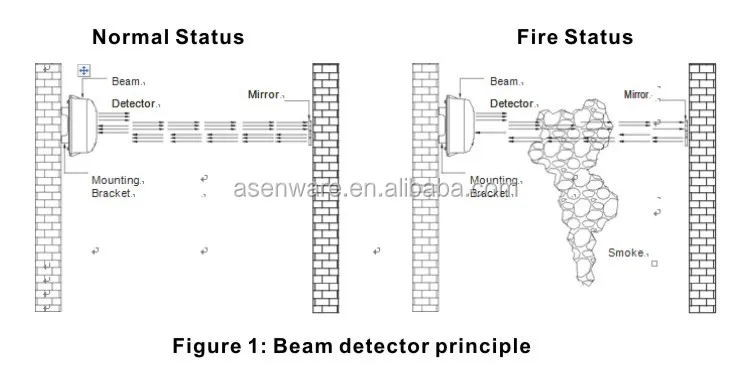

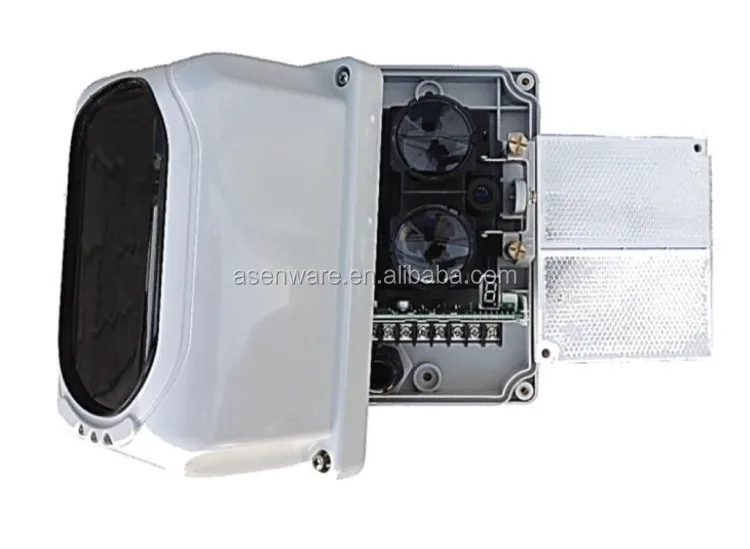

AW-BK901 Conventional Reflective Beam Detector has built-in laser beam pointer and digital guide display for real user-friendly alignment method. The Laser beam pointer accurately points the exact location where to mount mirror and with additional digital guide display allows to monitor and guide on the actual light intensity between the mirror and detector which cannot be seen by our naked eye making it more easy and convenient in alignment commissioning.
The AW-BK901 has an ideal usage for high ceiling and wide areas such as warehouses,large storages, shopping malls, leisure centres, exhibition halls, hotel lobbies, printing houses, garment factories, museums and prisons, as well as places where slight smoke particles or corrosive gas exist.
Feature and Benefits
1. Manufacturing in compliance with EN54-12
2. Hassle free alignment, built with digital guide display and laser beam pointing
3. Employ single-ended design through reflective mirror.
4. Four ranges wide monitoring from 8-100 meters via encoder
5. Three users programming sensitivity adjustment
6. Built-in microprocessor
7. Self-diagnostic function to monitor internal faults
8. Automatic compensation for factors weakening received signals, such as dust intruder, positional movement and aging of the transmitter.
9. Fire and Fault interfacing relays
10. Attractive and pleasing appearance
11. Special user-friendly alignment method
Technical Specifications
| Model Number | AW-BK901 |
| Standard | |
| Compliance | EN54-12 |
| Fire Detection and Alarm Systems | BS 5839 Part 1:2002 |
| Specifications | |
| Operating Voltage | 20 V to 28 V DC |
| Current Parameters | Standby:23mA Commission:40mA Alarm:33mA |
| Beam Sensor Sensitivity [via Encoder] | Level 1: 2.6 dB High Sensitivity Level 2: 3.4 Medium Sensitivity Level 3: 4.8 dB Low Sensitivity |
| Beam Path Angle | ±0.5ºDirectional |
| Alignment Guide | Laser Beam Pointer |
| Digital Display Guide | Nixie Tube |
| LED Indicator Guide | Red: Fire ; Yellow: Fault ; Green: Alignment |
| Reset Time | Less than 2 Second |
| Relay Capacity [Fire & Fault] | Normally Open/ 2.0 A; 30 VDC |
| Physical | ABS / White |
| Material / Color | L:190.87 x W:126.87 x H:91.96 mm / 440 gm |
| Dimension / Weight | 0.130 Kg with base |
| Weight | |
| Environmental | -10°C to 55°C / IP30 [IP66 glue seal] |
| Operating Temperature / Protection | |
| Rating | |
| Humidity | 0 to 95% Relative Humidity, Non condensation |
