Network Analog 2-wire LCD Addressable Fire Security Detection Alarm 324-point Monitoring Panel

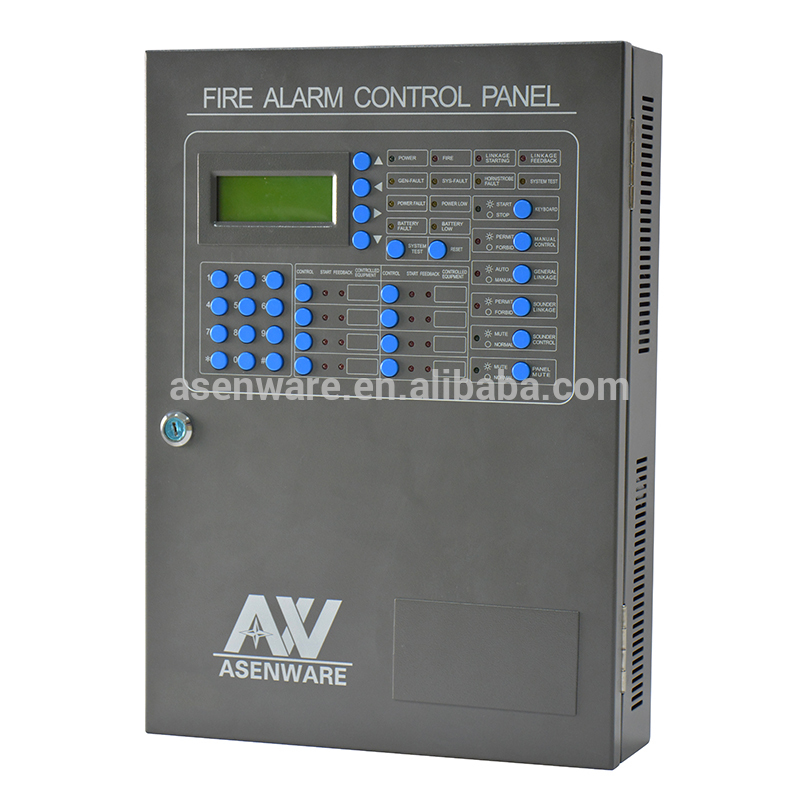

The AW-AFP2100 fire alarm control panel (linkage type) (fire alarm control panel) is a new
generation product launched by Fanhai Sanjiang. In order to adapt to the needs of engineering
design, the fire alarm control panel is designed with a linkage control function that enables it to
be flexibly used with other related products from Fanhai Sanjiang to form a fire alarm and
linkage integrated control system. It is particularly suitable for applications in large and
medium-sized fire alarm and linkage integrated control systems.
The fire alarm and linkage control system is extensively applied in high-grade office
buildings, big residence communities, department stores, gymnasiums, exhibition halls, libraries,
factory buildings, supermarkets, hotels and other large and medium-sized fire protection
projects.
System characteristics
It adopts new generation high-speed microprocessor technology that has a data processing
speed and a data storage capacity 100 times and 1000 times higher than that of conventional
technology respectively.
It has a 7.4″16-grey-scale LCD Chinese-supporting display and with a display resolution of
640×480.
Its operating interfaces simulate the menus and interfaces of Windows and therefore ensure
operation habits similar to that of computers and is easy to learn
It uses a flexibly and conveniently controllable standard PS/2 computer keyboard and mouse
as on-site programming devices
It provides a Chinese Pinyin input method and a Chinese section-position code input method
and can therefore realize Chinese input freely and easily
It can copy or restore both setting files and historical files through a CF intelligent storage
card (optional), making system maintenance convenient

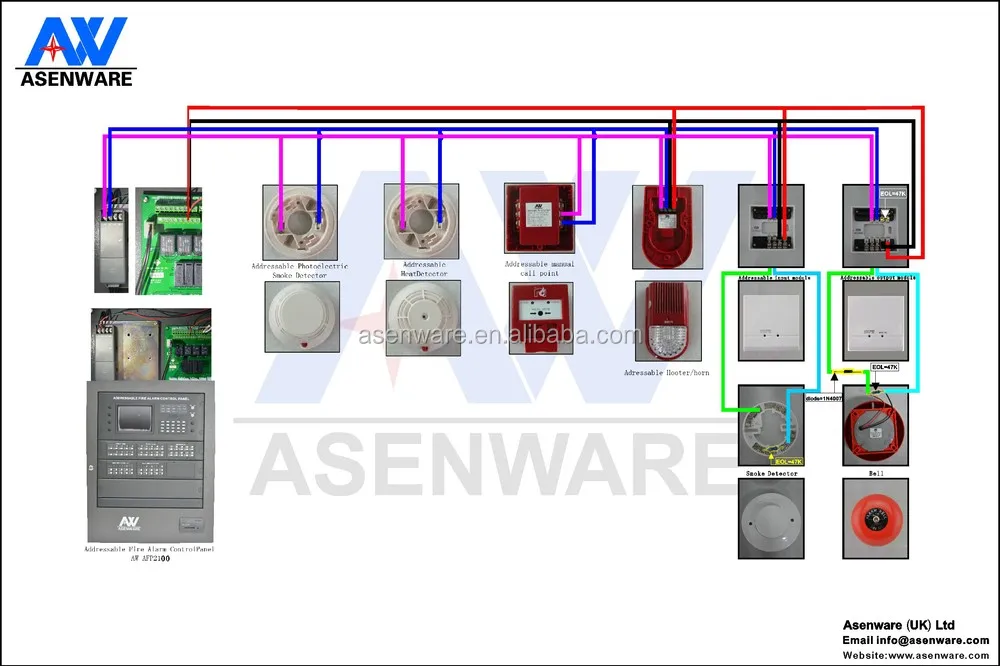

It adopts a non-polarity two-bus intelligent alarm linkage mode and has a total of 324
intelligent detectors or modules for a single circuit. The addresses of the intelligent detectors
or modules may be hashed with No.1 to No.324
It is equipped with multiple high-speed CAN-bus interfaces, ensuring quick and reliable data
transmission
It has super high single-machine capacity (maximum single-machine capacity: 40×2×324=25,920 alarm points).
It supports the networking of 20 AW-AFP2100 (JB-QTL-9000) fire alarm control panels. It has
a maximum capacity of 518,400 alarm points (20×25,920) after networking
It can be connected with a multi-line linkage control unit and has a maximum capacity of
4,000 points for a standalone linkage control unit.
It can store the historical information of system operation, including 1,000 pieces of historical
fire alarm information, historical request information, historical feedback information,
historical fault information and historical operation information respectively
Users can customize the equipment type, making system integration convenient
It introduces the concept of a virtual interface board to realize the linkage operations of
general semantics, thus realizing the most complicated system linkage relations easily
It has manual single-point start and stop functions for modules, making on-site debugging
and tests convenient.
