Electric bell alarm shows:
Electric bell alarm specification:
Model No. | Diameter | Work voltage | Work current @ 24VDC | Volume(dB) |
AW-CBL2166-A-4 | 4” (100mm) | DC6V DC12V DC24V AC110V AC230V | 25 mA | 85 |
AW-CBL2166-A-6 | 6”(150mm) | 95 | ||
AW-CBL2166-A-8 | 8”(200mm) | 97 | ||
AW-CBL2166-A-10 | 10”(250mm) | 100 |
Electric bell alarm introductions:
1. Install the fire bell in the whole fire alarm system, it could give people auditory alarm signal.making voices, warning people that fire occurs, at the early fire stage.
2. Monitoring the site fire safety situation, combined together with other monitoring device as detectors. to keep the site safety.

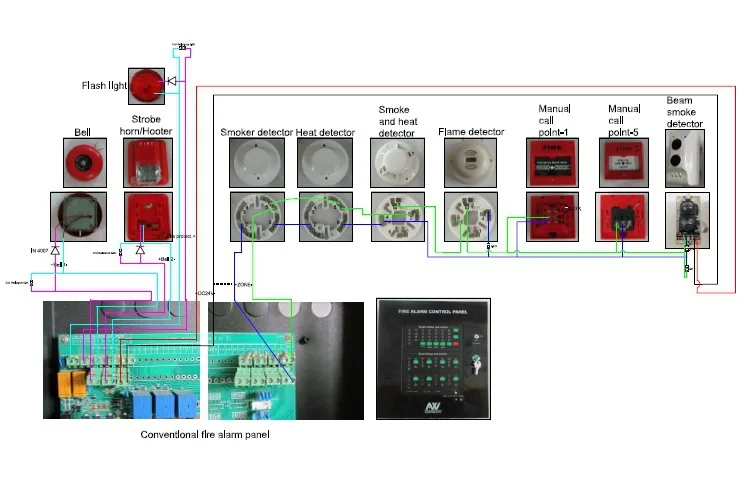

Electric bell alarm systen
The conventional fire alarm control system 2166 series matched the below detectors and accessories:
1. AW-CSD311:conventional photoelectric smoke detector
2. AW-CTD805: conventional heat detector
3. AW-CSH202:conventional smoke and heat combind detector
4. AW-CMC2166: conventional manual call point
5. AW-CSS2166-2: conventional hooter/horn
6. AW-CBL2166-A: conventional fire bell
7. AW-CBL2166: conventional flash light
8. AW-CBL2166: flash light
Company
Our company is a professional fire alarm system & relevant accessories manufacturer in China for many years.With updated machinery and skilled staffs we have supplied stable high quality products to customers all over the world.
Our experianced engineers and exporting team will answer your inquiry or email at the first time,and providing professional service from products visiting,ordering to deliver goods and after-sales service,
In the same time, we also can provide professional technical solutions for you item even can arrive your country.The aim is to saving your precious time and cost
Exhibition room
Factory
Certificate

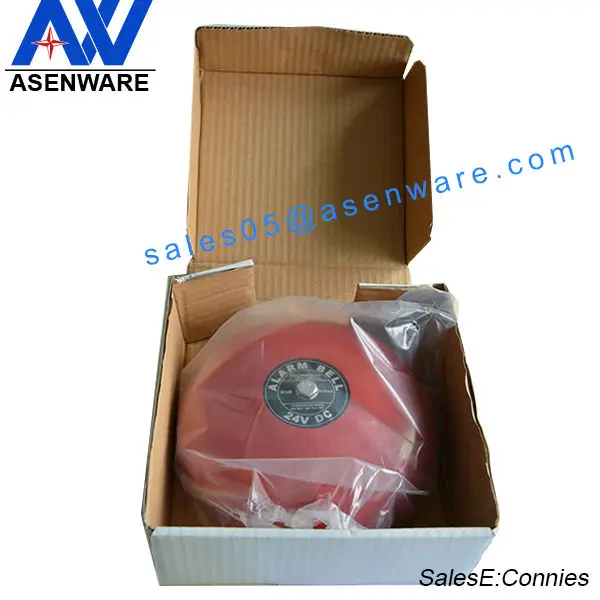

Packing
Shipping
FAQ
| Fire bell |
| 1.MOQ: 1 pcs |
| 2.Delievry time :generally 2 to 7 days .Mass product about 15 days. |
| 3.Payment terms :T/T L/C or Western union. |
4.Warranty :1 year |
| 5.Technical support :yes |
| 6.After sale service: yesal f |
