24V Fire Alarm Bell Buzzer
Fire Alarm Bell Buzzer Introduction:
The fire alarm bell is automatic fire alarm and audio output device in the system.When fire happen, the fire alarm system by the output control module starts the alarm, it is ringing alarm signal to alert people to pay attention to the fire.
Fire Alarm Bell Buzzer
When a fire occurs, smoke in the air contained in the particle concentration and the ambient temperature exceeds the standard fire alarm set value, the sensor information will be dangerous to the host, then alarm bells ringing.
Fire Alarm Bell Buzzer Specification:
Model No. | Diameter | Work voltage | Work current @ 24VDC | Volume(dB) |
AW-CBL2166-A-4 | 4" (100mm) | DC6V DC12V DC24V AC110V AC230V | 25 mA | 85 |
AW-CBL2166-A-6 | 6"(150mm) | 95 | ||
AW-CBL2166-A-8 | 8"(200mm) | 97 | ||
AW-CBL2166-A-10 | 10"(250mm) | 100 |

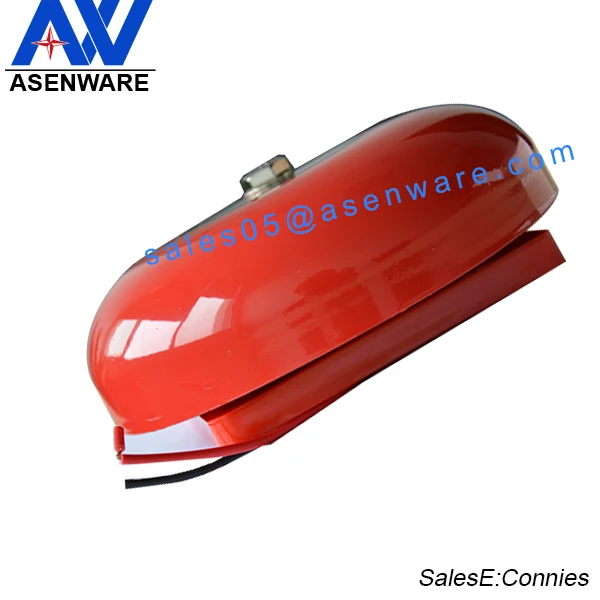

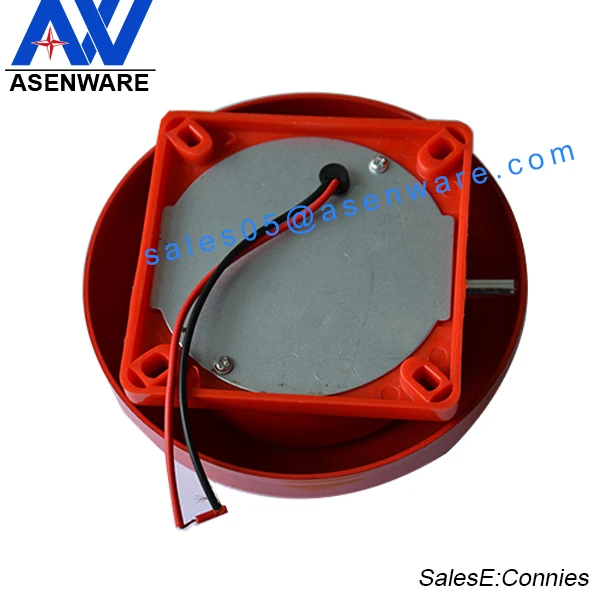

Fire Alarm Bell Buzzer Picture:
The conventional fire alarm control system 2166 series matched the below detectors and accessories:
1. AW-CSD311:conventional photoelectric smoke detector
2. AW-CTD805: conventional heat detector
3. AW-CSH202:conventional smoke and heat combind detector
4. AW-CMC2166: conventional manual call point
5. AW-CSS2166-2: conventional hooter/horn
6. AW-CBL2166-A: conventional fire bell/buzzer
7. AW-CBL2166: conventional flash light
8. AW-CBL2166: flash light
