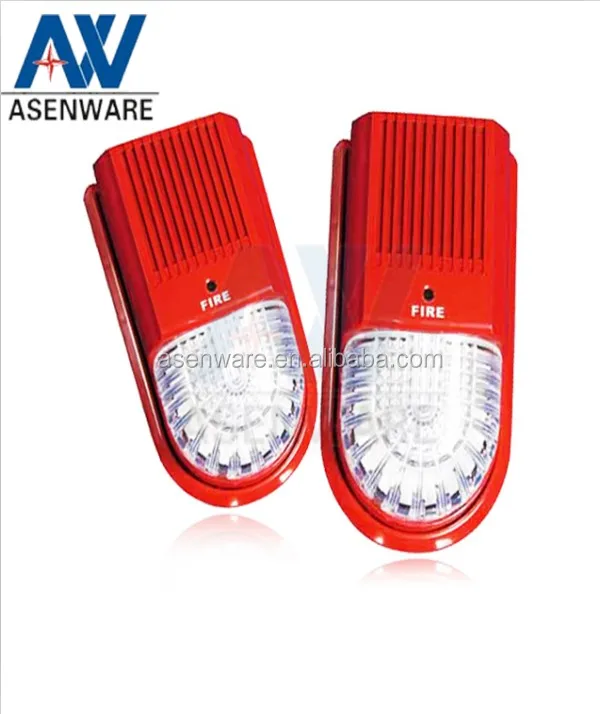

Addressable 120v alarm siren
| Name | Addressable hooter/horn |
| Model NO | AW-ASS2188 |
Parameter: 2. Operating voltage: DC24V (pulse modulation) 3. Quiescent current: ≤1mA (the current consumed by the bus) 4. Operating environment: Temperature: -10°C~+55°C; relative humidity: ≤95% (40°C, without condensation) 5. Alarm volume: >85dB (measured at a place 3m in front of the hooter/horn) 6. Coding method: Electronic coding 7. Alarm current: ≤120mA@DC24V 8. Flushing rate: one time/s 9. Wiring method: Four-wire system, non-polarity two signal buses (L1, L2) and power lines (+24V, GND) | |

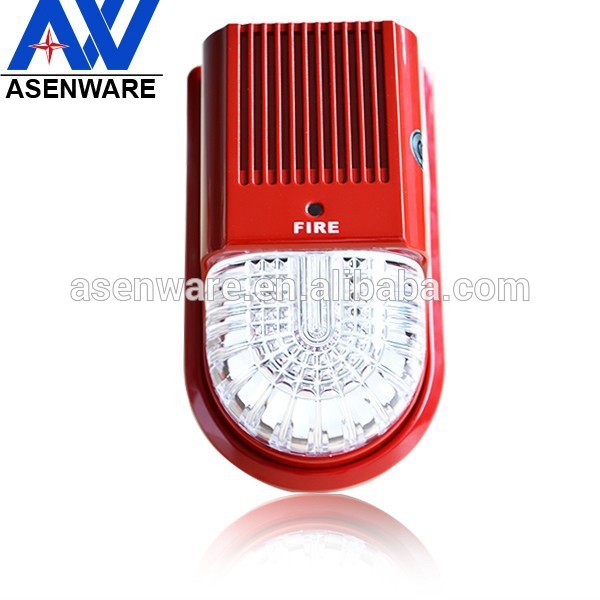

Addressable Strobe Horn| Strobe hooter|Strobe Siren Overview
1. The horn strobe is controlled by a microprocessor, the hooter/horn can realize real-time communication with a bus-type fire alarm control unit and receive the control commands sent by it.
2. When in a routine inspection, the red status indicator will blink;
after an accident happens, the red status indicator will remain lit and the hooter/horn will give a flashing signal, thus an audible alarm signal to notify the persons on the scene of the accident that a fire has occurred on the site , preventing the fire accident from becoming a major one.
3. The hooter/horn may be restored to the monitoring status after the MUTE or RESET key on the bus-type fire alarm control unit is pressed.
As pics shows:
Shenzhen Asenware Test And Control Technology Co., Ltd was set up in 2006, our headquarters is in London of UK. Now Asenware is an international group company in BMS and NDT industries.
We are a technology oriented company that devotes to NDT(Non Destructive Test) and BMS(Building Management System) industries.
We have two factories : one factory is in Shenzhen city for BMS products, and the another is in Dandong city for NDT X-ray products.
In our BMS factory, we produce addressable and conventional fire alarm system, CCTV camera and DDC controller.
In our NDT X-ray factory, we produce portable and mobile NDT X-ray flaw detectors, X-ray analysis equipment and the dark room accessories.
We have an experienced R&D team to design special electric product for test and control usage.
We have been striving to provide customers with satifying service before, during and after sales.
Payment terms :T/T L/C Western union .
Delievry time :usually about 2 to 5 days .Mass product about three weeks .
Warranty :one year
Certificate :CE LPCB ISO9001
Technical support :yes
