Home > Products > Addressable fire alarm strobe sounder horn strobe sound light siren 24v

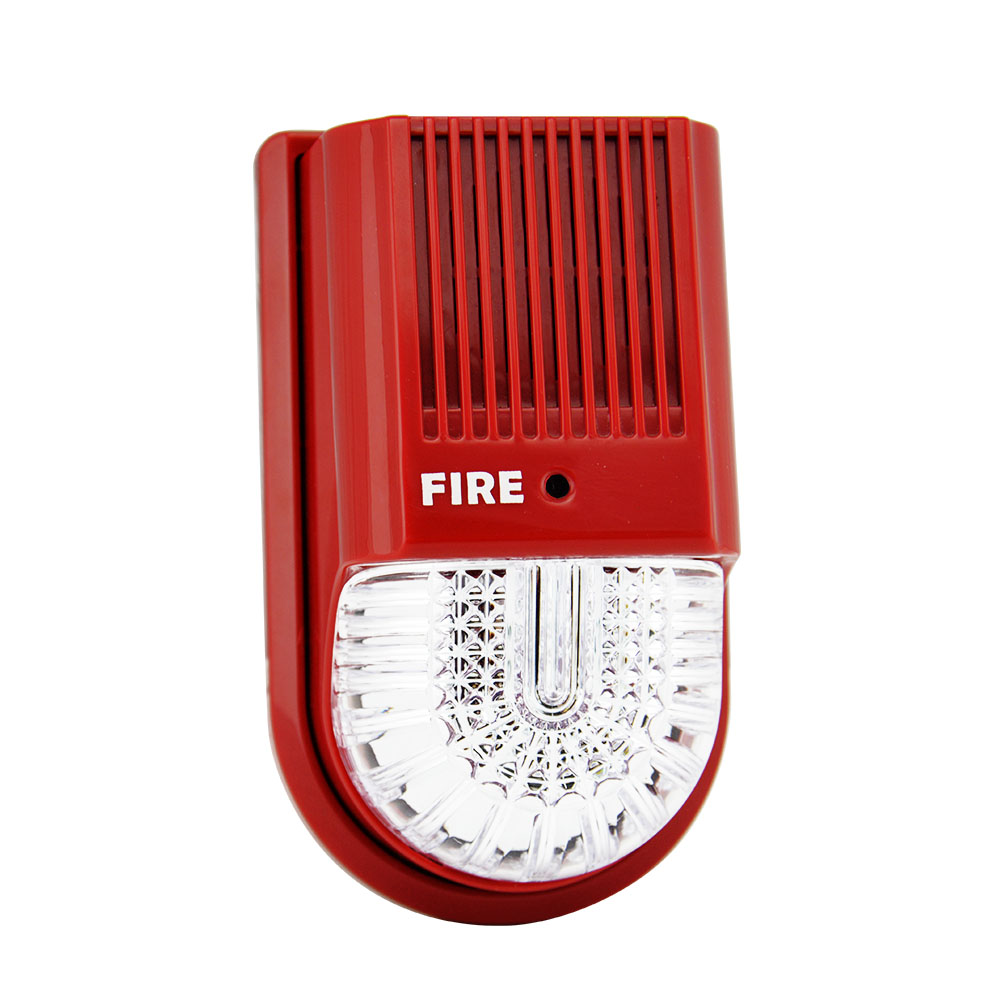

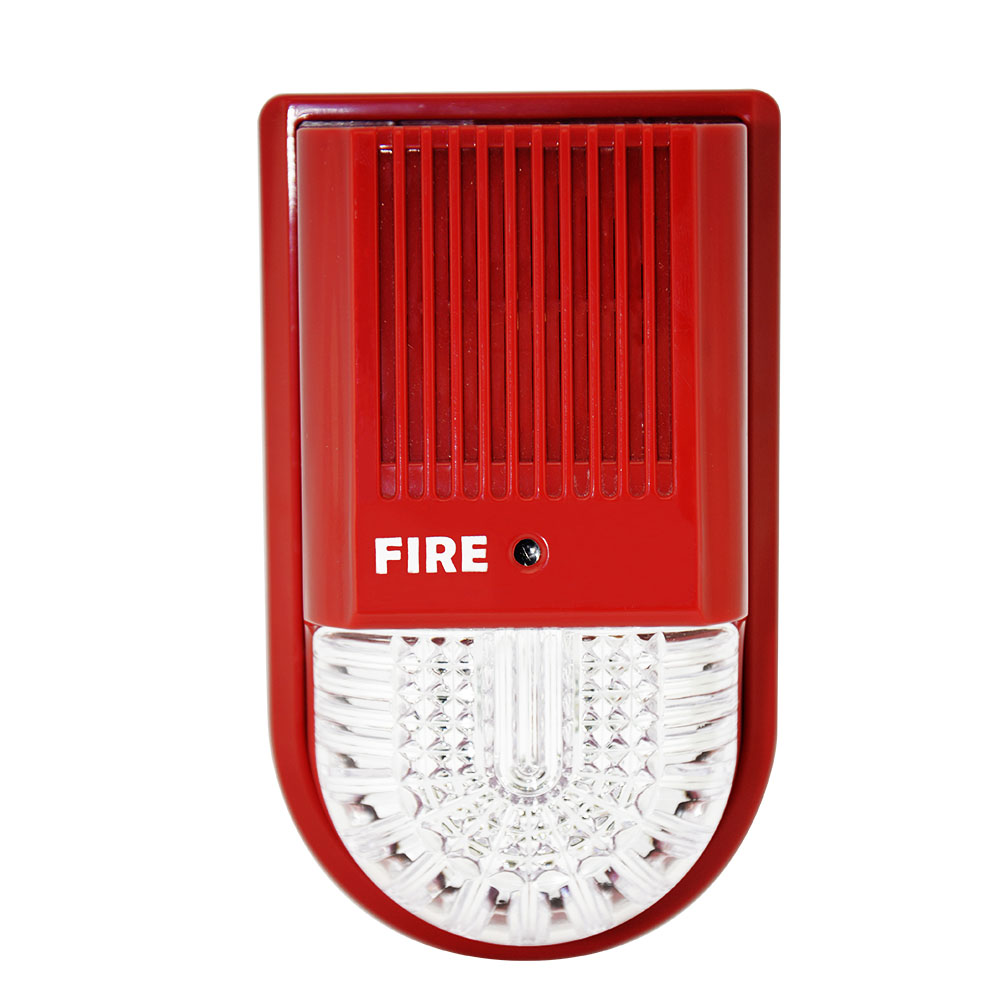

Addressable fire alarm strobe sounder horn strobe sound light siren 24v

Click on the image to view the original image

Product：	views：4Addressable fire alarm strobe sounder horn strobe sound light siren 24v
Branch：	Asenware
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 03:14

Product Details

Overview

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Asenware

Model Number:: ASS2188

Name:: alarm siren 24v

Executive standard:: GA385- 2002

Operating voltage:: DC24V

Alarm current:: ≤120mA@DC24V

Quiescent current:: ≤1mA (the current consumed by the bus)

Flushing rate:: one time/s

Coding method:: Electronic coding

Wiring Method:: Four wire system

Design:: OEM/ODM

Certificates:: CE Rohs ISO9001

Supply Ability

Supply Ability:: 500000 Unit/Units per Month

Packaging & Delivery

Packaging Details: PP Bag per Set to protect/Carton Box outside

Port: Shenzhen or Hongkong

Addressable alarm siren 24v

Name

Addressable hooter/horn

Model NO

AW-ASS2188

Parameter:
1. Executive standard : GA385- 2002

2. Operating voltage: DC24V (pulse modulation)

3. Quiescent current: ≤1mA (the current consumed by the bus)

4. Operating environment: Temperature: -10°C~+55°C; relative humidity: ≤95% (40°C, without condensation)

5. Alarm volume: >85dB (measured at a place 3m in front of the hooter/horn)

6. Coding method: Electronic coding

7. Alarm current: ≤120mA@DC24V

8. Flushing rate: one time/s

9. Wiring method: Four-wire system, non-polarity two signal buses (L1, L2) and power lines (+24V, GND)
10. Matched host machine: fire alarm control panel (such as AW-AFP2188)

Our Services

Addressable Strobe Horn| Strobe hooter|Strobe Siren Overview

1. The horn strobe is controlled by a microprocessor, the hooter/horn can realize real-time communication with a bus-type fire alarm control unit and receive the control commands sent by it.

2. When in a routine inspection, the red status indicator will blink;

after an accident happens, the red status indicator will remain lit and the hooter/horn will give a flashing signal, thus an audible alarm signal to notify the persons on the scene of the accident that a fire has occurred on the site , preventing the fire accident from becoming a major one.

3. The hooter/horn may be restored to the monitoring status after the MUTE or RESET key on the bus-type fire alarm control unit is pressed.

Packaging & Shipping

As pics shows:
