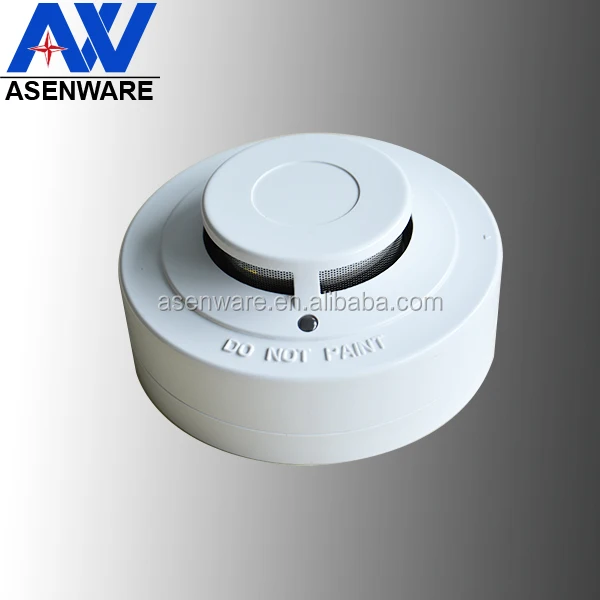

Conventional smoke detector with relay output
Description
AW-CSD311 is photo-electronic detector using a state-of-the-art optical sensing chamber. This detector is designed to provide open area protection and to be used with most conventional fire alarm control panel.
Features
1. Strong Adaptability For Circumstance
2. SMT Design, High Stability
3. 40-60vdc Wide Voltage Operating Range
4. Low Standby Current
5. Power Supply Non-Polarized input
6. Twin Led For 360 Visual
7. Flashing Led Power Indicator
8. Remote Led Indicator Output(2-Wire)
9. Metal Shield. Anti-Electromagnetic Interference
| Item | Parameters |
| Operating Voltage Range: | 9 to 32 VDC Volts Non-polarized |
| Standby Current: | ≤100μA @ 24 VDC |
| Maximum Alarm Current (LED on: ) | ≤55mA @ 24 VDC |
| Operating Humidity Range: | 10% to 93% Relative Humidity, Non-condensing |
| Operating Temperature Range: | 14°F to 120°F (-10°C to 49°C) |
| Adjustable Sensitivity: | 1-2.5%/FT |
| Height: | 2.2(55 mm) installed in Base |
| Diameter: | 4.0(103 mm) |
| Weight: | 5.5 oz. (155 g) |

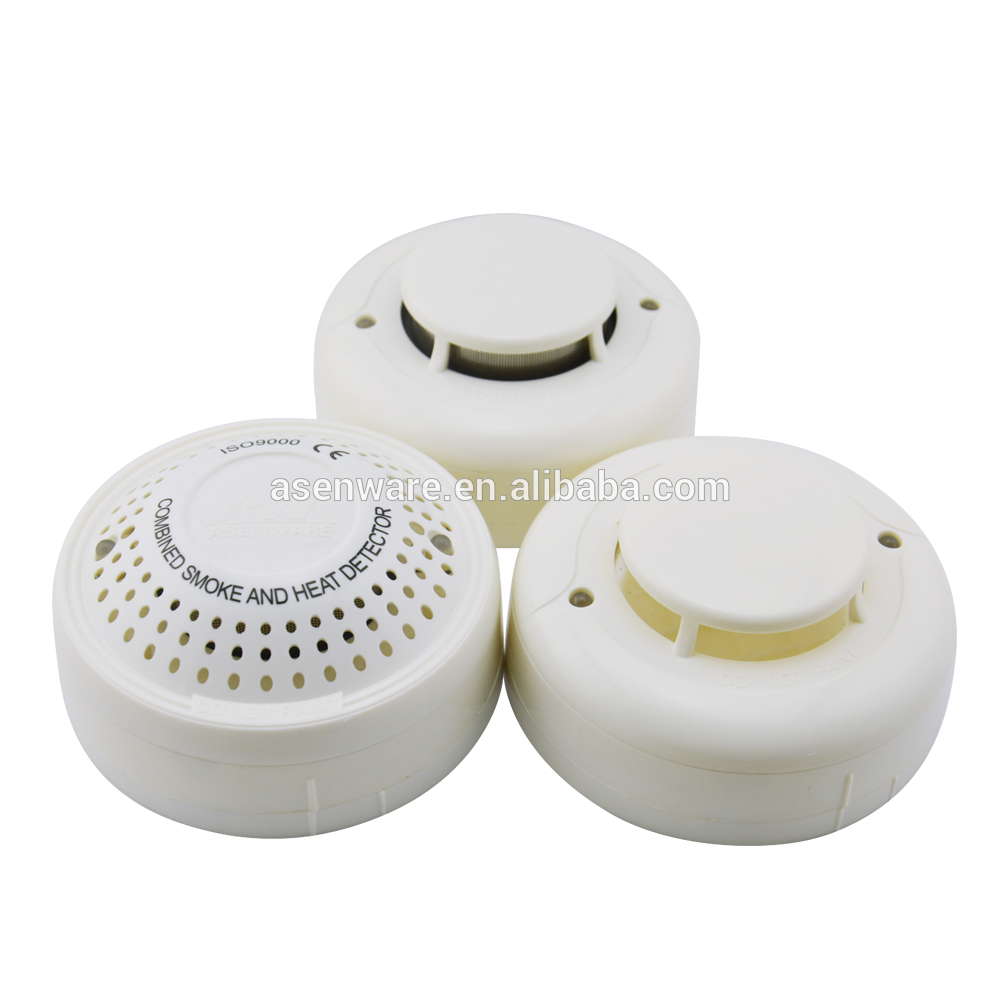

Pictures showing details of the Fire Prevention Cigarette Smoke Detector
Packaging : Cigarette Smoke Detector: PP Bag per Set to protect/Carton Box outside .
Shpping :UPS FEDEX EMS DHL negotiable for shpping addressable fire alarm system .
Safety Cigarette Smoke Detector Basic Introduction
1.-- Models AW-CSD311 is photoelectronic detector uses a state of-the-art optical sensing chamber.
2.--This detector is designed to provide open area protection and to be used with most conventional
fire alarm control panel.
3.-- Two LEDs on each detector provide 360° visible alarm indication. They flash every 3~5 seconds
indicating that power is applied and the detector is working properly.
Payment terms :T/T L/C Western union .
Delievry time :usually about 2 to 5 days .Mass product about three weeks .
Warranty :one year
Certificate :CE LPCB ISO9001
Technical support :yes
