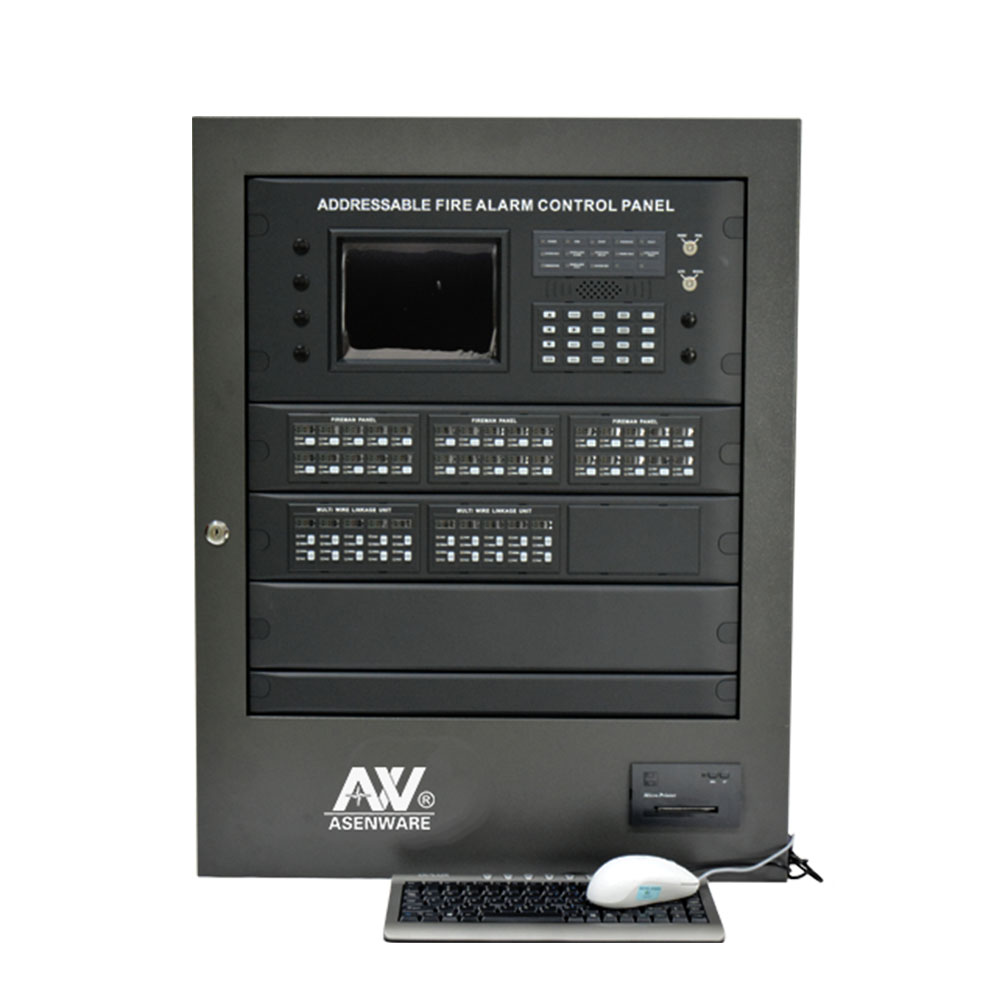

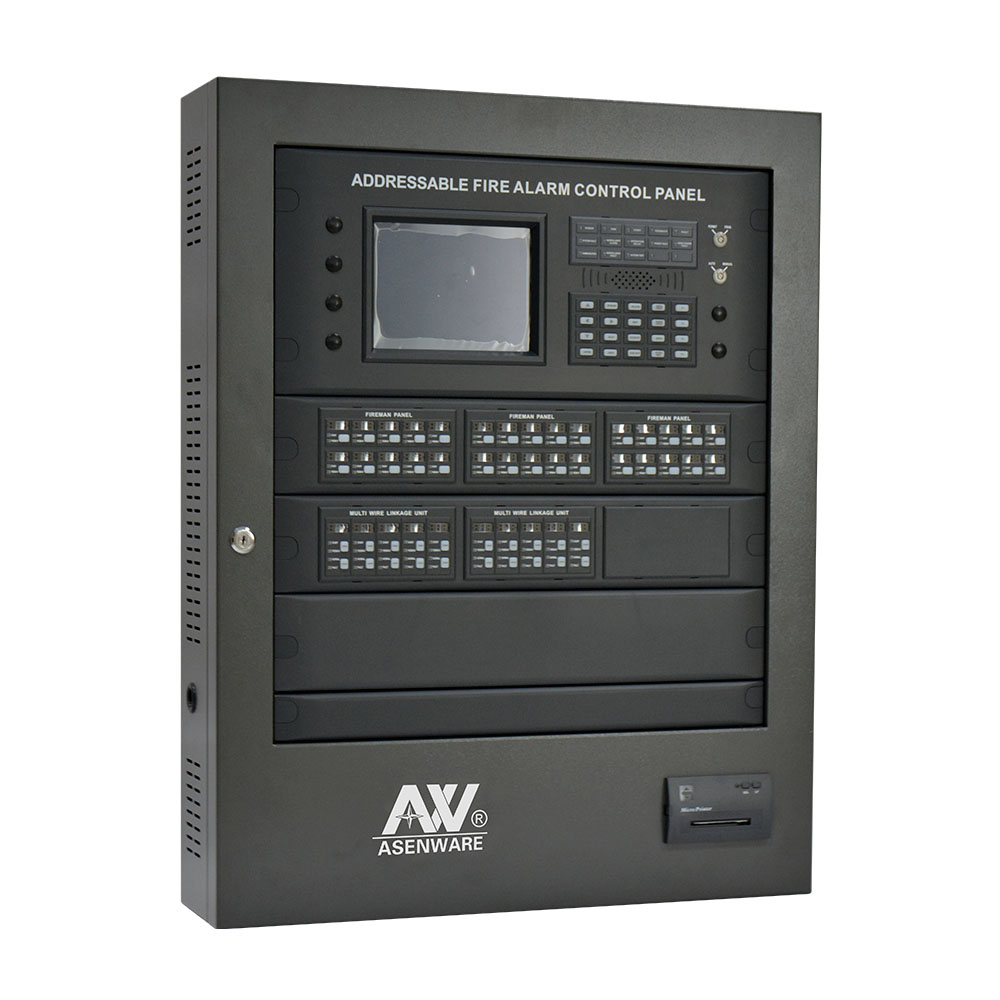

Addressable Intelligent security fire alarm control panels
Analog addressable gsm fire alarm system | |
Length | ≤1500m |
AC input voltage | AC 220V±20% 50Hz |
AC input power | 120w |
DC power | DC24V 5.0AH |
AW-AFP2100 system capacity
| 648 points .biggest capacity is 1992 points with three loop cards |
System working conditions | 1. Temperature: -10°C~+50°C 2.Humidity: ≤95% 3.Power supply: AC 220V 50HZ DC 24V 6A 4.Output contact capacity: AC 220V 1A DC 27.6V 3A |
Addressable fire detection system wire drawing show
Multifunction addressable fire detection system Model AW-AFP2100 . It is available in 2/ 4/6 loop versions Following on from the popularity of our Simplicity & Premier AD range of panels, the Premier Quatro includes more advanced cause & effect programming, and also includes a larger LCD display
The AW-AFP2100 is a new type of analog fire alarm control panel which has 648 alarm control points (detectors and modules which are characterized by fully mixed coding, non-polarity and two buses). It complies with the provisions of both Fire Alarm Control Units (GB4717-2005) and Automatic Control System for Fire Protection (GB16806-2006).
Addressable system addressable panel have the below detectors and accessories:
1. AW-ASD2188: addressable photoelectric smoke detector
2. AW-ATD2188: addressable fixed temperature heat detector
3. AW-ASH2188: addressable smoke and heat combined detector
4. AW-AMC2188: addressable manual call point
5. AW-ASS2188: addressable hooter/horn
6. AW-AIO2188-IN: addressable input module
7. AW-AIO2188-OUT: addressable out module
8. AW-CODERF900E: coder for setting address
9. AW-RP2188: repeater
The 2188 series is a economic , reliable, and user-friendly system
Addressable fire alarm system packaging and shpping
Packaging : Use carton to pack addressable fire alarm system well .
Shpping :UPS FEDEX EMS DHL negotiable for shpping addressable fire alarm system .
Our services
1.OEM ODM can be provided .
2.Technical support like how to install operate .Any question will be answer within 24 hours .
3.We have prfessional technical team to help customers solve technical problems .
4.Hotel project hospital factory fire alarm system project can be made .
Addressable fire alarm FAQ
Payment terms :T/T L/C Western union .
Delievry time :usually about 2 to 5 days .Mass product about three weeks .
Warranty :one year
Certificate :CE LPCB ISO9001
Technical support :yes
