Automatic Fire Extinguishing Control Panel/ Fire Extinguishing Equipment (AW-GEC2158)
The automatic extinguisher control panel is designed in accordance with European stan Automatic Fire Extinguishing Control Panel/ Fire Extinguishing Equipment (AW-GEC2158) dards EN54-2 and EN54-4 Fire Detection and Fire Alarm systems - Control and Indicating Equipment and EN12094-1 Fixed firefighting systems - Components for gas extinguishing systems - Part 1: Requirements and test methods for electrical automatic control and delay devices.

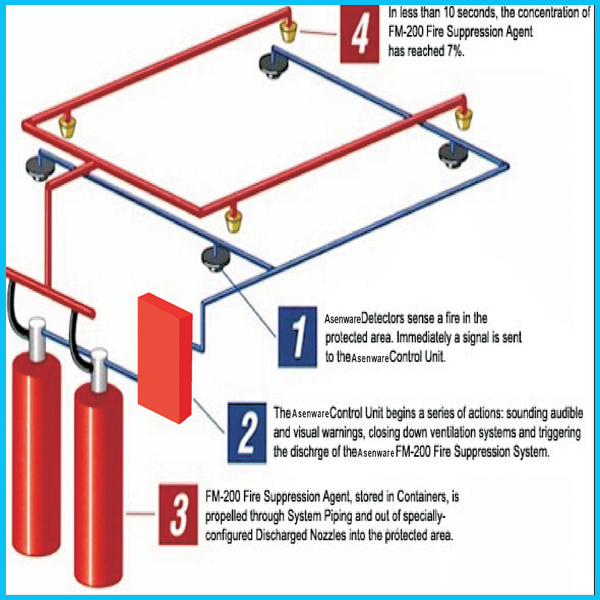

The control equipment is a combined fire alarm control panel and extinguish ing system and has three detection zones, any or all of which are capable of contributing to the extinguishant release decision. Control panels have an integral, mains powered battery charger and power supply designed in accordance with the requirements of EN54-4.

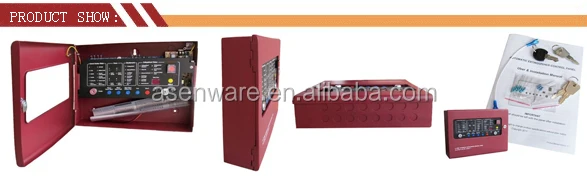

Automatic Fire Extinguishing Control Panel/ Fire Extinguishing Equipment (AW-GEC2158) show
Fire alarm extinguisher panel FM200 parameters
ITEM | ELECTRICAL RATING | COMMENT | |
Mains Supply | 90 to 270VAC, 50Hz/60H(100 Watts maximum) |
| |
Battery Type | Two 12 Volt sealed lead acid in series. | 7Ah maximum | |
R0V Output | Fused at 500mA with electronic fuse | 1.6Amp total load over all circuits | |
Sounder Outputs | 21 to 28V DC Fused at 500mA with electronic fuse |
| |
Fault relay contact rating | 5 to 30 VDC 1A Amp maximum for each | Volt free changeover contact | |
Local fire relay contact rating |
| Volt free changeover contact | |
First stage contact rating |
| Volt free changeover contact | |
Second Stage Contact Rating | 5 to 30 VDC 1A Amp maximum for each | Volt free changeover contact | |
Extract Contact Rating | 5 to 30 VDC 1A Amp maximum for each | Volt free changeover contact | |
No. of detection circuits | Four 21 to 28V DC |
| |
No. of sounder circuits | Thee 21 t0 28V DC | 2 X first stage, 1 X second stage |
Packaging : Use carton to pack addressable fire alarm system well .
Shpping :UPS FEDEX EMS DHL negotiable for shpping addressable fire alarm system .
Our services
1.OEM ODM can be provided .
2.Technical support like how to install operate .Any question will be answer within 24 hours .
3.We have prfessional technical team to help customers solve technical problems .
4.Hotel project hospital factory fire alarm system project can be made .
Shenzhen Asenware Test And Control Technology Co., Ltd, a leading Chinese fire alarm panel & relevant fire detector manufacturer (a technology oriented company).
We have 3 series fire alarm control systems with time-tested performance:
1. 2166 Series: Conventional fire alarm system with optional 1-32 zone panels.
2. 2188 Series: Addressable fire alarm system for middle fire project with optional 100/200/324 addresses.
3. 2100 Series: Addressable fire alarm control system for big fire project with minimum addresses starting from 648,648*2,648*N.
4.2158 series :fire extinguisher control panel /gas release /switch /manual station FM200 .
A professional and experienced R&D team will offer all-around technical support before, during and after sales, they can also provide professional technical solutions for your items, even arrive in customer’s country to direct projects personally. Our aim is to provide our customers with all-weather and all-around satisfying service.
Payment terms :T/T L/C Western union .
Delievry time :usually about 2 to 5 days .Mass product about three weeks .
Warranty :one year
Certificate :CE LPCB ISO9001
Technical support :yes
