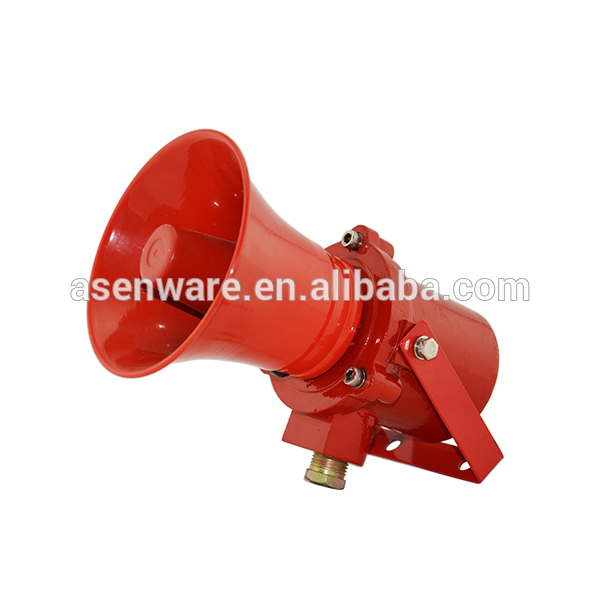

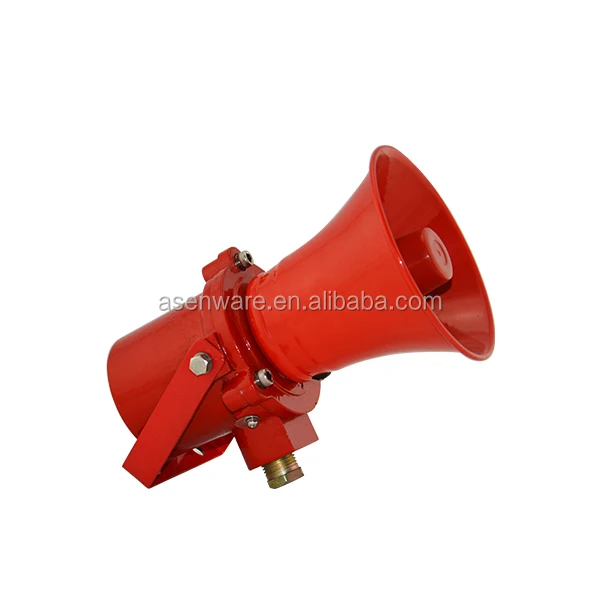

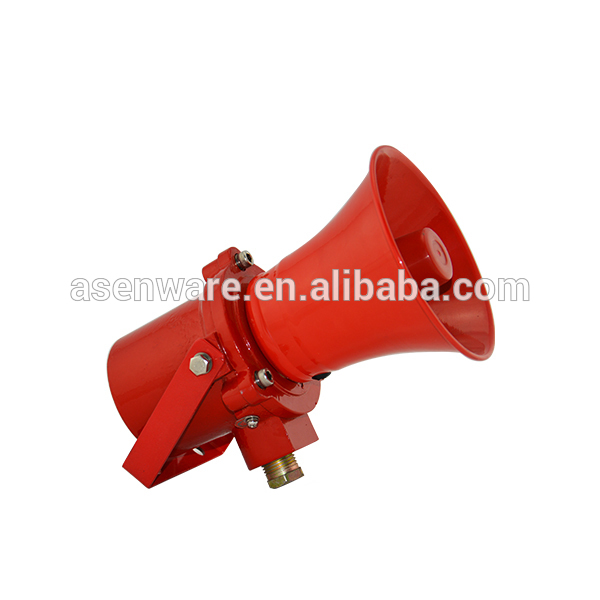

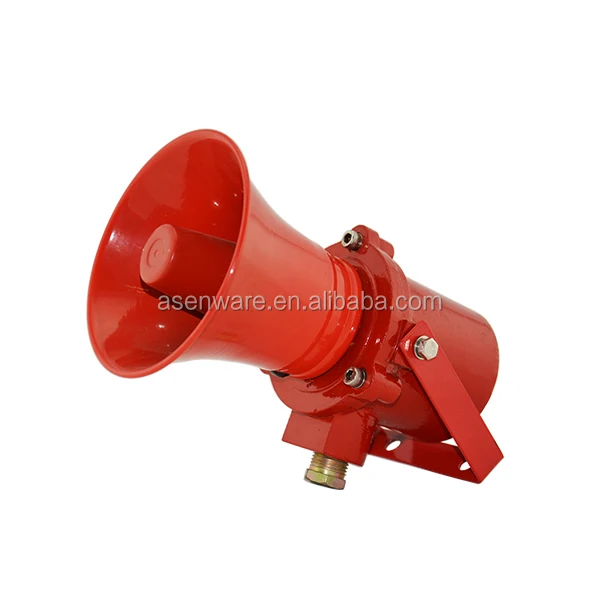

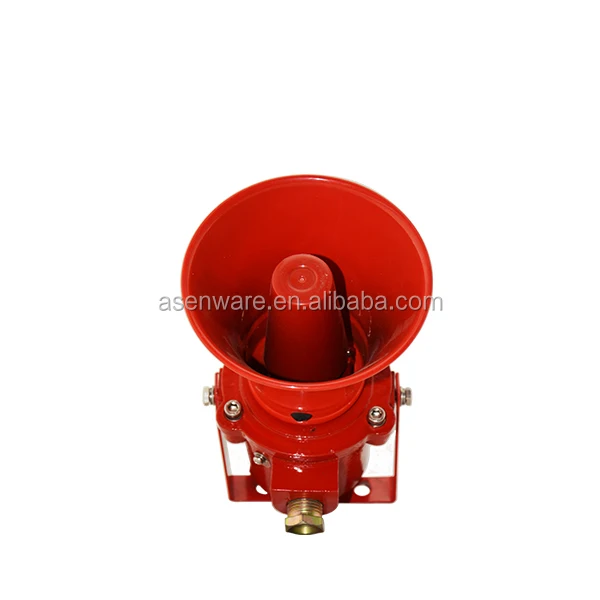

Explosion-proof Siren
Introduce
1.1 Name:Explosion-proof Fire Alarm Siren
1.2 Model No.:AW-DFJD-S
1.3 Size:200mm * 138mm * 138mm
1.4 Weight:1.6kg
1.5 Shell Material:Metal
1.6 Shell Color:Red
Description
Explosion-proof fire alarm siren fire alarm system is indispensable common equipment. When the scene of an accident or fire or other emergency, the control signals sent by the fire alarm controller activates the alarm circuit, audible and visual alarm signal to remind site personnel in order to achieve the purpose.
Working Principle
Driven by 24V DC explosion-proof fire alarm siren sounds an alarm built-in speaker.
Function
Explosion-proof fire alarm siren can be used in conjunction with manual alarm button, constitute a simple sound alarm system, at home and abroad can be any manufacturer supporting the use offire alarm controller.
Feature
5.1 Merit:
5.1.1. Easy to install, firm structure;
5.1.2. Has low power consumption, large volume, continuous work extremely long life
characteristics;
5.1.3. Perfectly configured in a variety of alarm systems;
5.1.4. Suitable for high temperatures, dangerous places explosive gas environments;
5.1.5. Sirens sound volume can be adjusted..
5.2 Defect:
5.2.1. Hearing impaired can not use and can not be evacuated
Technical Parameter
6.1 Operating Voltage: DC 24V
6.2 Standby Current: ≤600mA
6.3 Temperature Range: -20℃ ~ +50℃
6.4 Humidity Range: 0%~95%RH
6.5 Sound Pressure Level: 100~110dB
Connecting
RedWire Control Input + (DC 24V +)
Black Wire Control Input - (DC 24V -)
Packing
Item Parameters Unit
Weight 16 kg
Volume 205 * 280 * 700 mm
Quantity 10 pcs
