Addressable Fire Alarm System for Factory Project features
The AW-AFP2188 fire alarm detection system is type of analog fire alarm control panel which has 324 alarm control points (detectors and modules which are characterized by fully mixed coding, non-polarity and two buses). It complies with the provisions of both Fire Alarm Control Units (GB4717-2005) and Automatic Control System for Fire Protection (GB16806-2006).
1. Fire alarm control panel uses an AC-DC master-standby power supply system which will automatically change between the master and standby power supplies in the event of a power failure of either of the two power supplies to ensure uninterrupted operation of the system.
2. The AW-AFP2188 can be connected to a special mini-printer to realize real-time printing. The AW-AFP2188 can be connected to floor fire display panels to display fire alarms by standard RS-485
3. The AW-AFP2188 fire alarm control panel can be connected to ten multi-line linkage control/monitoring points to control and monitor important equipment.
Asenware addressable fire alarm system detailed show :
| Model NO. | AW-AFP2188-100/AW-AFP2188-200/AW-AFP2188-324 |
| Data processing | Collect data:through the internal microprocessors in the intelligent detectors and modulesto realize digital filtering and auto-compensation functions; |
| Power supply system | an AC-DC master-standby power supply system |
| Real-time printing | Support mini-printer |
| Equipment connection | Support ten multi-line linkage control/monitoring points to control and monitor important equipment. |
| Service Environment | factories, hospitals, restaurants, hotels, schools, business buildings, government buildings,etc. |
Fire alarm detection system wire drawing show
working condition parameters fire alarm detection system for building safety
| Temperature | -10°C~+50°C |
| Humidity | ≤95% |
| Power supply | AC 220V 50HZ DC 24V 6A |
| Output contact capacity | AC 220V 1A DC 27.6V 3A |
| DC power | DC24V 5.0Ah, two fully sealed maintenance-free DC12V 5.0Ah storage batteries connected in series |
| AC input voltage | AC 220V±20% 50Hz |
| AW-AFP2188 system capacity | 100/200/324 points (non-polarity, two wire bus, fully mixed coding) |

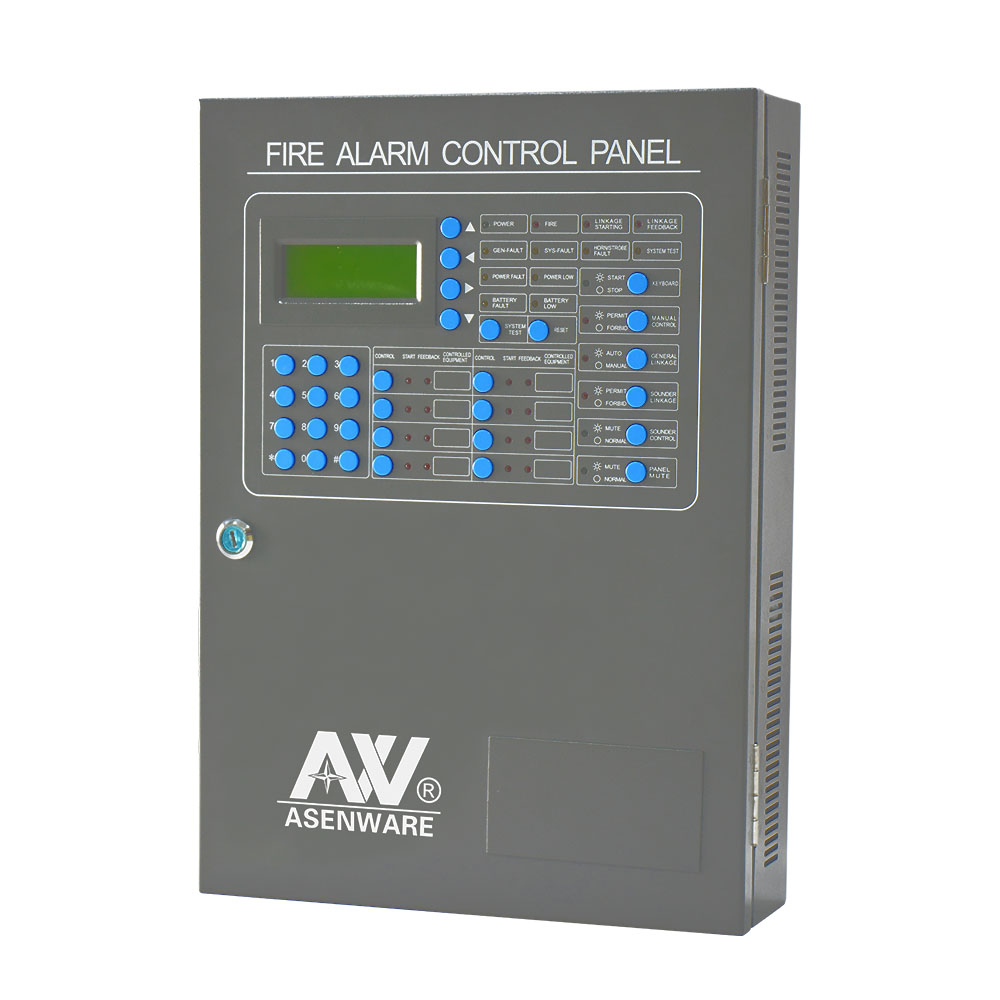

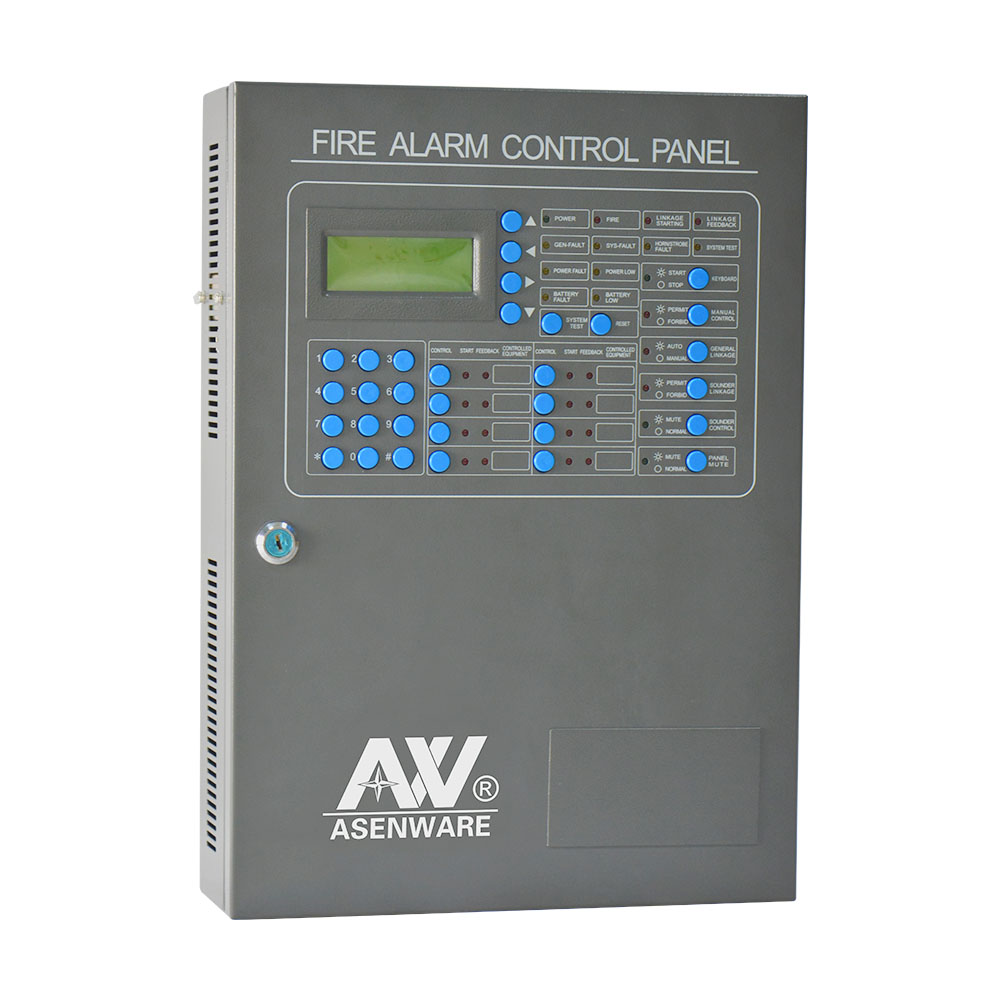

Addressable fire alarm system 2188 detailed picture show
Addressable fire alarm system addressable panel have the below detectors and accessories:
1. AW-ASD2188: addressable photoelectric smoke detector
2. AW-ATD2188: addressable fixed temperature heat detector
3. AW-ASH2188: addressable smoke and heat combined detector
4. AW-AMC2188: addressable manual call point
5. AW-ASS2188: addressable hooter/horn
6. AW-AIO2188-IN: addressable input module
7. AW-AIO2188-OUT: addressable out module
8. AW-CODERF900E: coder for setting address
9. AW-RP2188: repeater
The 2188 series is a economic , reliable, and user-friendly system.
Fire alarm detection system packaging and shpping
Packaging : Use carton to pack addressable fire alarm system well .
Shpping :UPS FEDEX EMS DHL negotiable for shpping addressable fire alarm system .
Our services
1.OEM ODM can be provided .
2.Technical support like how to install operate .Any question will be answer within 24 hours .
3.We have prfessional technical team to help customers solve technical problems .
4.Hotel project hospital factory fire alarm system project can be made .
1.Asenware was set up in 2006, and is a technology oriented company that devotes to NDT (Non Destructive Test) and BAC (Building Automatic Control) industries
2. We have an experienced R&D team to design special testing items or automatic control products
3. We have two factories: one factory is in Shenzhen for BMS products, and the other one is in Dandong for NDT X-ray products
Addressable fire alarm FAQ
Payment terms :T/T L/C Western union .
Delievry time :usually about 2 to 5 days .Mass product about three weeks .
Warranty :one year
Certificate :CE LPCB ISO9001
Technical support :yes
