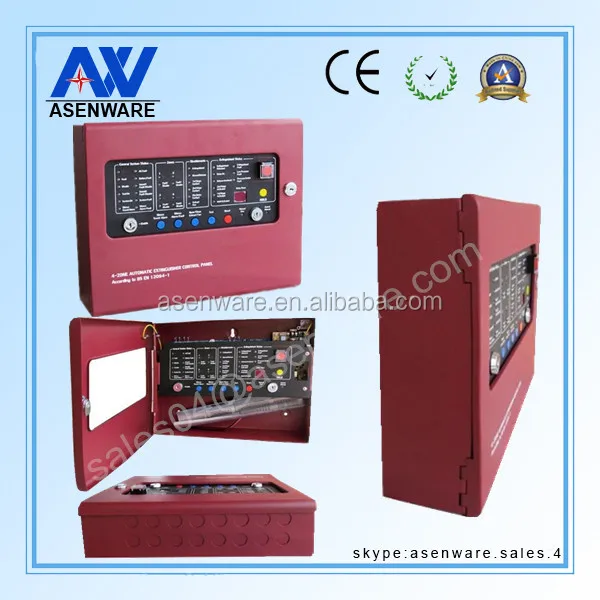

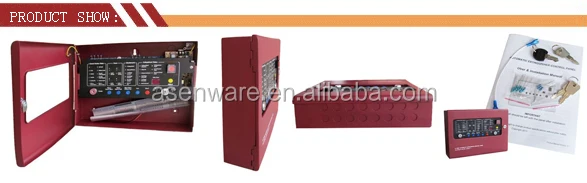

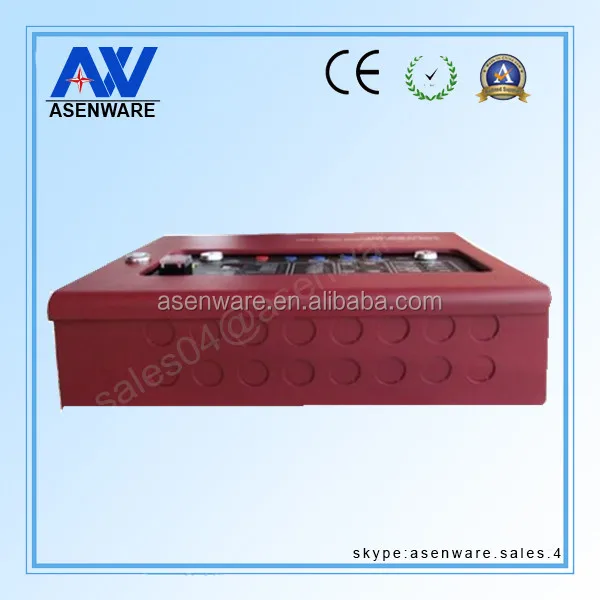

Fire Fighting Equipment Automatic Fire Extinguisher Panel
European standards EN54-2 and EN54-4 Fire Detection and Fire Alarm systems -
Control and Indicating Equipment and EN12094-1 Fixed firefighting systems -
Components for gas extinguishing systems - Part 1: Requirements and test
methods for electrical automatic control and delay devices.

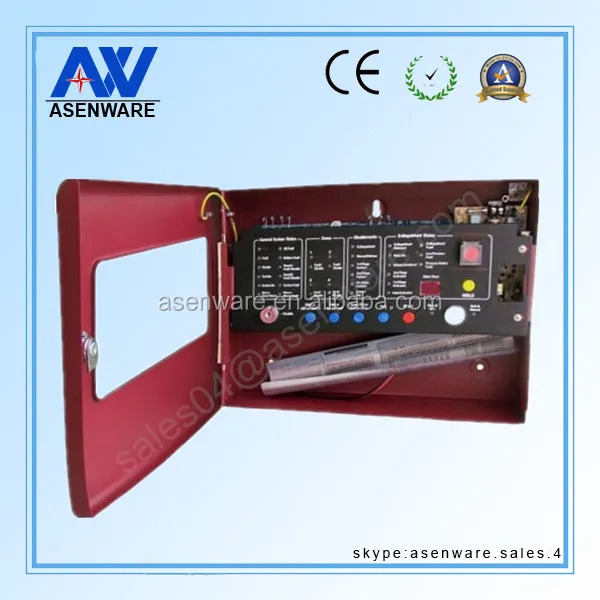

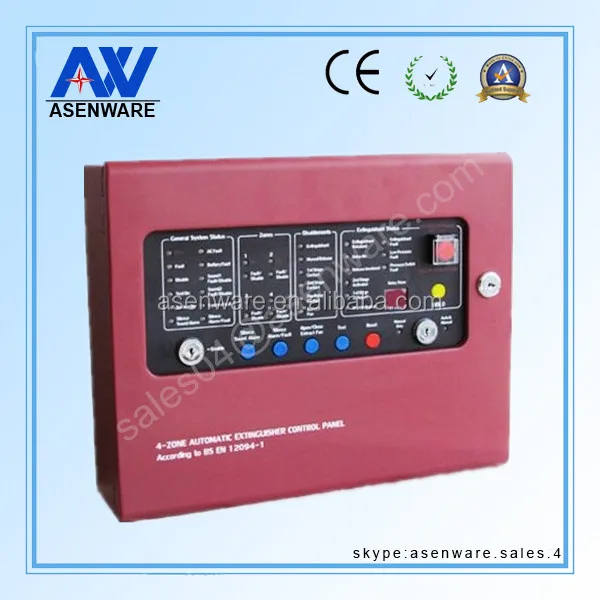

The control equipment is a combined fire alarm control panel and extinguish ing
system and has three detection zones, any or all of which are capable of
contributing to the extinguishant release decision.
Control panels have an integral, mains powered battery charger and power
supply designed in accordance with the requirements of EN54-4.
ITEM | ELECTRICAL RATING | COMMENT | |
Mains Supply | 90 to 270VAC, 50Hz/60H(100 Watts maximum) |
| |
Battery Type | Two 12 Volt sealed lead acid in series. | 7Ah maximum | |
R0V Output | Fused at 500mA with electronic fuse | 1.6Amp total load over all circuits | |
Sounder Outputs | 21 to 28V DC Fused at 500mA with electronic fuse |
| |
Fault relay contact rating | 5 to 30 VDC 1A Amp maximum for each | Volt free changeover contact | |
Local fire relay contact rating |
| Volt free changeover contact | |
First stage contact rating |
| Volt free changeover contact | |
Second Stage Contact Rating | 5 to 30 VDC 1A Amp maximum for each | Volt free changeover contact | |
Extract Contact Rating | 5 to 30 VDC 1A Amp maximum for each | Volt free changeover contact | |
No. of detection circuits | Four 21 to 28V DC |
| |
No. of sounder circuits | Thee 21 t0 28V DC | 2 X first stage, 1 X second stage |
