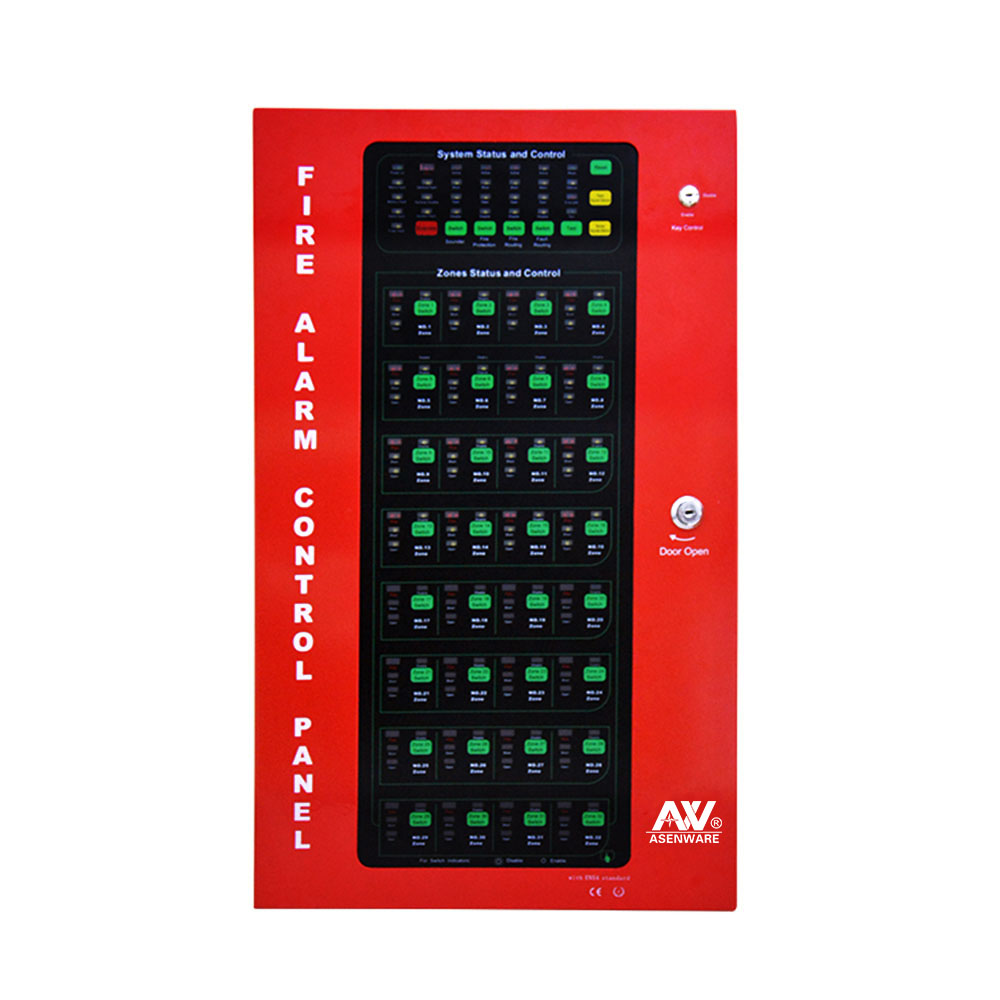

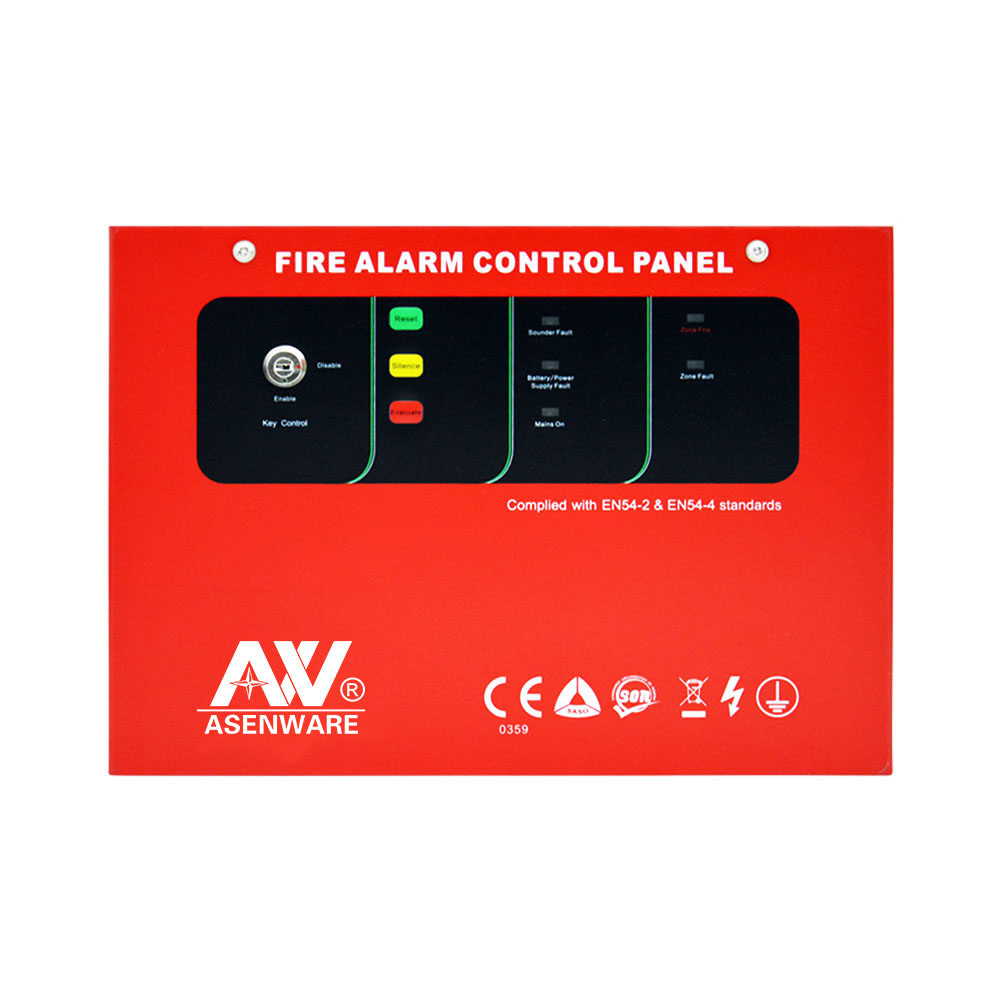

Click on the image to view the original image
Introductions:
1. R&D based on the EN54 part 2&4 standard.
2. Modularized design with extendable zones from 1 to 32 zones.
3. Two-level control modes by the lock.
4. 24VDC & 5VDC power supply outputs.
5. FIRE & FAULT signal outputs.
6. Owns 2 general sounders outputs.
7. Each zone has 1 circuit detectors input .
8. Each zone can be disable by a button.
9. Manual RESET Function
10.SILENCE button to stop all outside BUZZER & SOUNDERS.
11. EVACUATE button to start manual fire alarm immediately.
12.Battery low-level protection function, i.e.,lower than 21VDC, battery will be cut off automatically until the main power is on.
13.Optional GSM module to realize SMS notification in case of fire.
14 Economic, user-friendly & convenient maintenance.
Parameters:
ITEM | 1 Zone panel | 2 Zone panel | 4-8Zone panel | 4-32 Zone panel |
Model No. | AW-CFP2166-01 | AW-CFP2166-02 | AW-CFP2166-04-16 | AW-CFP2166-04-32 |
Power specification |
| |||
Mains supply voltage | 110VAC or 240VAC | |||
Internal power supply | 27.2VDC | |||
Total output current limited | 500mA @ 240VAC | 500mA @ 240VAC | 3A @ 240VAC | 3A @ 240VAC |
Batteries (default configuration) | 12V2AH*2 | |||
End of Line device | 6.8k Ω,5% tolerance, 0.25W (colour code-blue,grey,red,gold) | |||
End of line resistor value | 6.8k Ω,5% tolerance, 0.25W (colour code-blue,grey,red,gold) | |||
Size and weight |
| |||
Dimensions(mm) | 272*200*70mm | 320*231*90mm | 395X502X124 | 362X565X124 |
Weight (without batteries) | 4kg | 5kg | 7kg | 8kg |
Weight (with batteries) | 5.8kg | 6.8kg | 9.6kg |
12.5kg |
Packaging & Shipping
Strict & Standard Export Packing Procedures Adopted:
1.OEM / ODM service available .
2.Timley Considerate presales & aftersales services
3.Highly cost-performance advantage
4.To satisfy the requirement of clients is our top priority with responsibily.
Established in 2006 with headquaters in London,UK, Asenware grows up into an international group company in BMS & NDT sector.
We are a technology-oriented company that devotes to R&D NDT(Non Destructive Test) & BMS(Building Management System) industries.
We have two factories : one factory is in Shenzhen city for BMS products, and the other is in Dandong city for NDT X-ray products.
In our BMS factory, we produce addressable & conventional fire alarm system, CCTV camera & DDC controller.
In our NDT X-ray factory, we produce portable and mobile NDT X-ray flaw detectors, X-ray analysis equipment and the dark room accessories.
We have an experienced R&D team to design special electric product for test and control usage.
To satisfy the requirement of clients tops our agenda all the time.
Payment Terms :T/T/L/C/Western Union .
Lead Time :ASAP
Warranty :One year
Certificate :CE LPCB ISO9001
Technical Support : Anytime Available

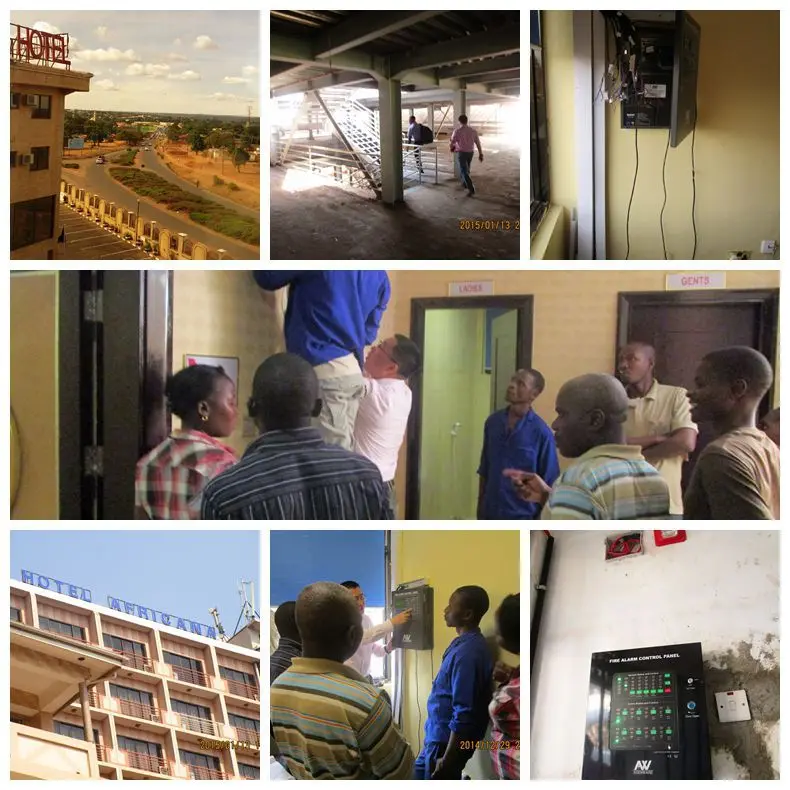

The addressable fire detection alarm panel Installation photo above is taken from 5-star SIMAMA Hotel,in Lilongwe,Malawi.
ASENWARE---professional BMS fire alarm & suppression total solution designer & provider.
Service:12-month free warranty,modularized design,simple installation,reliable performance,endurable life,wire-saving & flexible zone/loop extension margin,etc.
======================================================================================
Installation Models:5-star Simama Hotel,Lilongwe,Malawi,Hotel Africanna,Kampala,Uganda,Egyptian Bank & Bangladesh Garment Factories,etc.
