Addressable Fire Alarm Control Panel Specification:
1.AW-AFP2188-100: 100 addresses |
2.AW-AFP2188-200: 200 addresses |
3.AW-AFP2188-324: 324 addresses |
Addressable Fire Alarm Control Panel Feature:
1.The AW-AFP2188 is a new type of analog fire alarm control panel which has 324 alarm control points (detectors and modules which are characterized by fully mixed coding, non-polarity and two buses). It complies with the provisions of both Fire Alarm Control Units (GB4717-2005) and Automatic Control System for Fire Protection (GB16806-2006).
Its characteristics are as follows:
2.The intelligent detectors and the intelligent modules have internal microprocessors to realize digital filtering and auto-compensation functions; the data collection is true and reliable; the AW-AFP2188 control panel can carry out data processing based on fuzzy control theory and modern fire alarm theory to fundamentally avoid missing alarms and to reduce false alarms, so as to improve reliability.
The detectors have a sensitivity setup function and can adjust the alarm sensitivity according to the specific environment and their influences.
3.The detecting bus and the control bus share a two-wire structure and have non-polarity and fully mixed coding of the detectors and modules, and the intelligent detectors and the intelligent modules can be directly connected to them, which greatly simplifies the system wiring, engineering installation and circuit maintenance.
4.The system uses an AC-DC master-standby power supply system which will automatically change between the master and standby power supplies in the event of a power failure of either of the two power supplies to ensure uninterrupted operation of the system.
The AW-AFP2188 can be connected to a special mini-printer to realize real-time printing.
The AW-AFP2188 can be connected to floor fire display panels to display fire alarms by standard RS-485.
The AW-AFP2188 can be connected to ten multi-line linkage control/monitoring points to control and monitor important equipment.
The AW-AFP2188 is equipped with eight bus manual control points, which makes it very easy for the user to control related equipment.
Addressable Fire Alarm Control Panel Capacity:
| AW-AFP2188 system capacity: 324 points (non-polarity, two wire bus, fully mixed coding) AC input voltage: AC 220V±20% 50Hz AC input power: 120W DC power: DC24V 5.0Ah, two fully sealed maintenance-free DC12V 5.0Ah storage batteries connected in series The 24V DC power has a long-term constant output current of 6A. The 5V DC power has a long-term constant output current of 4A. Circuit bus: two-wire system; total length: ≤1500m Voltage of the circuit bus: +20V≤ Voltage ≤+26V(when the DC power is operating) +24V≤ Voltage ≤+26V(when the AC power is operating) |
Addressable Fire Alarm Control Panel Working Condition:
1. Temperature: -10°C~+50°C |
| 2. Humidity: ≤95% |
3. Power supply: AC 220V 50HZ |
| DC 24V 6A |
| 4. Output contact capacity: AC 220V 1A |
| DC 27.6V 3A |

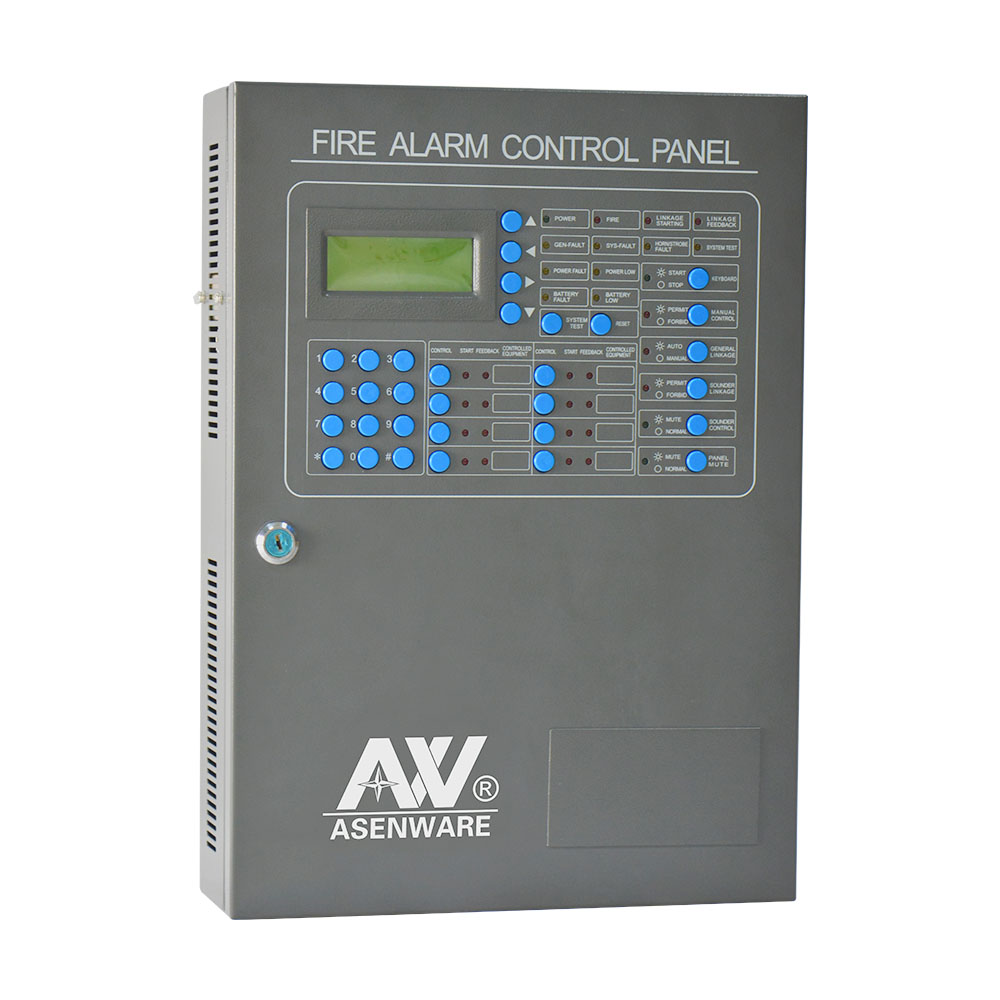

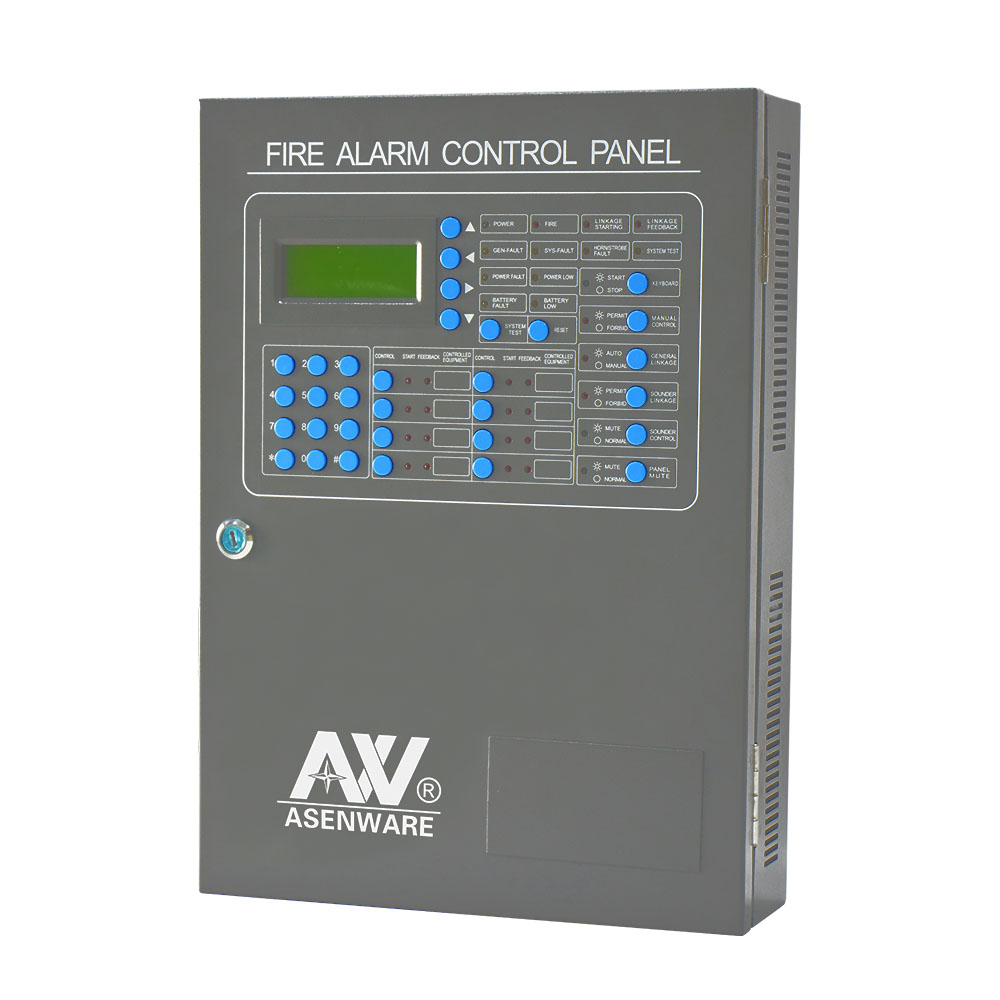

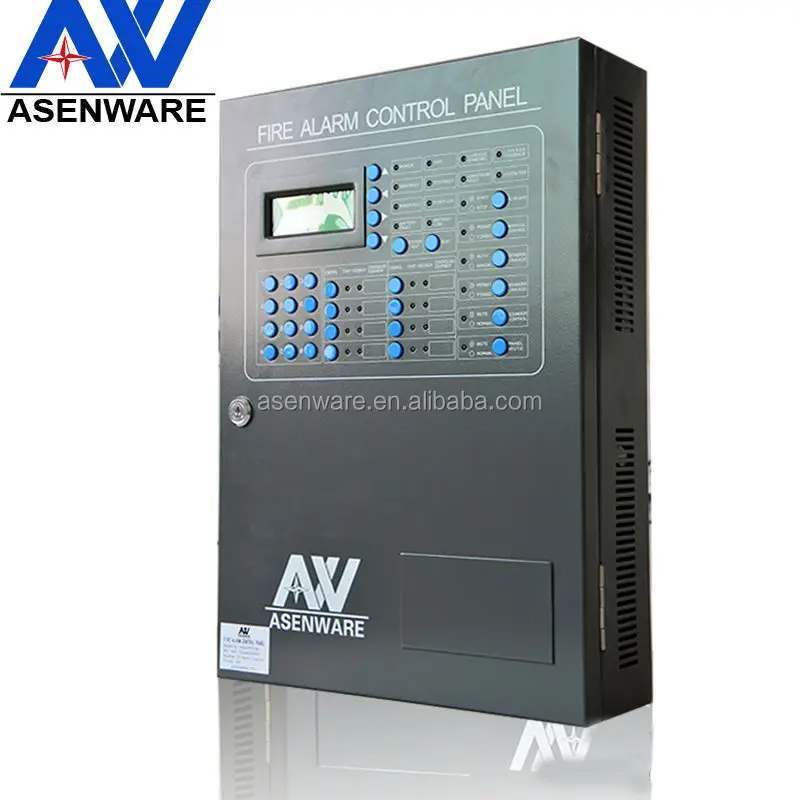

Addressable Fire Alarm Control Panel Pictures:
