Product Description
Addressable Optical Smoke Detector
Addressable Optical Smoke Detector Introduction:
| 1. Executive standard: GB4715-2005 |
| 2. Operating voltage: 24V (pulse modulation) |
| 3. Operating current: < 300uA (monitoring status) or < 1.5mA (alarm status) |
| 4. Work indication: The red indicator will blink in the monitoring status or remain lit in the alarm status. |
| 5. Weight: about 70g |
| 6. External dimensions: diameter: 100mm, height: 55mm (with the base) |
| 7. Wiring method: non-polarity two-bus system (L1, L2) |
| 8. Operating environment: Indoor, temperature: -10°C~+55°C; relative humidity: ≤95% (40°C±2°C, without condensation) |
| 9. Coding mode: It can realize electronic coding via coder in situ. Address codes 1 to 324 are available for selection |
| 10. Installation height: ≤12m |
| 11. Protection area: about 60m2. For details, see related provisions in GB50116-98 Code for Design of Automatic Fire Alarm System Matched host machine: fire alarm control panel (such as AW-AFP2188) |

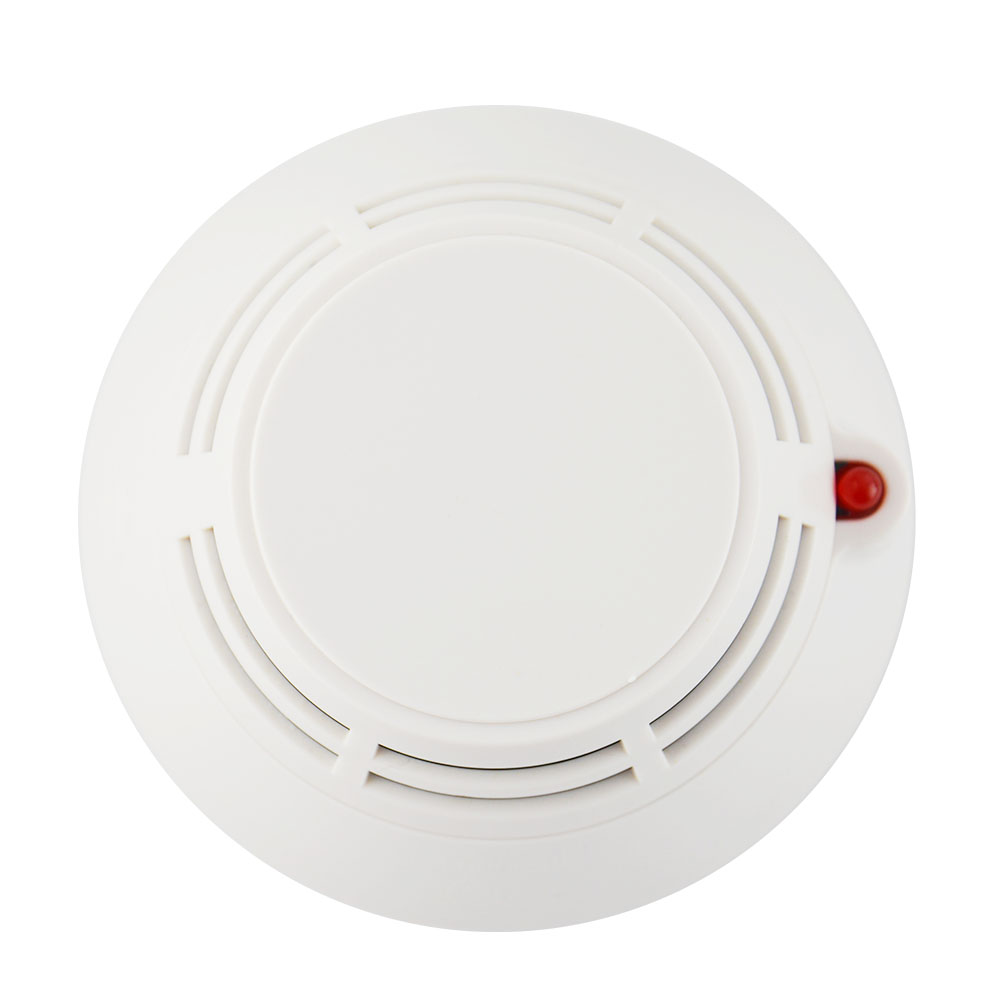

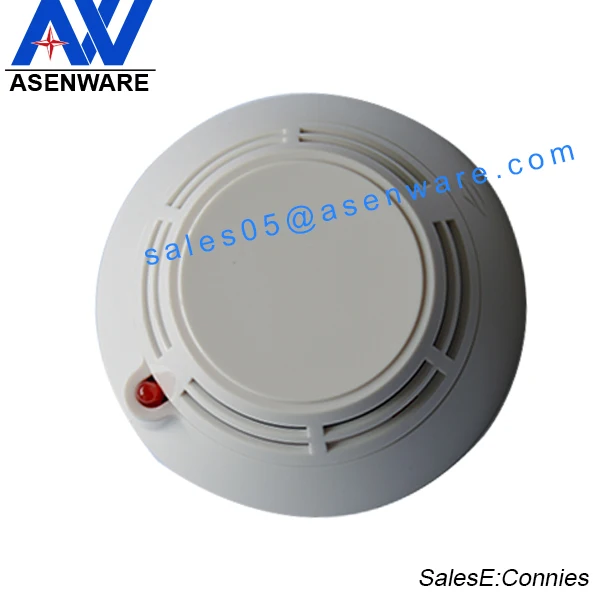

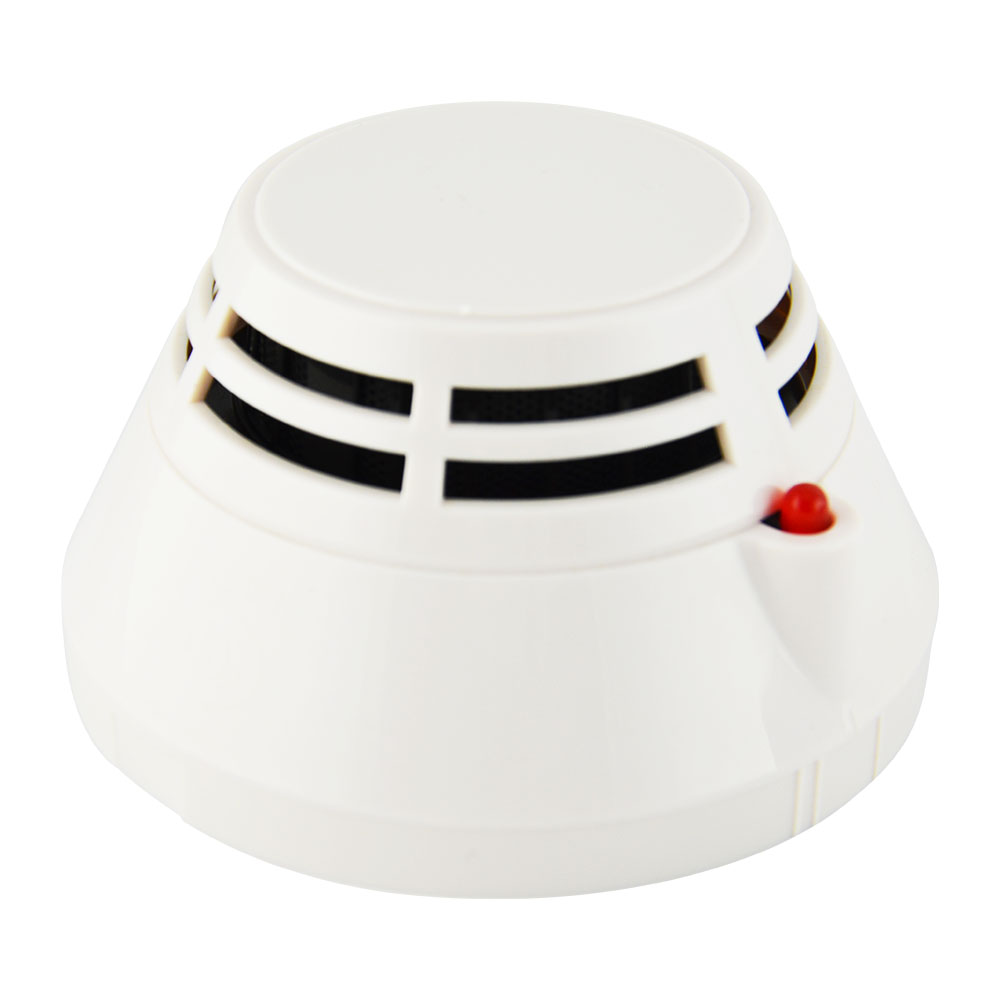

Addressable Optical Smoke Detector Picture:
Company Information
Our company is a professional fire alarm system & relevant accessories manufacturer in China for many years.With updated machinery and skilled staffs we have supplied stable high quality products to customers all over the world.
Our experianced engineers and exporting team will answer your inquiry or email at the first time,and providing professional service from products visiting,ordering to deliver goods and after-sales service, In the same time, we also can provide professional technical solutions for you item even can arrive your country.The aim is to saving your precious time and cost.
Packaging & Shipping
FAQ
| 1.MOQ: 10 pcs |
| 2.Delievry time :generally 2 to 7 days .Mass product about 15 days. |
| 3.Payment terms :T/T L/C or Western union. |
4.Warranty :3 year |
| 5.Technical support :yes |
| 6.After sale service: yesal f |
