1. The horn strobe is controlled by a microprocessor, the hooter/horn can realize real-time communication with a bus-type fire alarm control unit and receive the control commands sent by it.
2. When in a routine inspection, the red status indicator will blink; after an accident happens, the red status indicator will remain lit and the hooter/horn will give a flashing signal, thus an audible alarm signal to notify the persons on the scene of the accident that a fire has occurred on the site , preventing the fire accident from becoming a major one.
3. The hooter/horn may be restored to the monitoring status after the MUTE or RESET key on the bus-type fire alarm control unit is pressed.

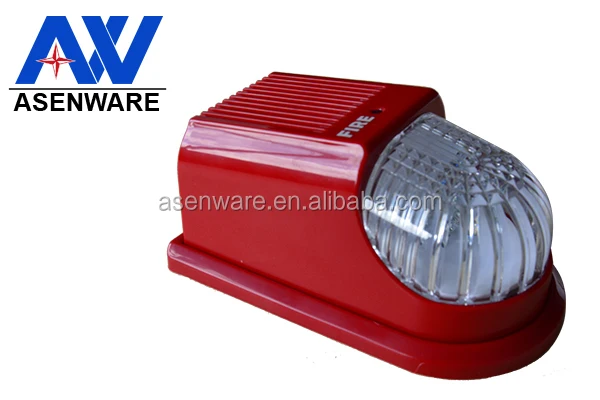

Fire Alarm Red Color Strobe Sounder Basic Introduction | |
Name | Addressable Horn Strobe |
Model | AW-ASS2188 |
Features | 24V. 3 Tone. Alarm colume>85db |
Weight | 170g |
Matched Host Machine | Addressable Fire Alarm Control Panel AW-AFP2188 |
Fire Alarm Red Color Strobe Sounder Technical Parameters
Executive standard: GA385- 2002
Operating voltage: DC24V (pulse modulation)
Operating current: quiescent current: ≤1mA (the current consumed by the bus); alarm current: ≤120mA@DC24V
Operating environment: Temperature: -10°C~+55°C; relative humidity: ≤95% (40°C, without condensation)
Flushing rate: one time/s
Alarm volume: >85dB (measured at a place 3m in front of the hooter/horn)
Coding method: Electronic coding

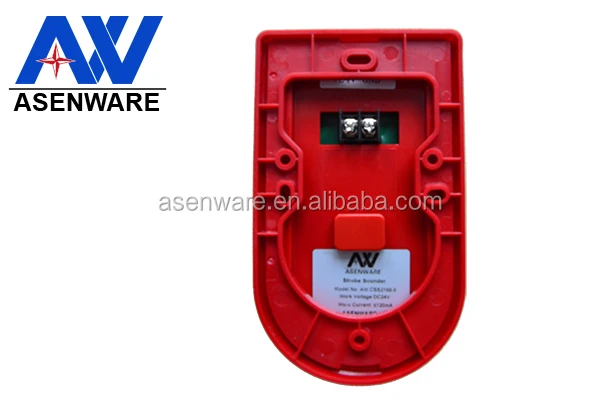

Wiring method: Four-wire system, non-polarity two signal buses (L1, L2) and power lines (+24V, GND)wireless horn strobe, fire horn strobe, infrared strobe, alarm siren 100db, led strobe , star strobes, siren strobe, light strobe, strobe alarm hooter, industrial hooters, fire hooter, car hooters, horn hooter, electronic hooter , hooter, mini strobe siren, wireless strobe light siren, led fire strobe siren, strobe light , home alarm system parts, piezo alarm strobe siren, fire alarm strobe siren, fire strobe siren, motor siren, electric siren
