Fire Alarm Control Panel Overview
The automatic extinguisher control panel is designed in accordance with European standards EN54-2 and EN54-4 Fire Detection and Fire Alarm systems - Control and Indicating Equipment and EN12094-1 Fixed firefighting systems - Components for gas extinguishing systems - Part 1: Requirements and test methods for electrical automatic control and delay devices.
The control equipment is a combined fire alarm control panel and extinguish ing system and has three detection zones, any or all of which are capable of contributing to the extinguishant release decision.
Control panels have an integral, mains powered battery charger and power supply designed in accordance with the requirements of EN54-4.
Fire Alarm Panel Parameters
 | Temperature | -10°C~+50°C |
| Humidity | ≤95% | |
| Power supply | AC 220V 50HZ DC 24V 6A | |
| Output contact capacity | AC 220V 1A DC 27.6V 3A | |
| DC power | DC24V 5.0Ah, two fully sealed maintenance-free DC12V 5.0Ah storage batteries connected in series | |
| AC input voltage | AC 220V±20% 50Hz | |
| AW-AFP2188 system capacity | 100/200/324 points (non-polarity, two wire bus, fully mixed coding) |

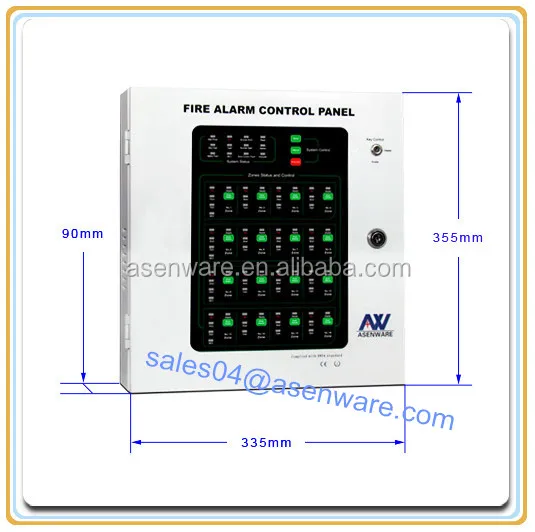

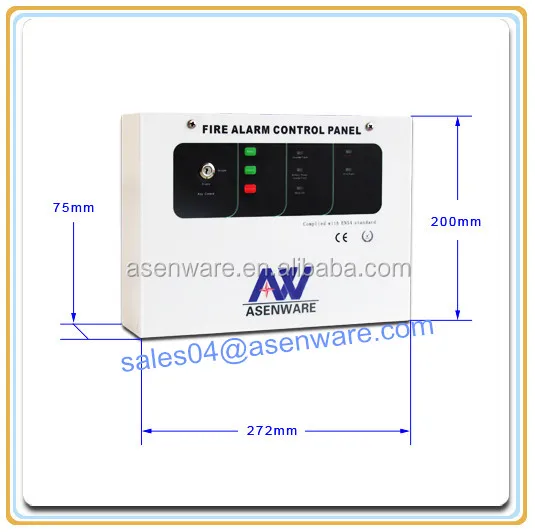

Fire Alarm Panel Specification

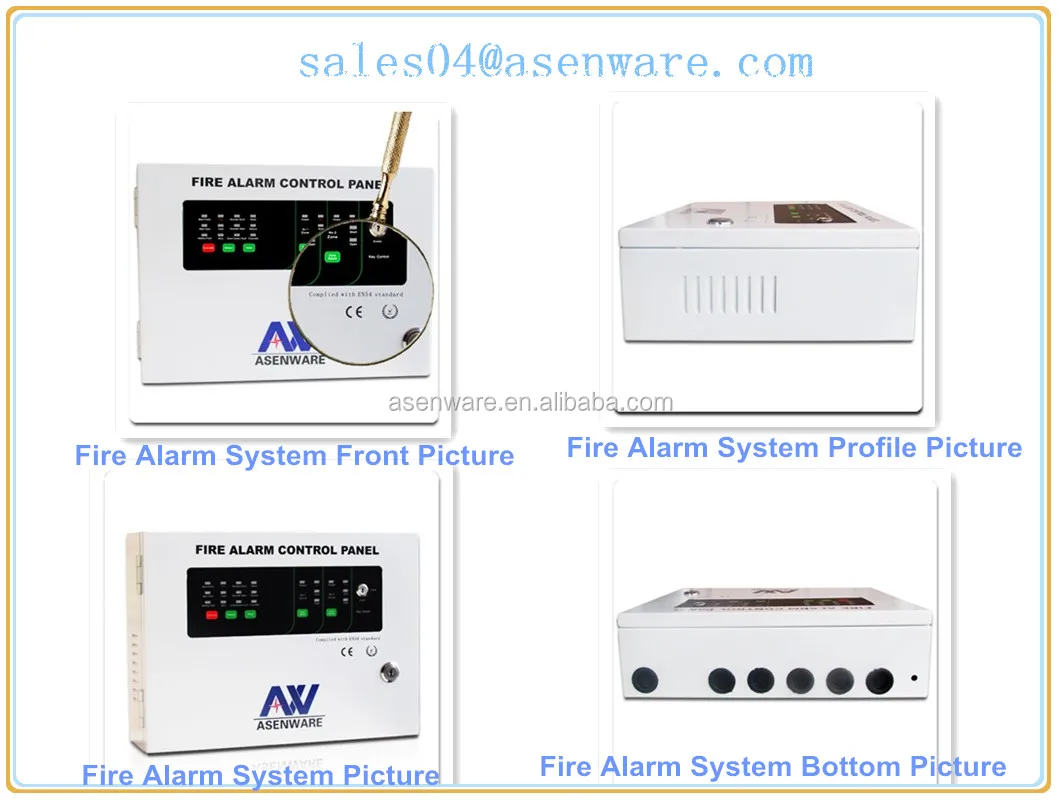

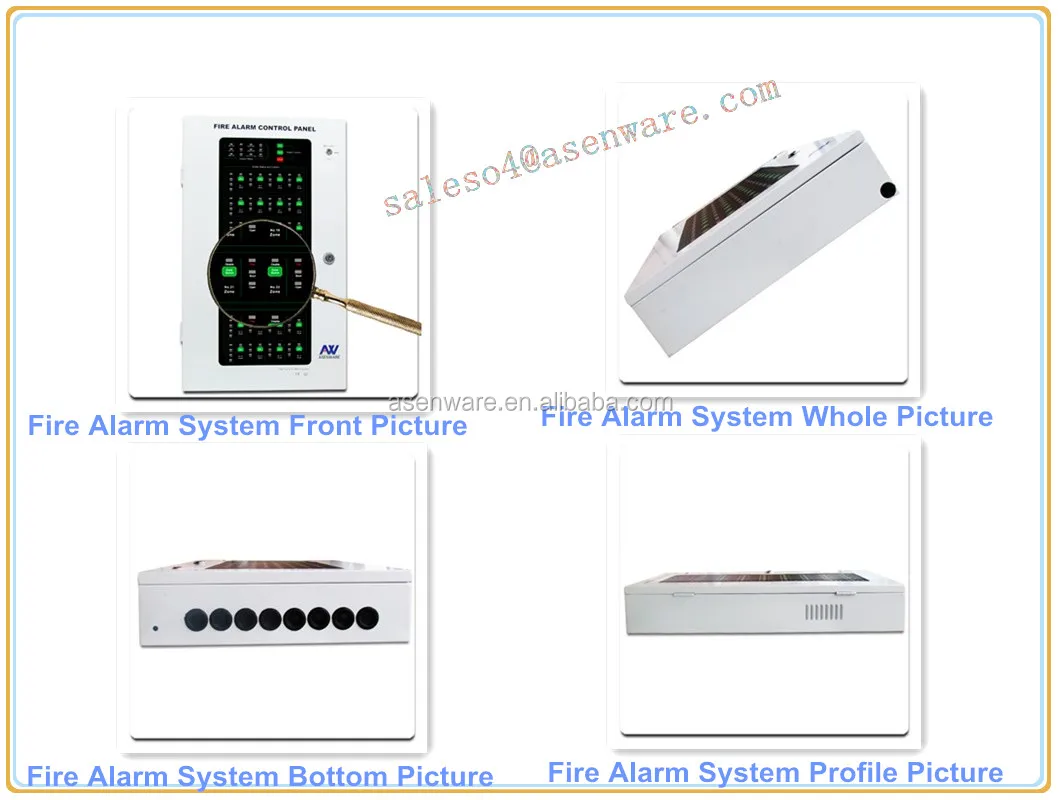

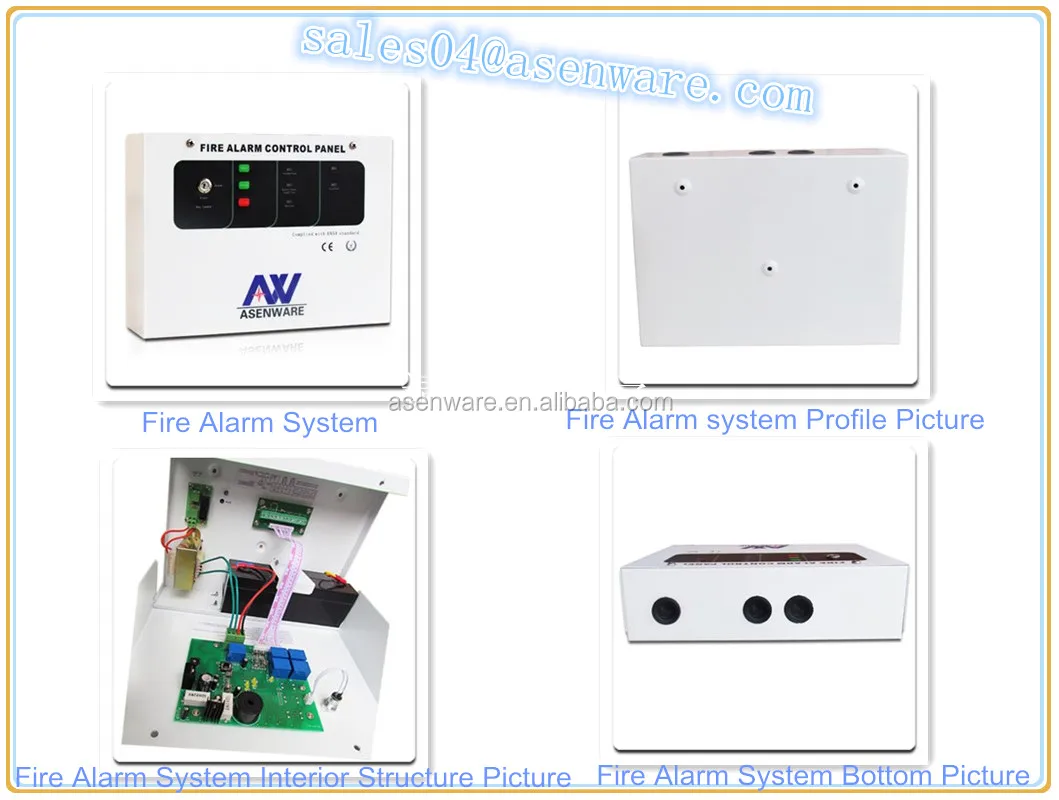

Fire Alarm Panel Show
fire alarm panel
Fire Alarm System Accessries

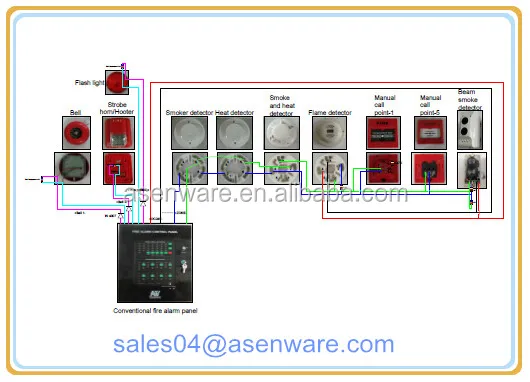

Fire Alarm System Circuit Diagram
Shenzhen Asenware Test And Control Technology Co., Ltd was set up in 2006, our headquarters is in London of UK. Now Asenware is an international group company in BMS and NDT industries.
We are a technology oriented company that devotes to NDT(Non Destructive Test) and BMS(Building Management System) industries.
We have two factories : one factory is in Shenzhen city for BMS products, and the another is in Dandong city for NDT X-ray products.
In our BMS factory, we produce addressable and conventional fire alarm system, CCTV camera and DDC controller.
In our NDT X-ray factory, we produce portable and mobile NDT X-ray flaw detectors, X-ray analysis equipment and the dark room accessories.
We have an experienced R&D team to design special electric product for test and control usage.
We have been striving to provide customers with satifying service before, during and after sales.
1.Pre-sales:we have R&D center which can offer free technical support and project budget.
2.Sales:24 hour on line prompt reply,norm quotation
3.After-sales:1 year warranty,technical maintance

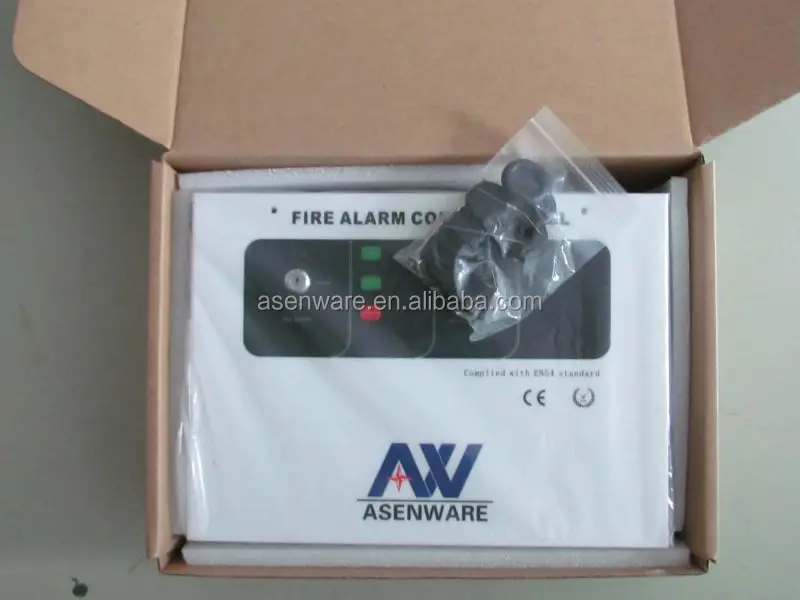

Fire Alarm System Packaging and Shipping
