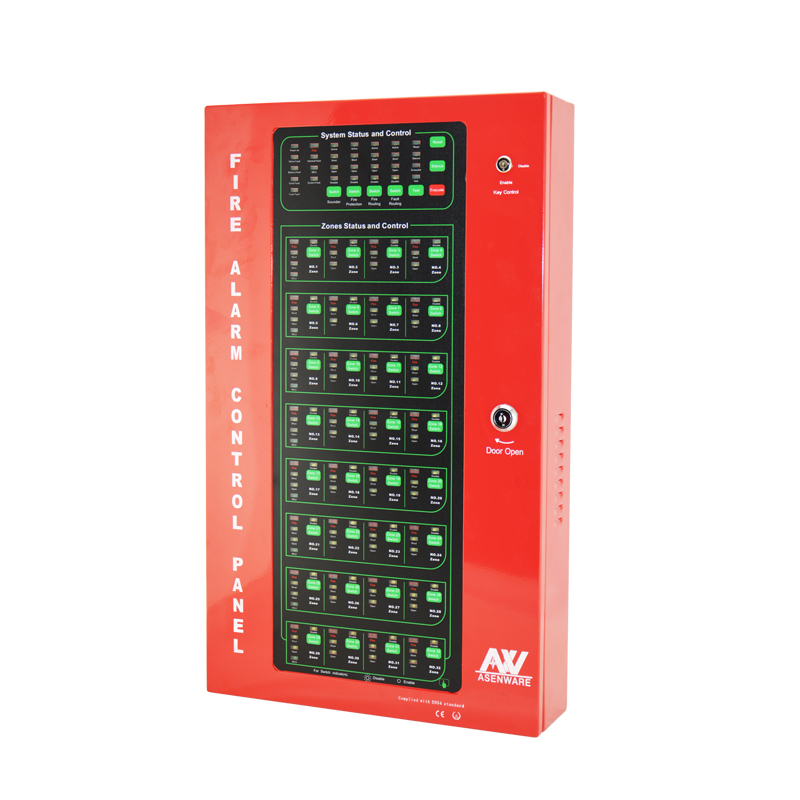

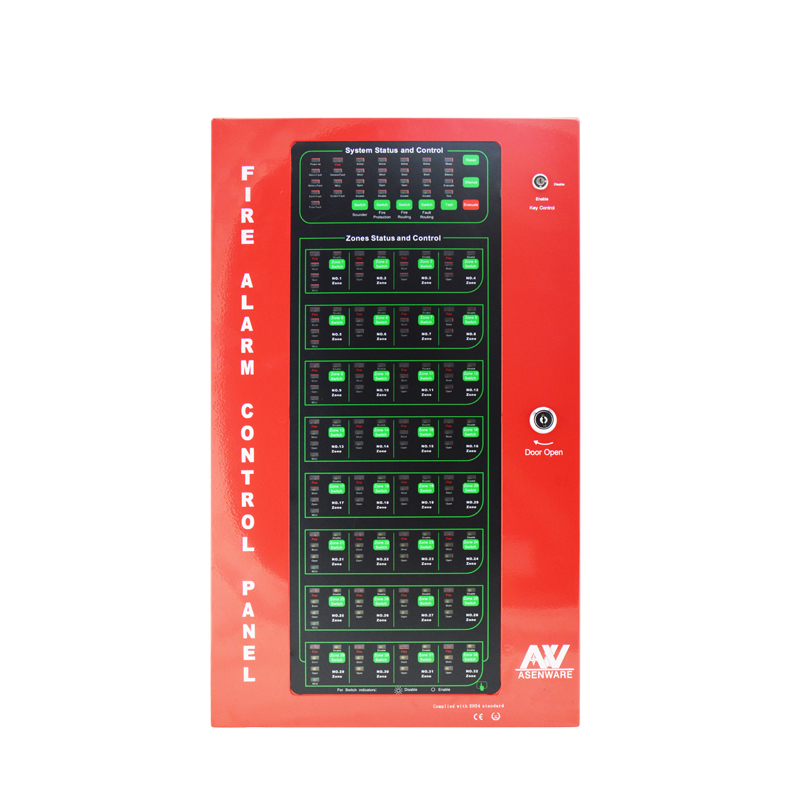

Two-wire Network 20 Zones 24V Fire Alarm Machine
Function Descriptions:
1. R&D Bsed on the EN54 part 2&4 fire alarm standard.
2. Flexible Zone-expandable from 1 to 32 zones.
3. Two-level control modes by a lock.
4. 24VDC & 5VDC power supply outputs.
5. FIRE & FAULT signal outputs.
6. Two sounders outputs.
7. One-circuit detectors input per zone .
8. Each zone can be disabled by a button.
9. Manual RESET Function
10.SILENCE button to stop all exterior BUZZER & SOUNDERS.
11. EVACUATE button to start manual fire alarm immediately.
12.Battery low-level protection function, i.e.,lower than 21VDC, battery will be cut off automatically until the main power is on.
13.Optional GSM module to realize SMS notification in case of fire.
14 Economic, user-friendly & convenient maintenance.
Parameters:
ITEM | 1 Zone panel | 2 Zone panel | 4-8Zone panel | 4-32 Zone panel |
Model No. | AW-CFP2166-01 | AW-CFP2166-02 | AW-CFP2166-04-16 | AW-CFP2166-04-32 |
Power specification |
| |||
Mains supply voltage | 110VAC or 240VAC | |||
Internal power supply | 27.2VDC | |||
Total output current limited | 500mA @ 240VAC | 500mA @ 240VAC | 3A @ 240VAC | 3A @ 240VAC |
Batteries (default configuration) | 12V2AH*2 | |||
End of Line device | 6.8k Ω,5% tolerance, 0.25W (colour code-blue,grey,red,gold) | |||
End of line resistor value | 6.8k Ω,5% tolerance, 0.25W (colour code-blue,grey,red,gold) | |||
Size and weight |
| |||
Dimensions(mm) | 272*200*70mm | 320*231*90mm | 395X502X124 | 362X565X124 |
Weight (without batteries) | 4kg | 5kg | 7kg | 8kg |
Weight (with batteries) | 5.8kg | 6.8kg | 9.6kg |
12.5kg
|
Packaging & Shipping
Prudent & Standard Export Packing Procedures Adopted + 100% QC& IQC:
1.OEM / ODM service available .
2.Timley Considerate presales & aftersales services
3.Highly cost-performance advantage
4.To satisfy the requirement of clients is our top priority with responsibily.
Established in 2006 with headquaters in London,UK, Asenware grows up into an international group company in BMS & NDT sector.
We are a technology-oriented company that devotes to R&D NDT(Non Destructive Test) & BMS(Building Management System) industries.
One BMS factory, we produce Addressable & Conventional Fire Alarm System, CCTV camera & DDC controller.
The other NDT X-ray factory, we produce portable and mobile NDT X-ray flaw detectors, X-ray analysis equipment and the dark room accessories.
We have an experienced R&D team to design special electric product for test & control usage.
To satisfy the requirement of clients tops our agenda all the time.
Payment Terms :T/T/L/C/Western Union .
Lead Time :ASAP
Warranty :One year
Certificate :CE LPCB ISO9001
Technical Support : Anytime Available
