Heat detector alarm parameters detailed show
| Height | 2.2 (55 mm) installed in Base |
| Diameter | 4.0 (103 mm) |
| Weight | 5.5 oz. (155 g) |
| Installation Temperatures | 14°F to 122°F (-10°C to50°C) |
| Operating Voltage Range | 9 to 28VDC Volts Non-polarized |
| Standby Current | 40μA @ 24 VDC |
| Maximum Alarm Current (LED on: ) | ≤30mA @ 24 VDC |
| Fixed Temperature Rating | 135°F (57°C) |

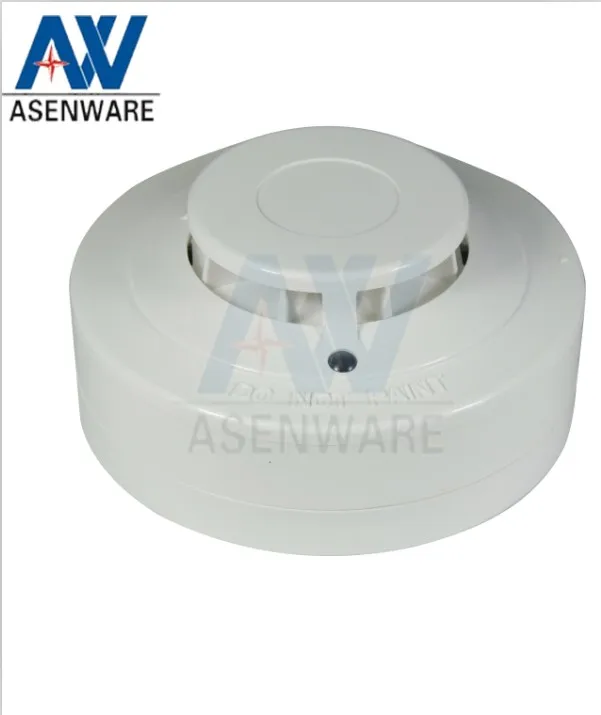

Heat detector alarm fire alarm monitoring description
The device heat detector alarm is intelligent sensors that utilize a state-of-the-art thermistor sensing circuit for fast response.These sensors are designed to provide open area protection with 50 foot spacing capability. The device is a rate-of-rise temperature sensor with 135°F fixed temperature alarm. thermal detector utilizing a state-of-the-art dual thermistor sensing circuit. These detectors are designed to provide open area protection with 50-foot spacing capability, and are to be used with compatible control panels only. Two LEDs on each detector light to provide 360° visibility of the detector indication.
NOTE: All wiring must conform to applicable local codes, ordinances, and regulations.
NOTE: Verify that all detector bases are installed, that the initiating-device circuits have been tested, and that the wiring is correct.
Remove power from initiating-device circuits before installing detectors.
1. Wire the sensor base per the wiring diagram, Figure
2. Install the sensor into the sensor base. Push the sensor into the base while turning it clockwise to secure it in place.
3. After all sensors have been installed, apply power to the control unit.
4. Test the sensor(s) as described in the TESTING section of this manual.
5. Notify the proper authorities that the system is in operation.
Packaging : Use carton to pack addressable fire alarm system well .
Shpping :UPS FEDEX EMS DHL negotiable for shpping addressable fire alarm system .
Our servise
1.OEM ODM can be provided .
2.Technical support like how to install operate .Any question will be answer within 24 hours .
3.We have prfessional technical team to help customers solve technical problems .
4.Hotel project hospital factory fire alarm system project can be made
Shenzhen Asenware Test And Control Technology Co., Ltd was set up in 2006, our headquarters is in London of UK. Now Asenware is an international group company in BMS and NDT industries.
We are a technology oriented company that devotes to NDT(Non Destructive Test) and BMS(Building Management System) industries
We have two factories : one factory is in Shenzhen city for BMS products, and the another is in Dandong city for NDT X-ray products.

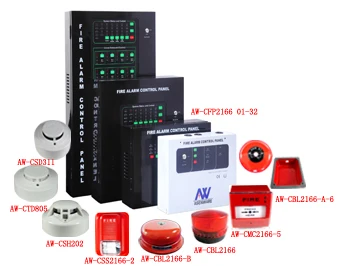

In our BMS factory, we produce addressable and conventional fire alarm system, CCTV camera and DDC controller.
In our NDT X-ray factory, we produce portable and mobile NDT X-ray flaw detectors, X-ray analysis equipment and the dark room accessories.
We have an experienced R&D team to design special electric product for test and control usage.
We have been striving to provide customers with satifying service before, during and after sales.
FAQ
Payment terms :T/T L/C Western union .
Delievry time :usually about 2 to 5 days .Mass product about three weeks .
Warranty :one year
Certificate :CE LPCB ISO9001
Technical support :yes
