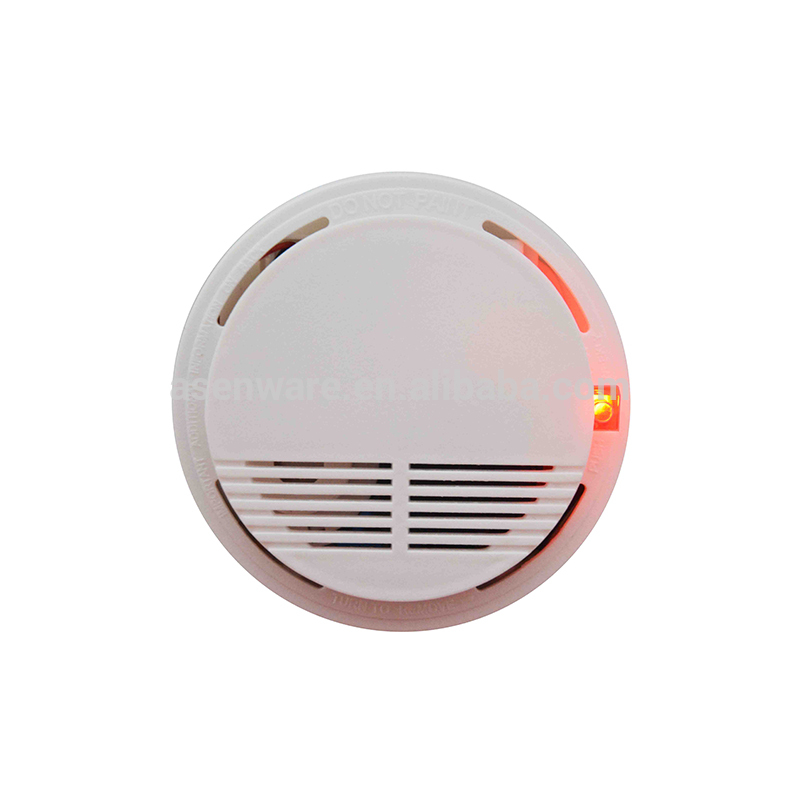

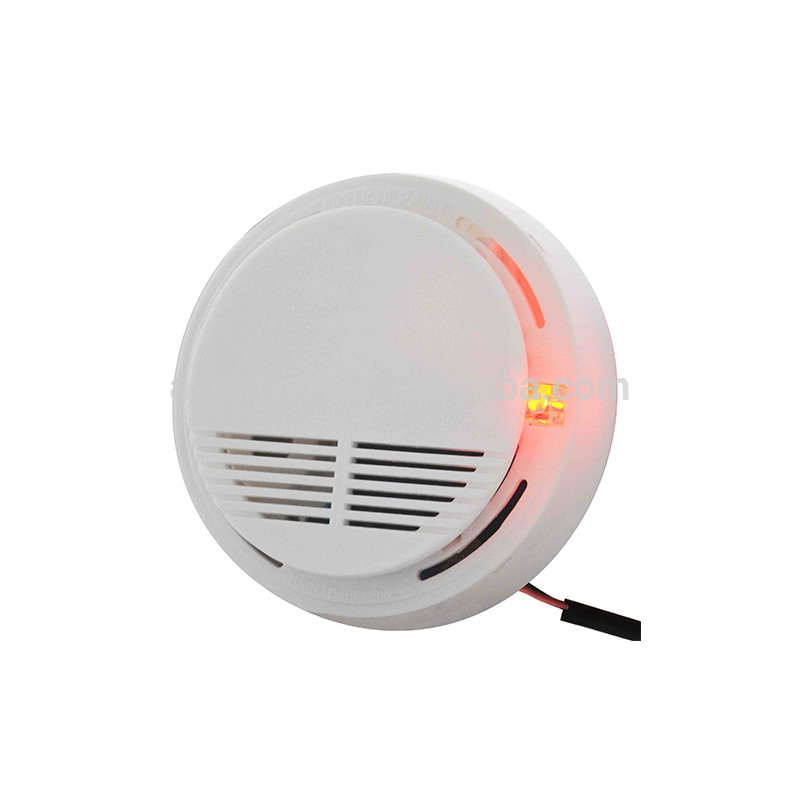

Asenware AW-SSD701 Smoke Detector with Battery
Introduction:
The AW-SSD701-AB named Photoelectric smoke detector(hereinafter called detector) detects the smoke by a couple of infrared diodes. The principle of detecting is granule in the smoke can reflect infrared light. Infrared diodes are placed in the special chamber. The product in accordance with the networking approach is divided into 2-wire and 4-wire detectors.
1. Test by hand
2. Auto reset
3. ASIC adopted
4. Anti-light
5. Strong adaptability for circumstance
6. SMT design, high stability
| Operating Voltage | DC 9V |
| Start Current | ≤uA |
| Power Supply | A 9F22 Battery B AC Power(85-240VAC) |
| Alarm Current | ≤30mA |
| Indicate Alarm | Red Led Flash |
| Sound Level | ≥85dB/m |
| Operating Temperature | -10℃~50℃ |
| Relative Humidity | ≤95%RH |
| Alarm Output | A Sound And Flash Alarm B Relay Out |
| Size | 105×31.5mm |
| Executive Standard | GB4715-1993 |
1.Are you manufacturer?
(yes)
2.How do you package?
(Standard export packing including):
1) PEE bag per unit
2) Outside Cartons
3.what kind of shipment?
4. warranty
(two years)
5.Delivery time
usually
Fire control: one week working day
bulk quality: three weeks working days
Emergency lights: two weeks working days
bulk quality: four weeks
FM200: two weeks working day
Fire pump: 25 days
6. technical support
fire alarm and fire
fighting solutions
provider
our project list
FEW RECENT FINISHED PROJECTS
• Indonesia: Government Apartment ( Addressable and Telephone Panel)
• Cambodia: Coal Plant ( FM-200, LPCO2 System, Addressable Panel )
• Kenya: Senior High School ( Addressable and Conventional Panel)
• Bangladesh: Industrial Building ( Addressable Panel )
• Thailand: Ware House ( Addressable Panel with Beam Detectors )
• Laos: Telecommunication Center ( FM-200, Addressable Panel )
• Myanmar: Data Center ( FM-200, Addressable Panel )
