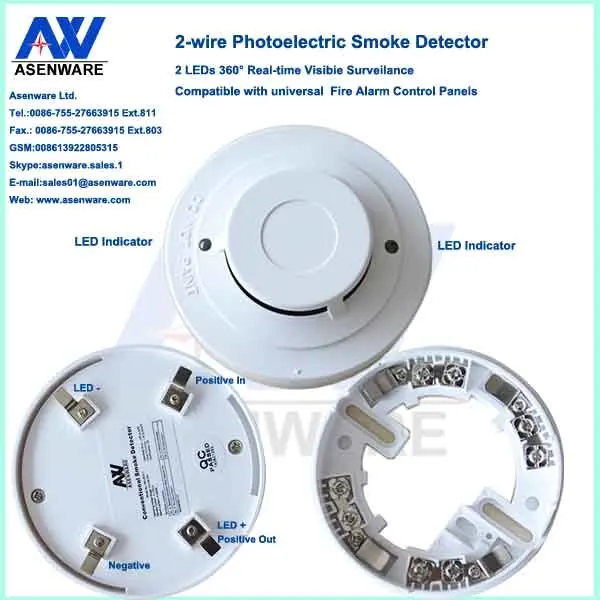

2 Wire Photoelectric Smoke Detector Smoke Sensor
Smoke Detector Specification
| Standby Current | ≤100μA @ 24 VDC |
| Maximum Alarm Current | ≤55mA @ 24 VDC |
| Operating Humidity Range | 10% to 93% Relative Humidity, Non-condensing |
| Operating Temperature Range | 14°F to 120°F (-10°C to 49°C) |
| Adjustable Sensitivity | 1-2.5%/FT |
Smoke Detector Parameters
| conventional smoke detector | ||
 | Executive standard | GB19880-250 |
| Operating voltage | 24V (pulse modulation) | |
| Operating current | <300µA | |
| Weight | 162g | |
| Wiring method | nonpolar two-bus system | |
| Operating enviroment | Indoor | |
| temperature | -10°C~+50°C | |
| Relative humidity | ≤95% | |
addressable photoelectric smoke detector /sensor/alarm | ||
| Name | Addressable optical smoke detector |
Model | AW-ASD2188 | |
External Specification | Diameter 100mm Height 55mm (With Base) | |
Weight | 70G | |
Matched Host Machine | Addressable Fire Alarm Control Panel AW-AFP2188 | |
Installation height | ≤12m | |

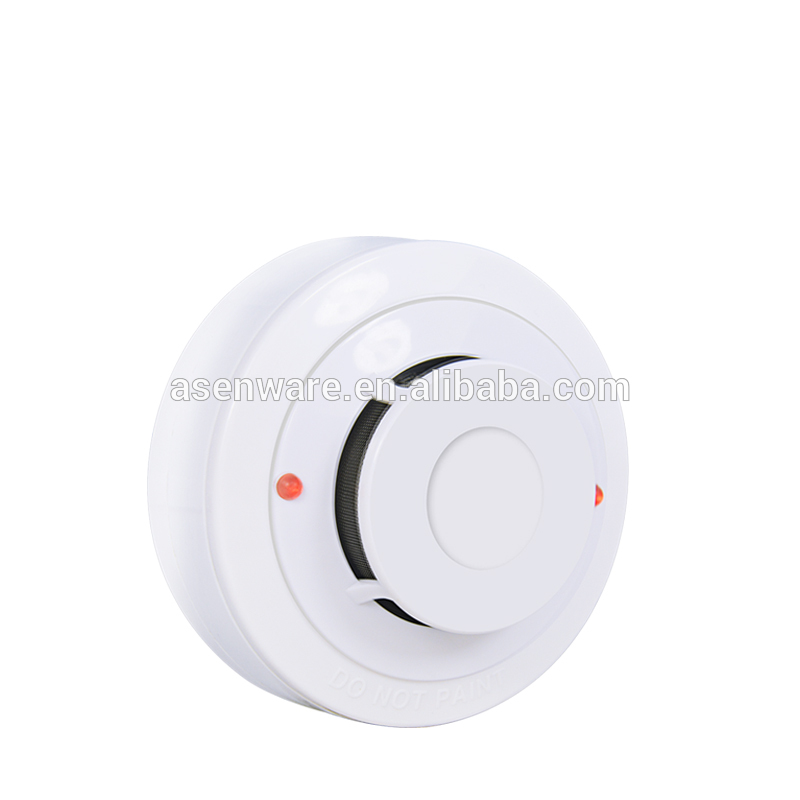

Smoke Detector
Smoke Detector Diagrams
Ø OEM & ODM service: YES
Ø Technical support and After-sale service: YES
Ø Warranty: 1 YEAR
Ø Delivery Time: 3 - 5 days after payment received
Ø Shipping: delivery by air, ship or DHL, FEDX etc. Express for your order
Advantage of our factory and services
1) ISO certified factory with 8 years professional experience and alibity to accept and
fulfill ODM/OEM orders.
Includes:
The initial design service of appearance, structure and electronic parts
Mould opening
Sampling
Semi-products testing and supply
Mass Production for formal orders
We also can quote very quickly as customer provided samples for OEM service.
2) Flexible technicals adjusting and technical support as per customer" s special request.
3) Answer your enquiries, questions and emails in 24 hours
4) Direct control on material, testing, quality, leadtime etc.
