FM200 Automatic Gas Fire Extinguisher Fire Fighting System
Click on the image to view the original image
Product： views：9FM200 Automatic Gas Fire Extinguisher Fire Fighting System
Branch： Asenware
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 03:17
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Asenware
Model Number:
AW-2158
Item:
Gas Fire Extinguisher Fire Fighting System
Model:
AW-2158
Brand:
Asenware
Payment:
T/T,WESTERN UNION
Mains Supply:
90 to 270VAC, 50Hz/60H
Battery Type:
Two 12 Volt sealed lead acid in series
Sounder Outputs:
21 to 28V DC Fused at 500mA with electronic fuse
Fault relay contact rating:
5 to 30 VDC 1A Amp maximum for each
FOB port:
Shenzhen
Lead time:
8 days
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
as customzie dofr package for Gas Fire Extinguisher Fire Fighting System
Port
shenzhen

FM200 Automatic Gas Fire Extinguisher Fire Fighting System

Product Description



ITEM

ELECTRICAL RATING

COMMENT

Mains Supply

90 to 270VAC, 50Hz/60H(100 Watts maximum)



Battery Type

Two 12 Volt sealed lead acid in series.

7Ah maximum

R0V Output

Fused at 500mA with electronic fuse

1.6Amp total load over all circuits

Sounder Outputs

21 to 28V DC Fused at 500mA with electronic fuse



Fault relay contact rating

5 to 30 VDC 1A Amp maximum for each

Volt free changeover contact

Local fire relay contact rating

5 to 30 VDC 1A Amp maximum for each



Volt free changeover contact

First stage contact rating

5 to 30 VDC 1A Amp maximum for each



Volt free changeover contact

Second Stage Contact Rating

 5 to 30 VDC 1A Amp maximum for each

Volt free changeover contact

Extract Contact Rating

 5 to 30 VDC 1A Amp maximum for each

 Volt free changeover contact

No. of detection circuits

Four 21 to 28V DC



No. of sounder circuits

Thee 21 t0 28V DC

 2 X first stage, 1 X second stage

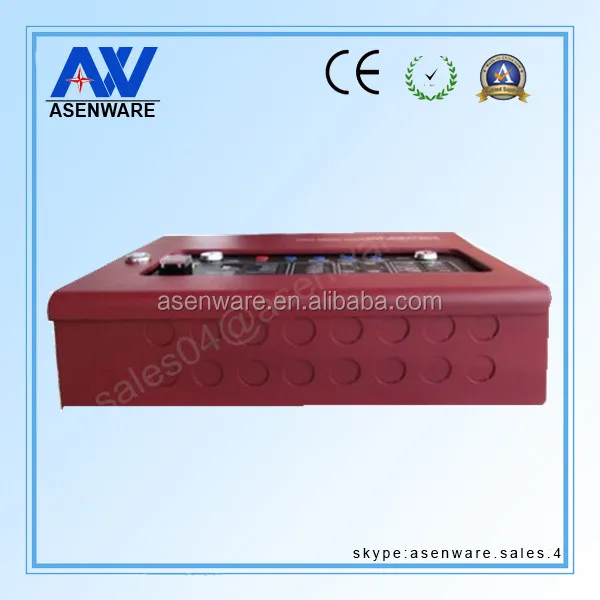

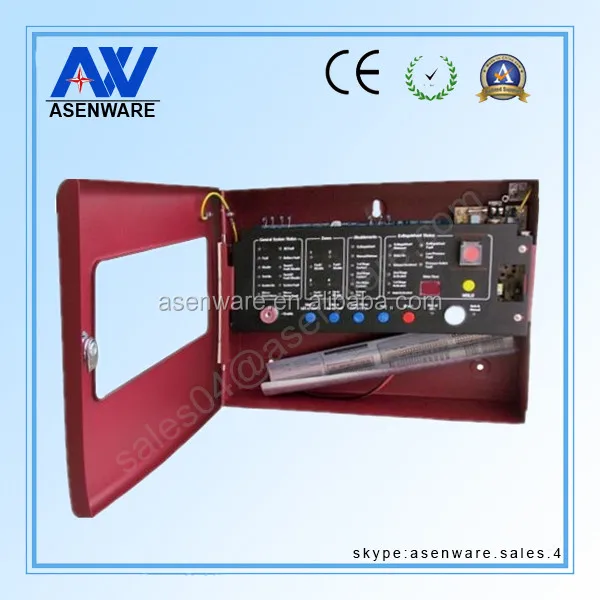

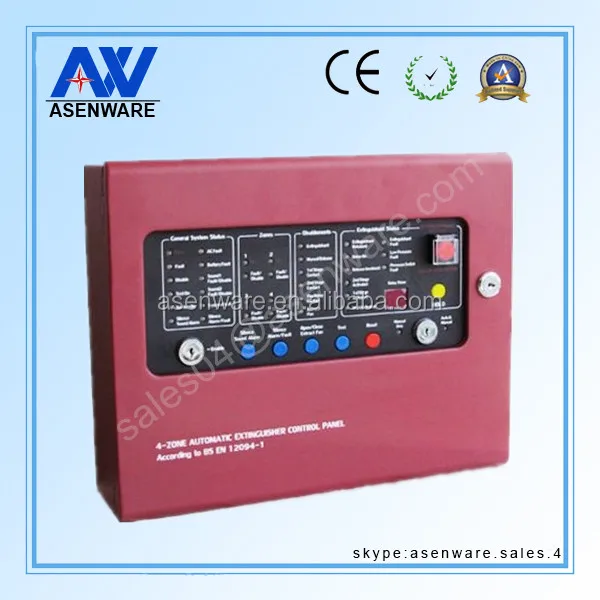

Detailed Images
