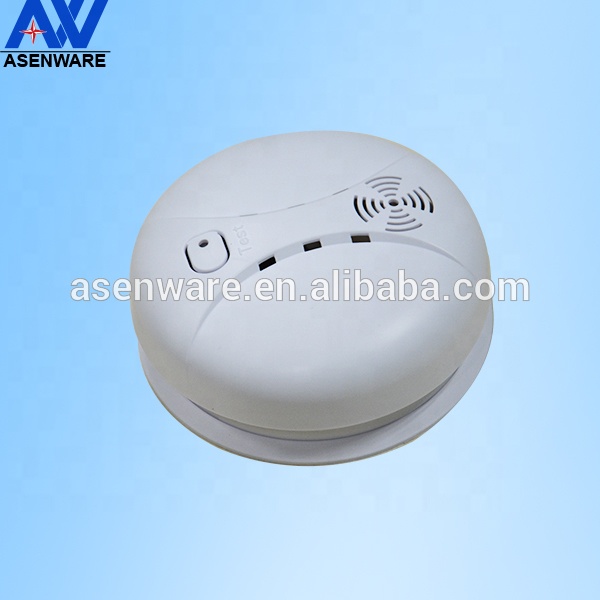

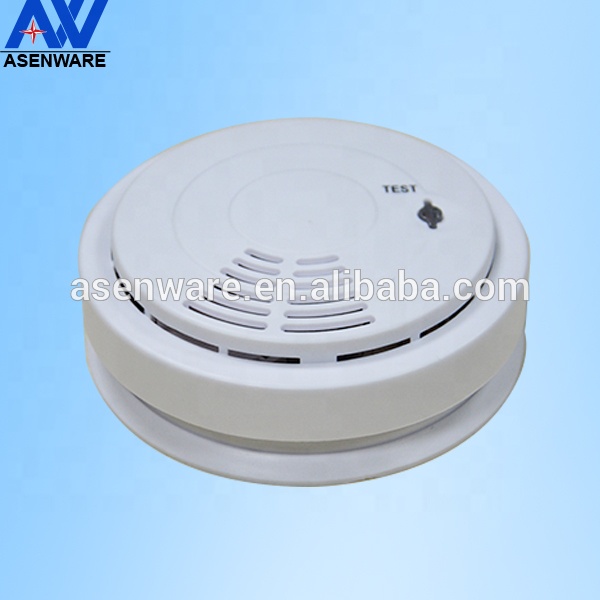

Conventional Optical Standalone Smoke Detector
Product Introduction:
This product named photoelectric detector(hereinafter called detector) detects the smoke by a couple of infrared diodes. The principle of detecting is granule in the smoke can reflect infrared light. Infrared diodes are placed in the special chamber. The chamber can shield external light, but don"t affect the smoke into it. While have no smoke, the diode can receive very weak infrared light.
Technical Specification:
| Operating voltage | 9VBATTERY (independence or wireless type) |
| Static current | 10uA |
| Alarm current | 20mA |
| Indicate alarm | RED LED FLASH |
| Sound Level | 85dB/m |
| Operating Temp | -10 +50 |
| Humidity | 95 RH |
| Detecting area | 20 square meter |
| Alarm output | RF signal 315MHz or 433MHz |
| Size | 106*35mm |
| Execute criterion | GB4715-1993 |
1.OEM ODM can be provided .
2.Technical support like how to install operate .Any question will be answer within 24 hours .
3.We have prfessional technical team to help customers solve technical problems .
4.Hotel project hospital factory fire alarm system project can be made .
ASENWARE is the fire alarm system and fire suppression system manufacturer and whole fire safety solution provider for 14 years.
We always remember that quality is the cornerstone of our existence, and we will never reduce the quality for any reason.Our fire safety products ,solutions and services are used in over 100 countries.
We have an experienced R&D team to design special electric product for test and control usage.
We have been striving to provide customers with satifying service before, during and after sales.
Payment terms :T/T L/C Western union .
Delievry time :usually about 2 to 5 days .Mass product about three weeks .
Warranty :one year
Certificate :CE LPCB ISO9001
Technical support :yes
