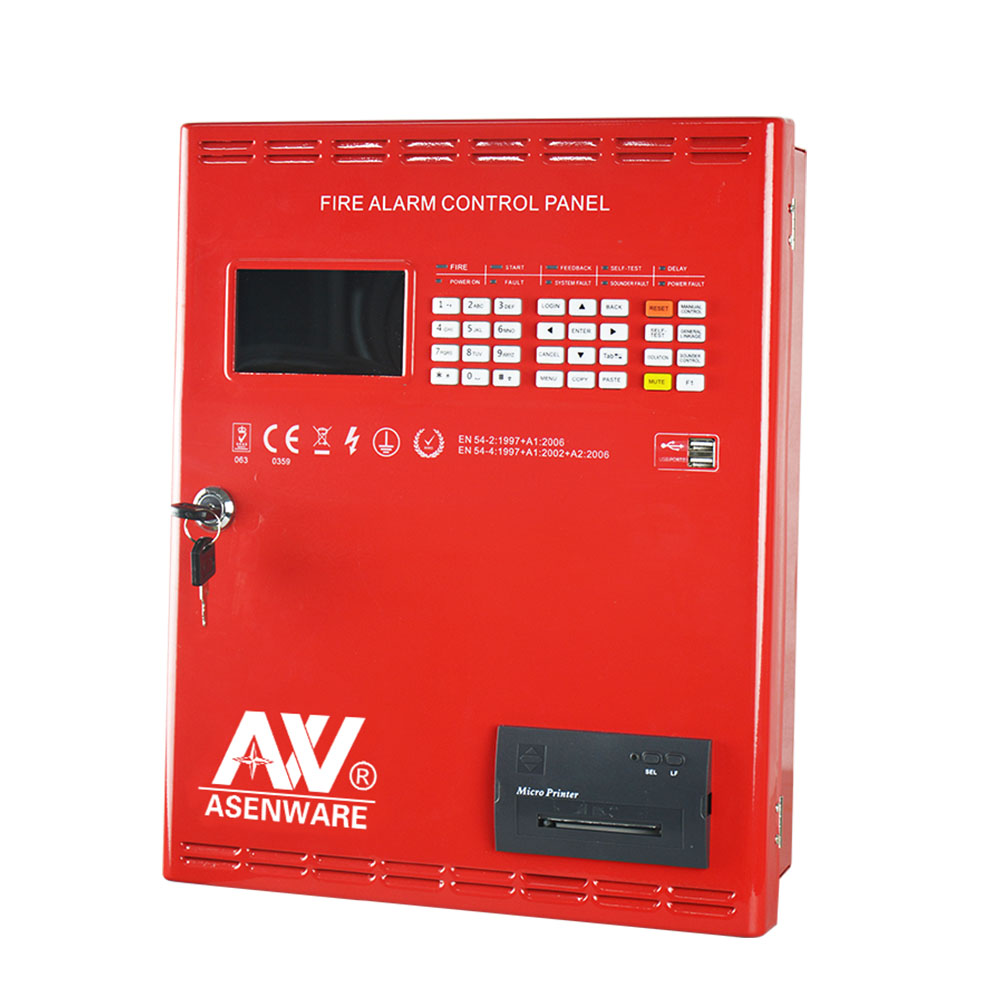

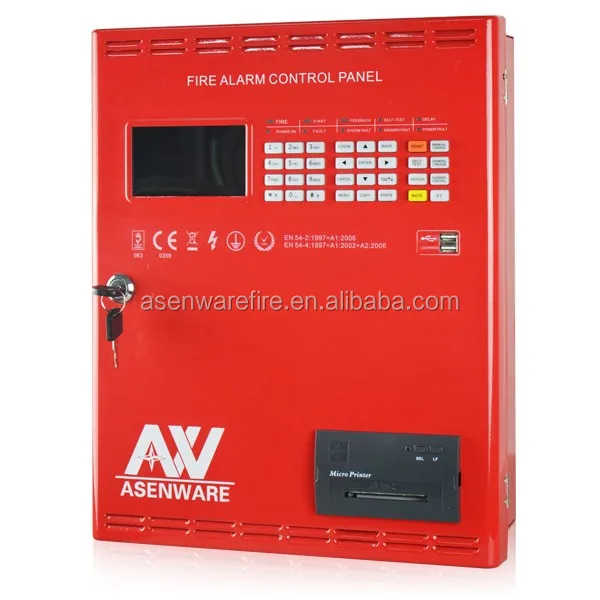

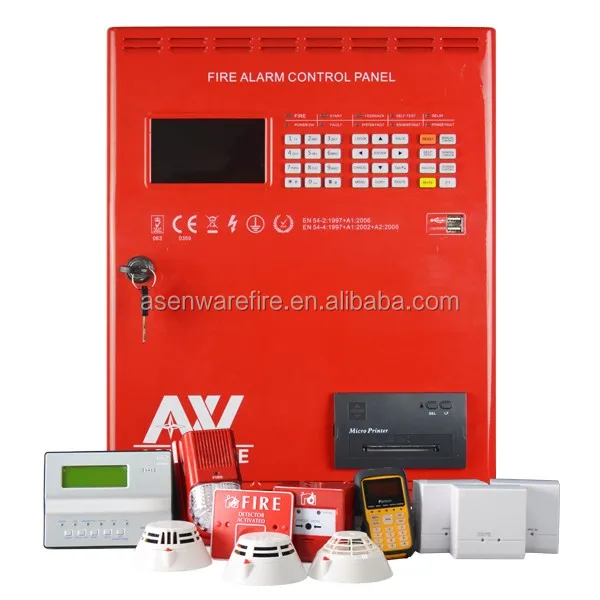

Asenware linkaged addressable fire alarm control panel 1loop, 324 addresses
fire alarm control panels,fire alarm system,professional fire detection fire alarm addressable,fire alarm control system
1. AW-AFP2189 is provided with 4.3" color display screen (LCD), with a display resolution of 430×272.
2.The operation interface imitates Windows menus and window interfaces.
3.Operation and control are flexible and convenient through the standard USB-interfaced computer keyboard and mouse + the panel buttons are used as field programming devices.
4. Use smart U disk (optional), which can be used to copy or restore setup file and historical file of the system, thus facilitating the system maintenance.
5.It adopts the non-polarity two-bus intelligent alarm linkage pattern and can connect 324 intelligent detectors or intelligent modules at most. The addresses of module detectors can be mix-programmed (optional 1-324)
6. It supports interconnection of 20 AW-AFP2189 control units and the maximum system capacity after networking reaches 20×324=6480 (alarm point)
7. The system has the function of recording operation history: 1000 pieces of historical fire alarms, historical requests, historical feedbacks, historical faults and historical operations, respectively
8. It has the modular manual single-point start/stop functions, which can facilitate field debugging and testing
9. The system is provided with a dedicated mini-printer as standard, which is used to print various operating statuses of the system immediately
fire alarm control panels,fire alarm system,professional fire detection，fire alarm addressable,fire alarm control system
10. It can be connected with PC to achieve city networking.
Power supply
Mains power supply: AC 220V±20%/50Hz or DC24V;
Backup power supply: DC24V maintenance-free battery BAT12V/5AH
addressable fire alarm system,fire detection alarm system,fire Alarm system control panel，addressable fire alarm
System operating environment
Ambient temperature: -10℃～+55℃
Ambient humidity: ≤95% (40℃±2℃, no condensation)
Addressable Fire Alarm Control Panel with 2 loops, 6 loops, 648*n address
Addressable smoke detector

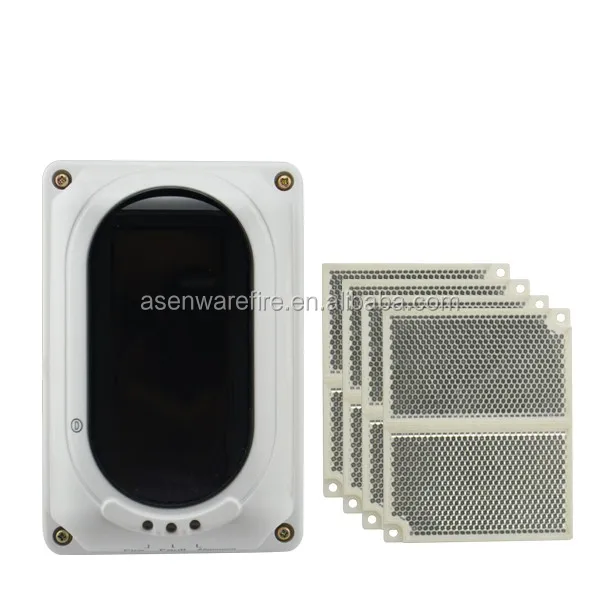

Infrared Linear Reflex Beam Smoke Detector with Reflector

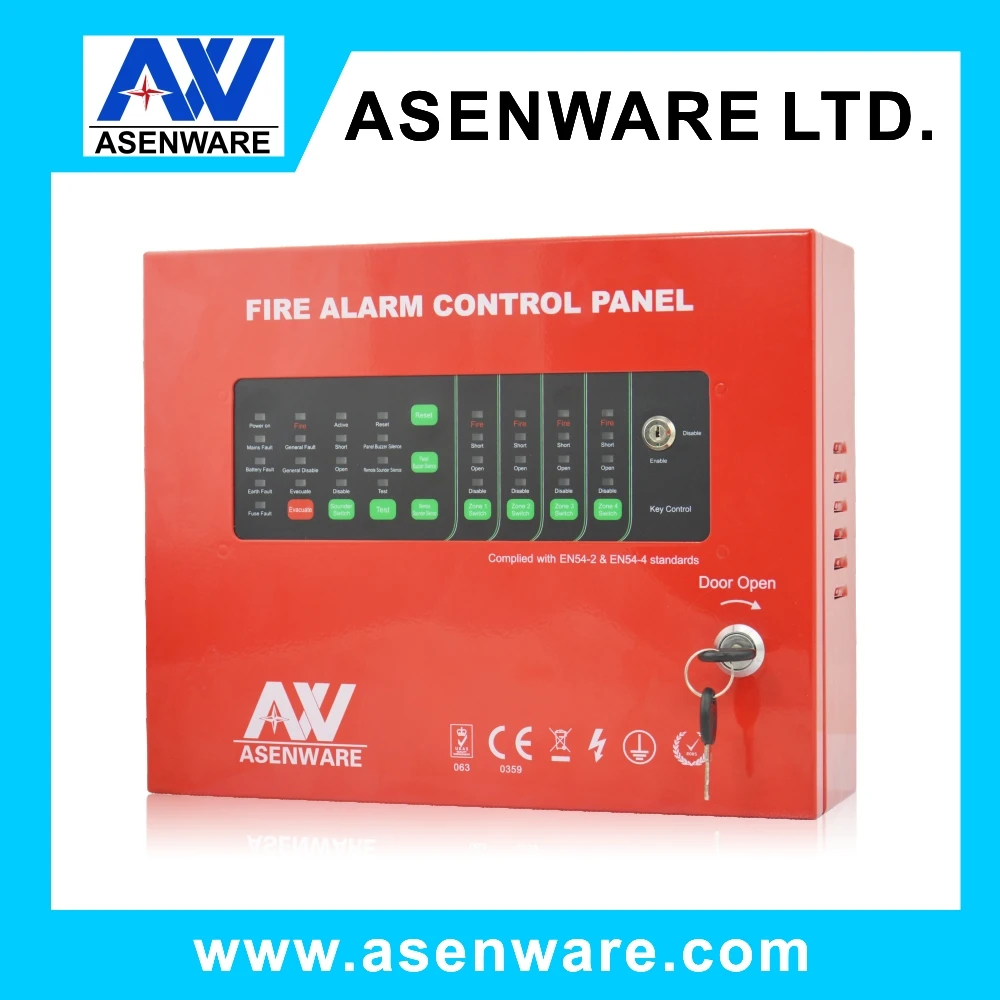

4 zone conventional fire alarm control panel, 1-32 zone is optional
conventional smoke detector (software controlled design)
Explosion- proof ultraviolet-infrared flame detector
Standard carton.
By Express, EMS,DHL,FedEx,UPS etc, by air, by sea
Asenware Test and Control Technology Co., Ltd
Asenware Test and Control Technology Co., Ltd, founded in 2005, is distinguished by the experience and expertise of more than 11 years as one of the largest manufacturers and suppliers of China’s fire and security alarm products. Asenware is also a trusted brand of fire system solutions for all customers from all over the world.
Factory
The factory is in Torch Development Zone, Zhongshan. It has a strong management team , sales team and a capable R&D team as well.
1. OEM/ODM services.
2. Professional technical team.
3. Offer Free technical support whenever you need.
4. One year warranty and technical maintenance.
Please contact me freely to get more informations.
Contact name: Bella Yu Skype: sales10_303
Tel/Whatsapp: 0086-13590136259
Email: sales10 at asenware.com
