Popular selling 4 wire cigarette smoke detector wholesale price
Specification:
Model No. | AW-CSD811 | AW-CSD811-4W | AW-CSD812 |
Photo |
|
|
|
Product name | Advantage 2 Wire Conventional Smoke Detector | Advantage 4 Wire Conventional Smoke Detector | Advantage Smoke Detector With Strobe Sounder |
Fire sensor | Photoelectric smoke chamber | ||
Sensitivity | 1.06±0.26%FT | ||
Control mode | Advantage software | ||
Connection | 2 wire | 4 wire | 2 wire |
Operating voltage | DC9-28V | ||
Standby current | 120μA | NC:11mA @24VDC NO:120uA @24VDC | 120μA |
Alarm current | <15mA | NC:2mA @24VDC NO:12Ma @24VDC | <50mA |
Material | Shell: Fire resistance plastic Connector: stainless steel | ||
Product size | Diameter: 99.45 mm, height: 48.2mm | ||
Packing | Carton | ||
Carton quantity | 10PCS/Carton; 10 Carton/Box | ||
Carton/box size | Carton: 20.5×23.5×11cm; Box: 43×27×58cm | ||
Carton/Box weight | 1.42kg/Carton; 14.2kg/Box | ||
Work temperature | -10℃~50℃ | ||
Work humidity | 95% Relative humidity, non-condensing | ||
Customization | Logo, color | ||
Standards | ISO9000,EN54-7, CE,SASO,LPCB | ||

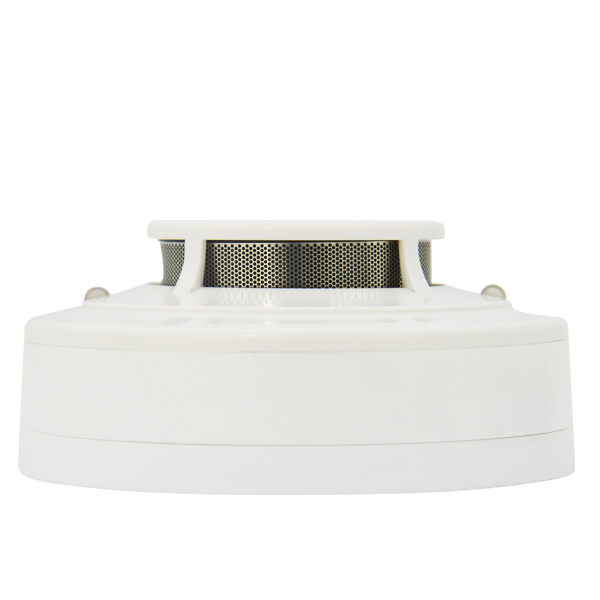

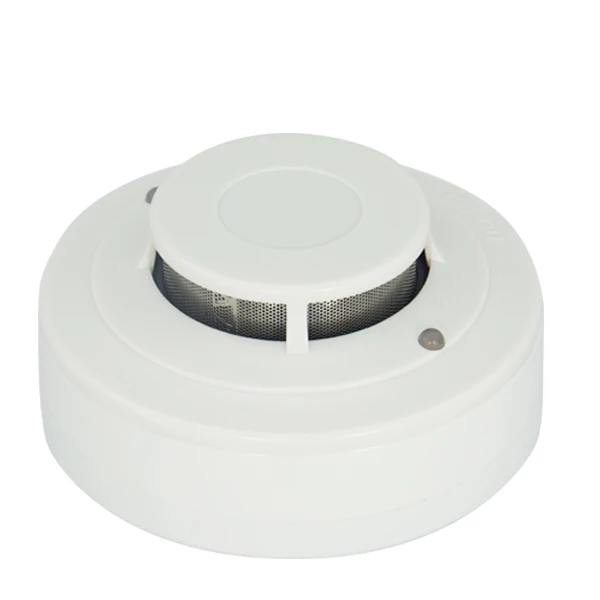

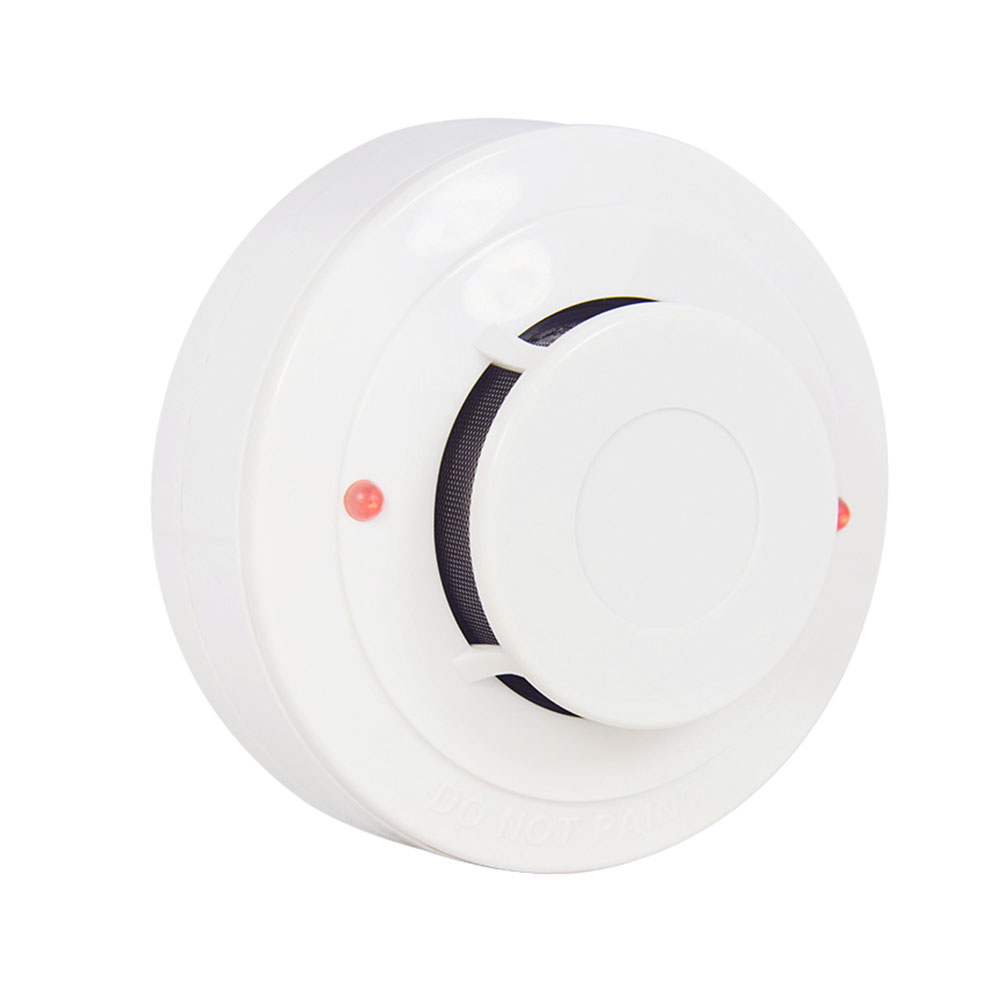

Product pictures:
About us:
Show room:
Certificate:
Why choose Asenware?
1.We have more than 10 years experiences in this field.
2.Our professional engineers are always engaging in developing new technology.
3.Meet customer demand is our consistent aim.
4.Our products are economic, user-friendly and easy maintenance.
5.Our all products shipped after testing by laboratories.
If you have any problems, feel free to contact us at any time!
