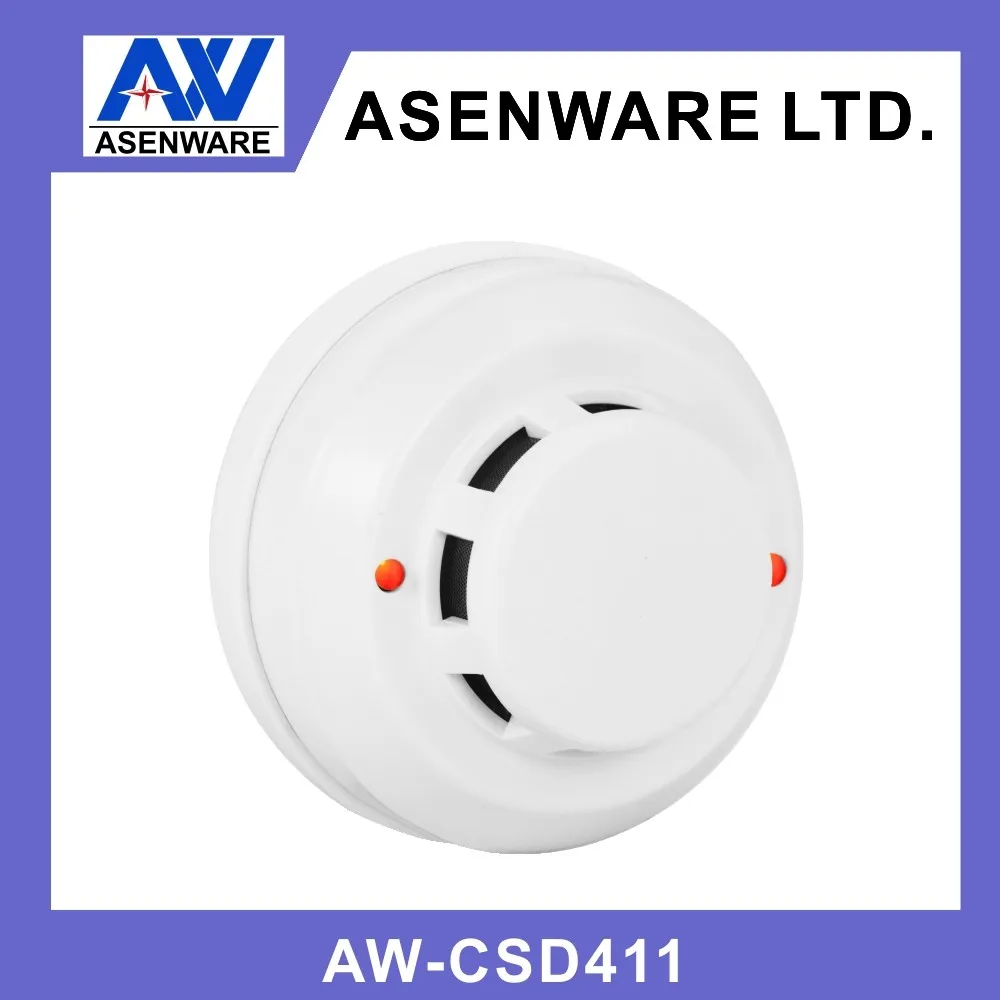

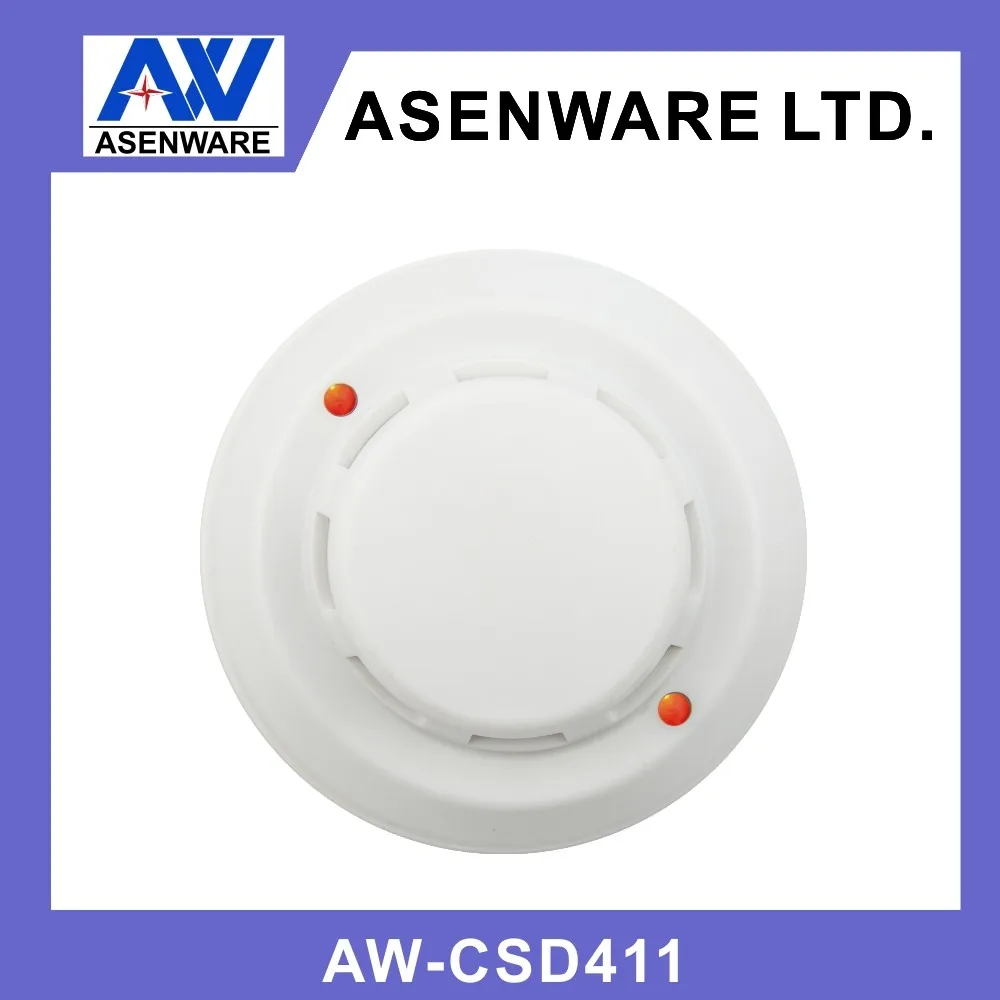

2 wire conventional fire alarm photoelectric smoke detector
Specification:
Model No. | AW-CSD411 | AW-CSD411-4W | |
Photo |  | | |
Product name | 2 Wire Conventional Smoke Detector | 4 Wire Conventional Smoke Detector | |
Fire sensor | Photoelectric smoke chamber | ||
Sensitivity | 1±2.5% /FT | 1.06±2.6%FT | |
Control mode | Analog circuit | ||
Connection | 2 wire | 4 wire | |
Operating voltage | DC40V~60V | ||
Standby current | 55μA | NC:8mA @48VDC NO:100μA@48VDC | |
Alarm current | 30mA@DC48V | NC:10mA @48VDC NO:16mA @48VDC | |
Material | Shell: Fire resistance plastic; Connector: Nickel-plated iron | ||
Product size | Diameter:103mm, height:53mm | ||
Packing | Carton | ||
Carton quantity | 1PCS/Carton, 10 Carton/box | ||
Carton /Box size | Carton: 11×6×12cm; Box: 61×41×39cm | ||
Carton /Box weight | 0.22kg/Carton; 22.3kg/Box | ||
Work temperature | -10℃~+50℃ | ||
Work humidity | 0%~95% Relative humidity, non-condensing | ||
Customization | N/A | ||
Standards | ISO9000,EN54-7, CE | ||
