High quality fire alarm panel for wireless alarm system addressable fire panel
Specification:

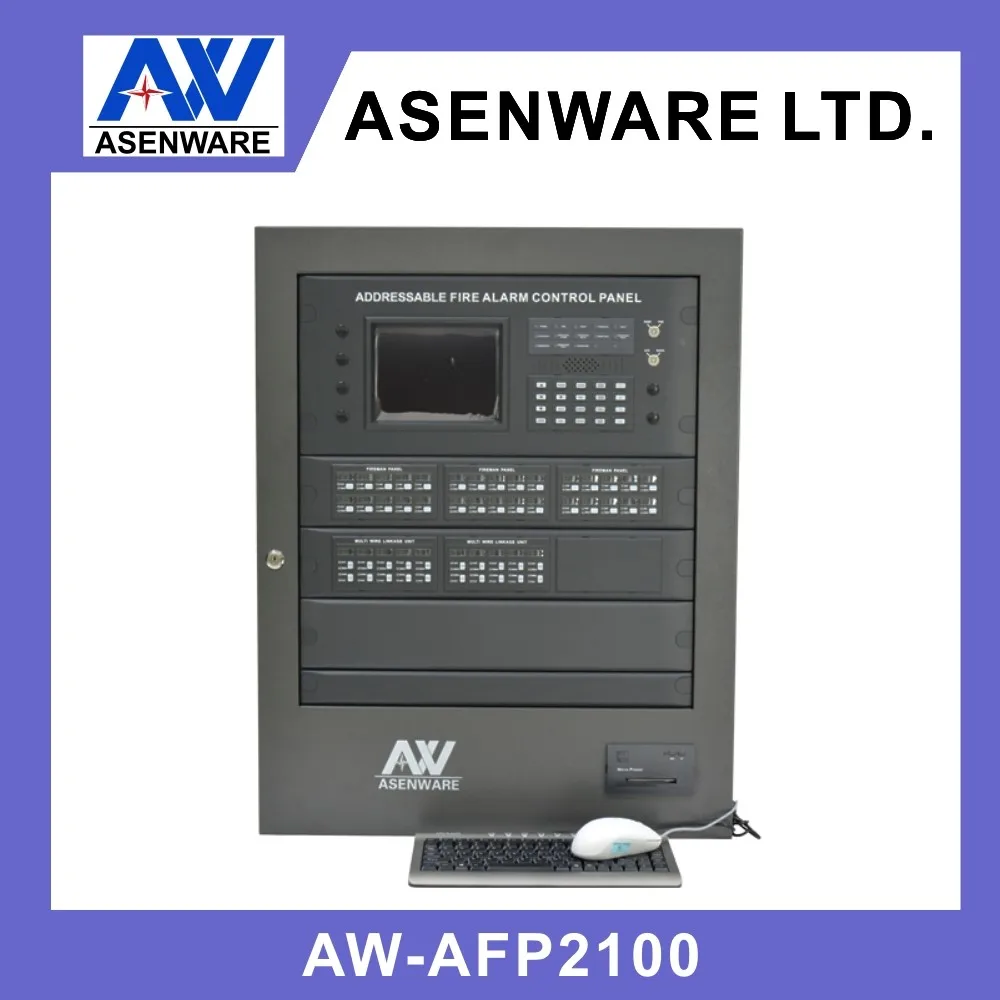

Description of Addressable Fire Alarm Control Panel System 648 Addresses
1. 32-bit MCU
2. Non-polarity analog 2 –wire addressable bus
3. Each detector sensitivity adjustable
4. Field-programmable with PS/2 standard PC keypad and mouse
5. 7.4’ LCD back-light display
6. Windows menu and interface
7. English interface and panel display
8. CF card duplicate or reset system setup fire and history fire to facilitate maintenance
9. Single point start/stop of module(menu operation)
10. Single point test of detector/ module
11. Zone, building or floor integration and display
12. Graphic monitor system visually display the location of fire and trouble
13. Eleven user each with a password and selectable access level
14. Field software upgrade
15. AW-AFP2100 peer-to-peer, long-distance optical fiber transmission network via CAN communication transform module
16. Flexible collocation by modularized combination
Technical Parameters of Addressable Fire Alarm Control Panel System 648 Addresses
Each loop card has 2 loops, with 324addresses as alarm /control points of each loop, the capacity of each loop card is 324*2=648(addresses)
Each wall mounted AW-AFP2100 panel can be installed maximum 3 loop card, the maximum capacity is 648*3=1,994 (addresses). Over 1994 addresses, use the cabinet panel. The cabinet panel can be installed maximum 40 loop cards, the maxim capacity is 648*40=25,920(addresses)
Peer-to peer with max. 20 AW-AFP2100 panels, the maximum system capacity:25,920*20=518,400 (addresses)
Operating environment:
Temperature: -10~+55
Relative humidity:95%(40, non-condensing)
AC power:220VAC,50Hz, 3A
DC power: 24 VDC,7.0Ah

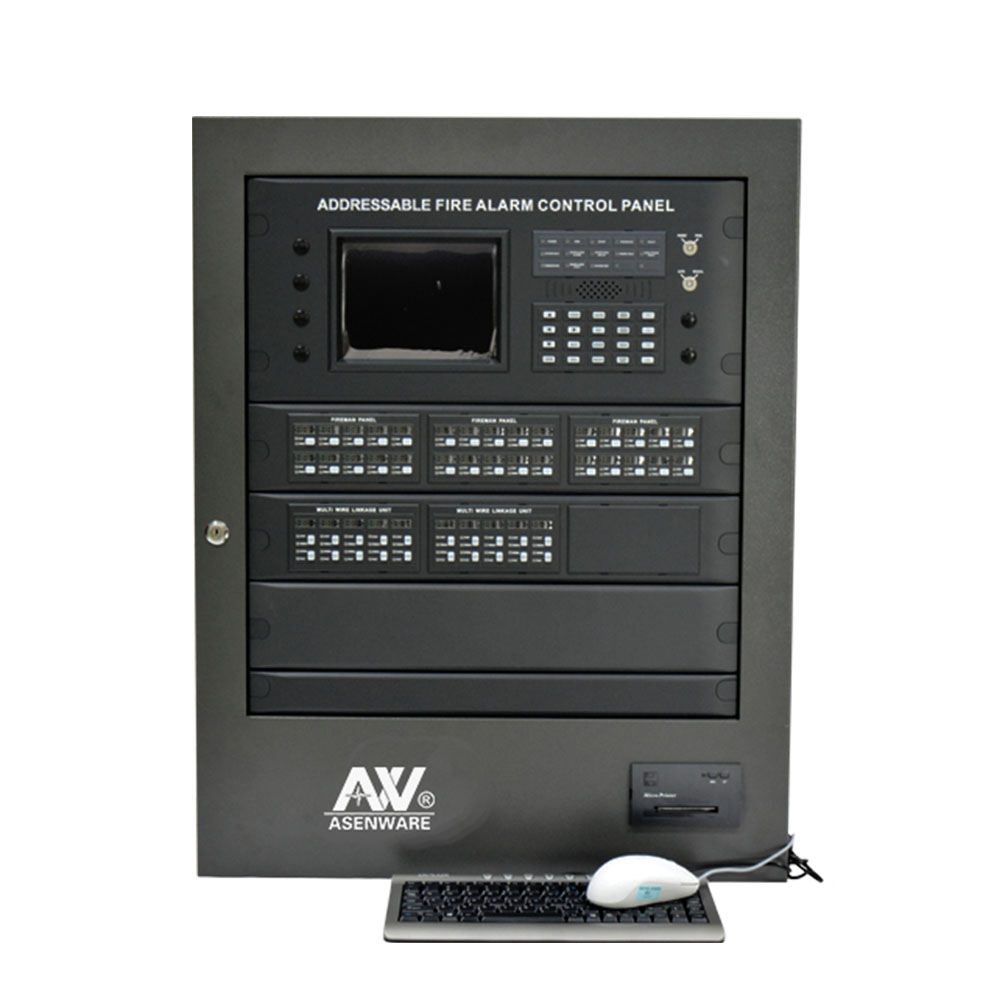

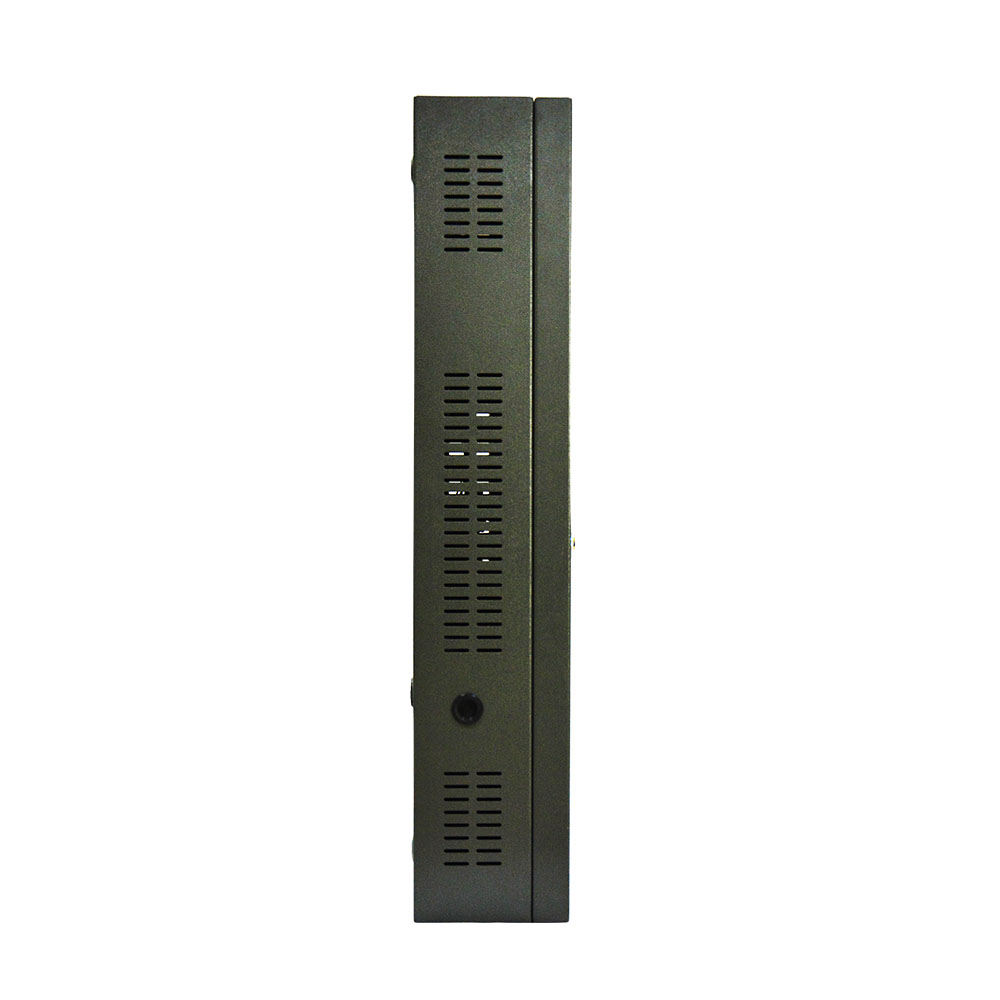

Product pictures:
About us:
Why choose Asenware?
1.We have more than 10 years experiences in this field.
2.Our professional engineers are always engaging in developing new technology.
3.Meet customer demand is our consistent aim.
4.Our products are economic, user-friendly and easy maintenance.
5.Our all products shipped after testing by laboratories.
If you have any problems, feel free to contact us at any time!
