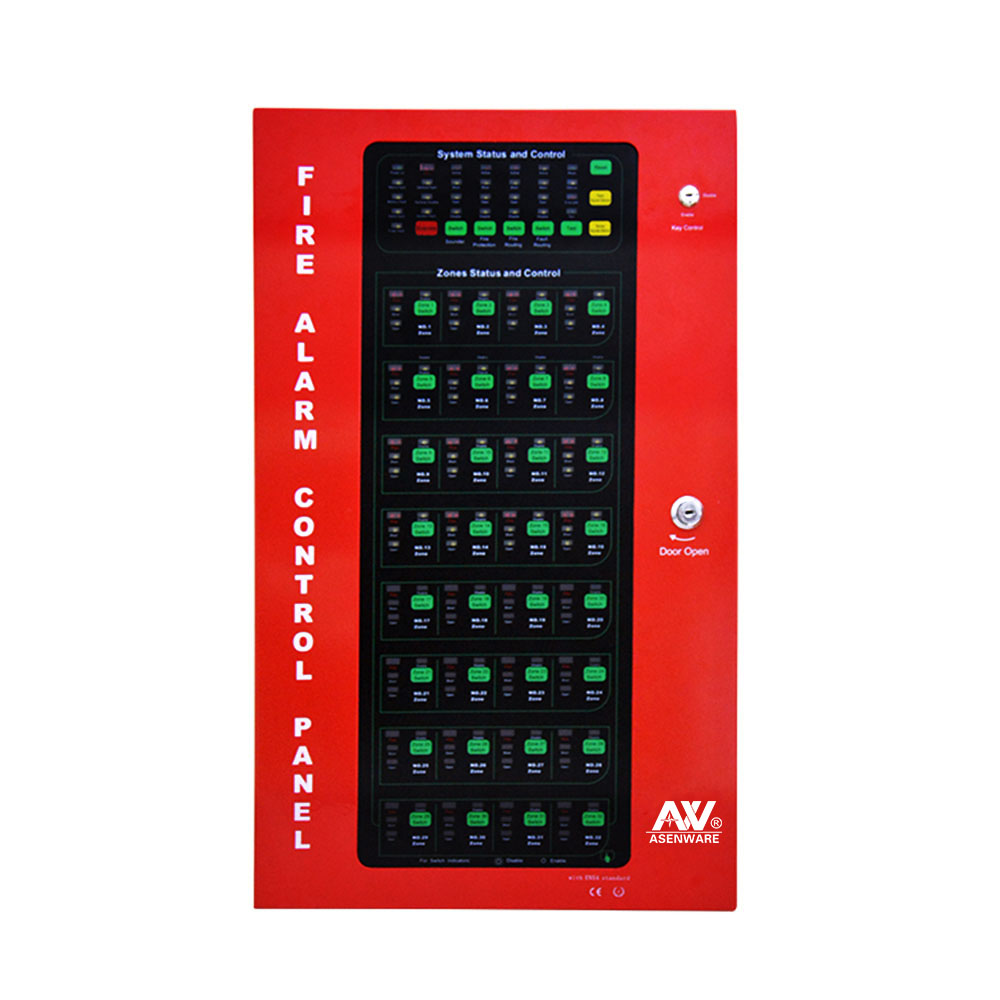

Easy installation 1-32 zone reliable conventional fire alarm panel wiring
Click on the image to view the original image
Product： views：4Easy installation 1-32 zone reliable conventional fire alarm panel wiring
Branch： Asenware
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 18:29
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Asenware
Model Number:
AW-CFP2166, AW-CFP2166
Product name:
1-32 zone Fire alarm control panel
Mains Supply Voltage:
110VAC or 240VAC
Output Current:
3A@240VAC
Battery:
12V 2AH*2
FaultOutput:
NC and NO Relay
Wiring Structure:
2-bus Wiring System
Certificate:
SASO,INTERTEK CE, ISO9001
Max detector:
20pcs
GSM module:
fire alarm by SMS
Supply Ability
Supply Ability:
2000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
carton
Port
Shenzhen or Hongkong
Product Description

Asenware conventional fire alarm control panel for fire alarm system 1-32 zone

Features:  optional GSM module for fire alarm by SMS .

1 AW-CFP2166 series conventional fire alarm panel is designed based on EN54 part 2&4 standard.
2 It is modularized design, the panel can expend from 1 zone to 32 zones easily.
3 It has 2 level control mode by a lock
4 It has 24VDC and 5VDC power supply output.
5 It has FIRE and FAULT signal output.
6 It has 2 general sounders output.
7 Each zone has 1 circuit detectors input .
8 Each zone can be disable by a button.
9 It has RESET button to reset the panel.
10 It has SILENCE button to stop BUZZER and SOUNDERS.
11 It has EVACUATE button to start a manual fire alarm immediately.
12 It has battery low protection function, when battery voltage lower than 21VDC, battery will be cut off automatically until the mains power is on.

Parameter
ITEM
1 Zone panel
2 Zone panel
4-8 Zone panel
4-32 Zone panel
Model No.
AW-CFP2166-
1
AW-CFP2166-
2
AW-CFP2166- 4-8
AW-CFP2166-
 4-32
Power specification
Mains supply voltage
110VAC or 240VAC
Internal power supply
27.2VDC
Total output current limited
500mA @240VAC
500mA @240VAC
3A @ 240VAC
3A @ 240VAC
Batteries (default configuration)
12V2AH*2
Detector circuit specification
Number of circuit
1
2
4-8
4-32
Line fault monitor for detector removal
Yes, if End of Line Monitor Unit fitted in place of End of Line Resistor
End of Line device
6.8k Ω,5% tolerance, 0.25W (color code-blue, grey, red, gold)
Detector continuity diodes
Silicon 1N4001 or Schottky type (required if End of Line Monitor Unit fitted to give Detector Removal Fault)
Call point resistor value
470 to 680 Ω, 0.225 or 0.5 watt
Maximum number of smoke/heat detectors per zone
20 (based on a total detector current of 2mA, each detector consuming 100μA).Note: if End of Line Monitor Unit is fitted, for correct operation maximum voltage drop must not exceed 12 volts.
Sounder circuit specification
Number of general circuits
2
End of line resistor value
6.8k Ω,5% tolerance, 0.25W (color code-blue, grey, red, gold)
Fire and fault output
Output type
Dry relay output :NC and NO relay; wet source output
Maximum current
100mA
Dimensions(mm)
272*200*70mm
320*231*90mm
395X502X124
362X565X124
Detailed Images
Related Products

Conventional Heat Detector With Flash and Buzzer

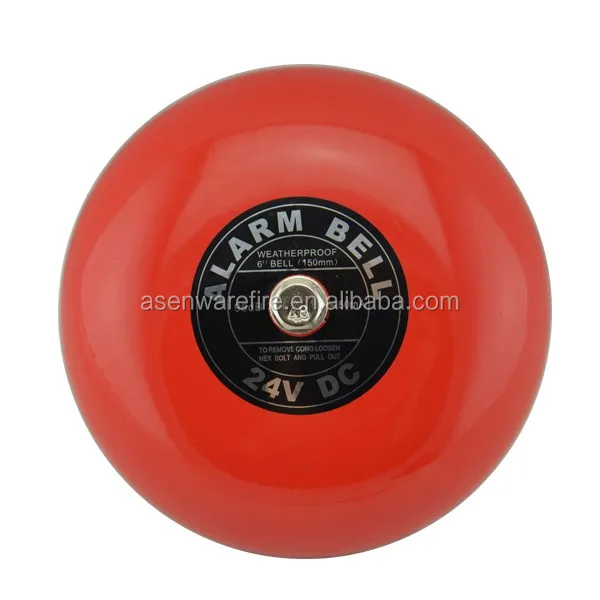

Fire bell 6"", 8"", 10""

Manual call point(break glass and resettable type)

Packing & Delivery

By Express, EMS,DHL,FedEx,UPS etc, by air, by sea.

Delivery time: one week.
