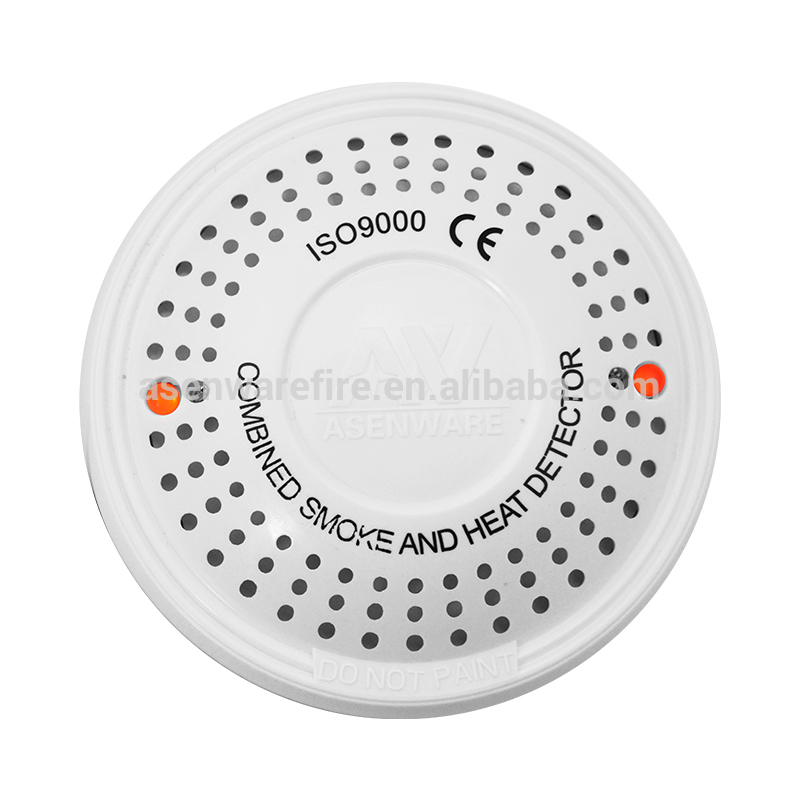

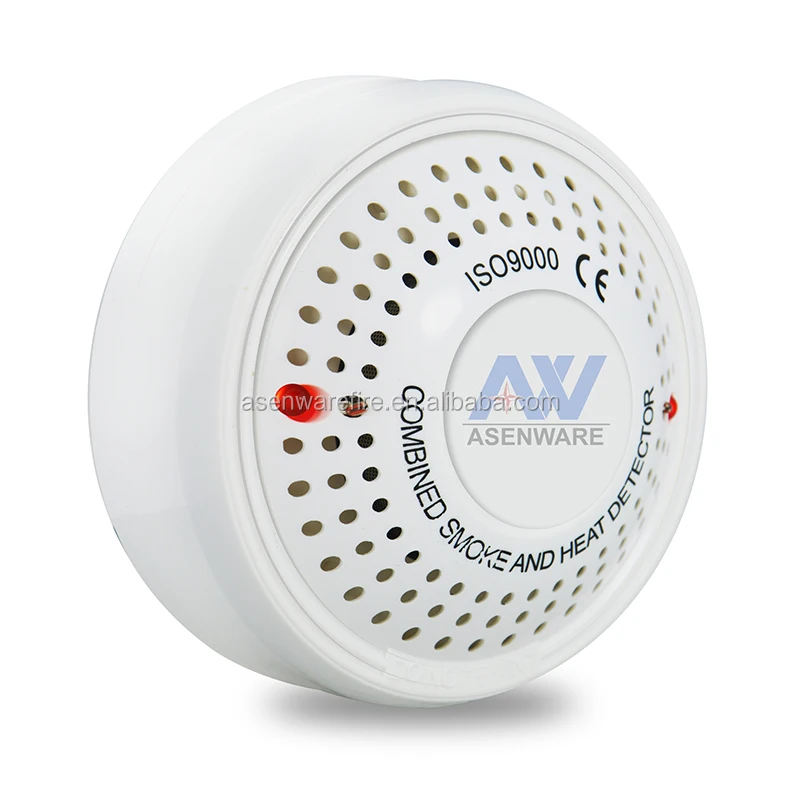

Optimal fire alarm products conventional heat sensor alarm gold detectors
Specification:
Model No. | AW-CTD321 | AW-CTD821 | AW-CTD821-4W | AW-CTD822 | |||
Photo |
|
|
| | |||
Product name | Advantage 2 wire conventional heat detector | Advantage 2 wire conventional heat detector | Advantage 4 wire conventional heat detector | Advantage heat detector with strobe sounder | |||
Fire sensor | Rate of rise temperature sensor | ||||||
Sensitivity | 7.1°C/5S AIR | ||||||
Control mode | Advantage software | ||||||
Connection | 2 wire | 2 wire | 4 wire | 2 wire | |||
Operating voltage | DC9-28V | ||||||
Standby current | 120μA | 120μA | NC:11mA @24VDC NO:120uA @24VDC | 120μA | |||
Alarm current | <35mA | <35mA | NC:2mA @24VDC NO:12Ma @24VDC | <35mA | |||
Material | Shell: Fire resistance plastic Connector: Stainless steel | ||||||
Product size | Diameter: 99.45 mm, height: 48.2mm | ||||||
Packing | Carton | ||||||
Carton quantity | 10PCS/carton, 10 carton/box | ||||||
Carton/box size | Carton: 20.5×23.5×11cm; Box: 43×27×58cm | ||||||
Carton/Box weight | 1.2kg/Carton; 12.5kg/Box | 1.39 kg/Carton 13.9 kg/Box | 1.39 kg/Carton 13.9 kg/Box | 1.39 kg/Carton 13.9 kg/Box | |||
Work temperature | -10℃~50℃ | ||||||
Work humidity | 95% Relative humidity, non-condensing | ||||||
Customization | Logo, color | ||||||
Standards | ISO9000,EN54-7, CE,SASO | ||||||
Our company
Asenware, manufacturer of fire alarm and fire suppression system since 2005. Our headquarter is in London, UK, with factory Shenzhen, China
We keep our best service for our customers, and have a rich experienced engineer team to design and install for overseas projects.
Product range:
1. Addressable fire alarm system(FP100 series,2189,2100 series)
2. Conventional fire alarm system(2166 series)
3. FM200 gas fire suppression system
4. Emergency light system
5. Fire pump system
6. Fire hose and fire hose reel cabinet
1.OEM / ODM services.
2.Professional technical team.
3.Offer Free technical support whenever you need
4.Two year warranty and technical m
Q1: Are you manufacturer?
A: (yes)
Q2: What is the lead time?
A: usually
Fire control: one week working day
bulk quality: three weeks working days
Emergency lights: two weeks working days
bulk quality: four weeks
FM200: two weeks working day
Fire pump: 25 days
Q3: How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or by Air. 3-5 days after payment received.
Q4: Can I have a sample order?
A:Yes,we welcome sample order to test and check quality.
Q5: Do you offer OEM service?
A: Yes, we can design the things according to your request.
