Product Description
AW-BK901 Asenware new product infrared reflector sensor for firesfighting system
Model NumberAW-BK901
Standard :ComplianceEN54-12
Fire Detection and Alarm Systems :BS 5839 Part 1:2002
Operating Voltage :20 V to 28 V DC
Current ParametersStandby:23mA
Standard :ComplianceEN54-12
Fire Detection and Alarm Systems :BS 5839 Part 1:2002
Operating Voltage :20 V to 28 V DC
Current ParametersStandby:23mA
Commission:40mAAlarm:33mA
Beam Sensor Sensitivity :
Level 1: 2.6 dB High Sensitivity
Level 2: 3.4 Medium Sensitivity
Level 3: 4.8 dB Low Sensitivity
Beam Path Angle :±0.5ºDirectional
LED Indicator GuideRed: Fire ; Yellow: Fault ; Green: Alignment
Reset Time :Less than 2 Second
Dimension / Weight
Level 2: 3.4 Medium Sensitivity
Level 3: 4.8 dB Low Sensitivity
Beam Path Angle :±0.5ºDirectional
LED Indicator GuideRed: Fire ; Yellow: Fault ; Green: Alignment
Reset Time :Less than 2 Second
Dimension / Weight
L:190.87 x W:126.87 x H:91.96 mm / 440 gm
Weight0.130 Kg with base
Working Principle

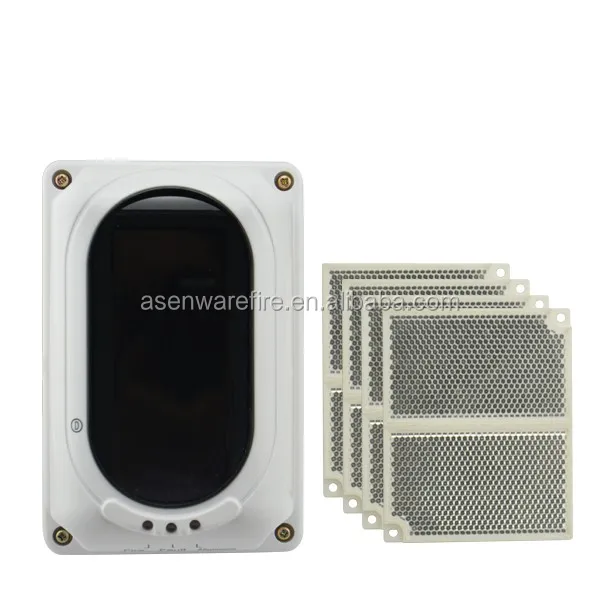

AW-BK901
The AW-BK901 reflective optical beam smoke detector incorporates a light transmitter and the detector on the same unit. The light path is created by reflecting light emitted from the transmitter off a retro-reflector, meaning it is reflects light back to its source with a minimum of scattering, which is placed opposite the detector.
In a fire, when smoke falls within the path of the beam detector, some of the light is absorbed or scattered by the smoke particles. This creates a decrease in the received signal, leading to an increase in optical obscuration. This unit decodes or analyzes received signals and compares to the pre-programmed algorithm stored on the processor. Through this algorithm the detector will decide whether fire is defined or not and lead to enablement the corresponding relays and LED indicators. The unit on the operating mode maintaining continually emitting light, care should be taken that the activities in the space do not obstruct the beam or move the device to avoid false operation of the detector.
In a fire, when smoke falls within the path of the beam detector, some of the light is absorbed or scattered by the smoke particles. This creates a decrease in the received signal, leading to an increase in optical obscuration. This unit decodes or analyzes received signals and compares to the pre-programmed algorithm stored on the processor. Through this algorithm the detector will decide whether fire is defined or not and lead to enablement the corresponding relays and LED indicators. The unit on the operating mode maintaining continually emitting light, care should be taken that the activities in the space do not obstruct the beam or move the device to avoid false operation of the detector.
Detailed
About us
Factory
Zhongshan is our factory location and we have our rich experience design engineer and hundreds of skilled workers that keeps our factory goes well .
Office
Office loacated in Shenzhen which is convenient for our customers and here we have technical engineer and professional salesman ready for you .
Certifications
Related product
AW-CTD321

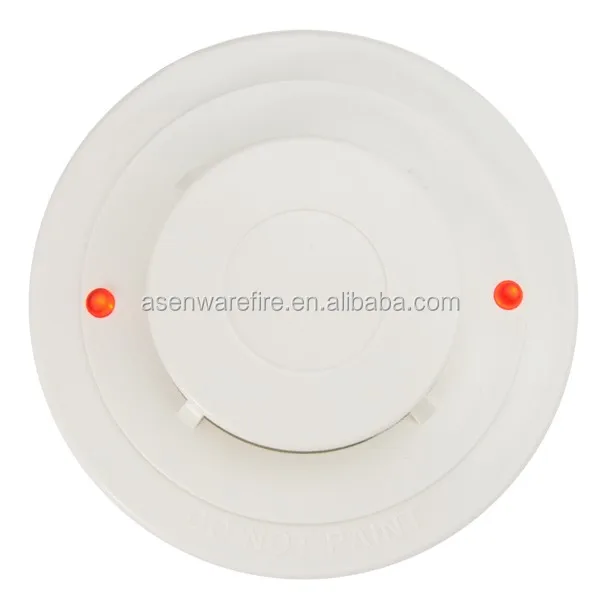

Conventional Heat Detector
AW-FD602-UV
UV Flame Detector
AW-SSD701

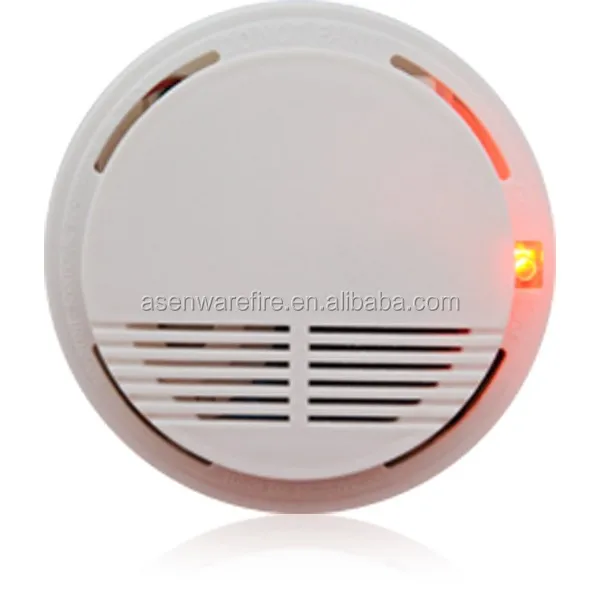

Independent Smoke Detector
