2016 new product latest security alarm equipment for output module
Overview
1:The AW -AIO2188-OUT Intelligent Input/Output Module(AW-AIO2188-OUT module for short) is used with AW-AFP2188,
a two-bus linkage fire alarm control panel.
2:It is mainly used to realize an output control for fire linkage equipment (such as smoke dampers,
blow valves and fire dampers) and receive the feedback signals of the fire linkage equipmen t so that a judgment
on whether or not the fire linkage equipment is operating normally can be done.
Features and technical parameters
| 1. Mode of operation: Nonpolar two-wire system |
| 2. Quiescent current: <0.6mA (power-down mode) |
| 3. Action current: <10mA |
| 4. Capacity of the output control contact: 2A@DC30V |
5. Operation indicator: The inspection indicator will blink once about every 12 seconds in the inspection status or remain lit in the output status; the input indicator will remain lit in the feedback status. |
6. Operating environment: Temperature: - 10℃ ~ 50℃; relative humidity: ≤95% (40℃±2℃, without condensation) |
| 7. Terminal load: 47K resistance |

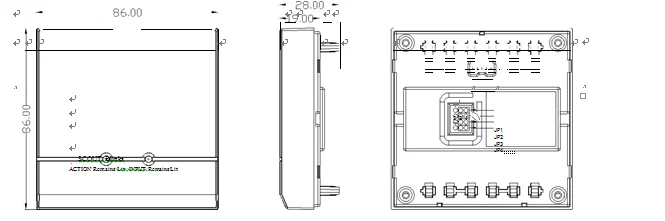

| 8. External dimensions: 86×86×40(mm) |
| 9. Weight: about 130g |
| 10. Executive standard: GB16806-2006 |

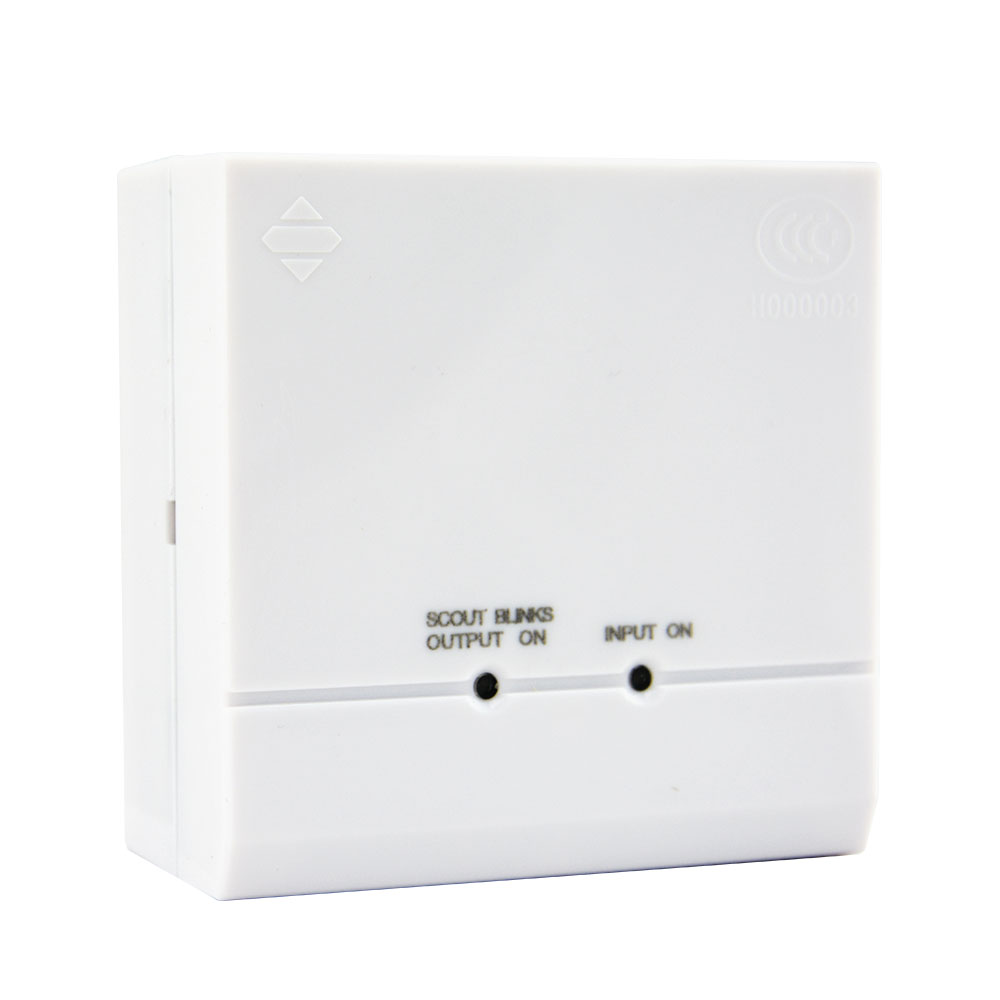

Main Body of the AW-AIO2188-OUT Module
ASENWARE was established in 2005. We have focused on the Fire Alarm and BMS(Building Management System) over 11 years.
Our headquarter is in London, UK.
We develop and manufacture addressable fire alarm system, conventional fire alarm system,
fire extinguisher, CCTV camera and DVR, and DDC for HVAC system.
Based on our ISO9001 quality control system and our experiences in BMS and NDT, we integrated a series of products in our E-Shop;
they are cost-effective and guaranteed quality.
We keep our best service for our customers, and have a rich experienced engineer team to design and install for overseas projects.
