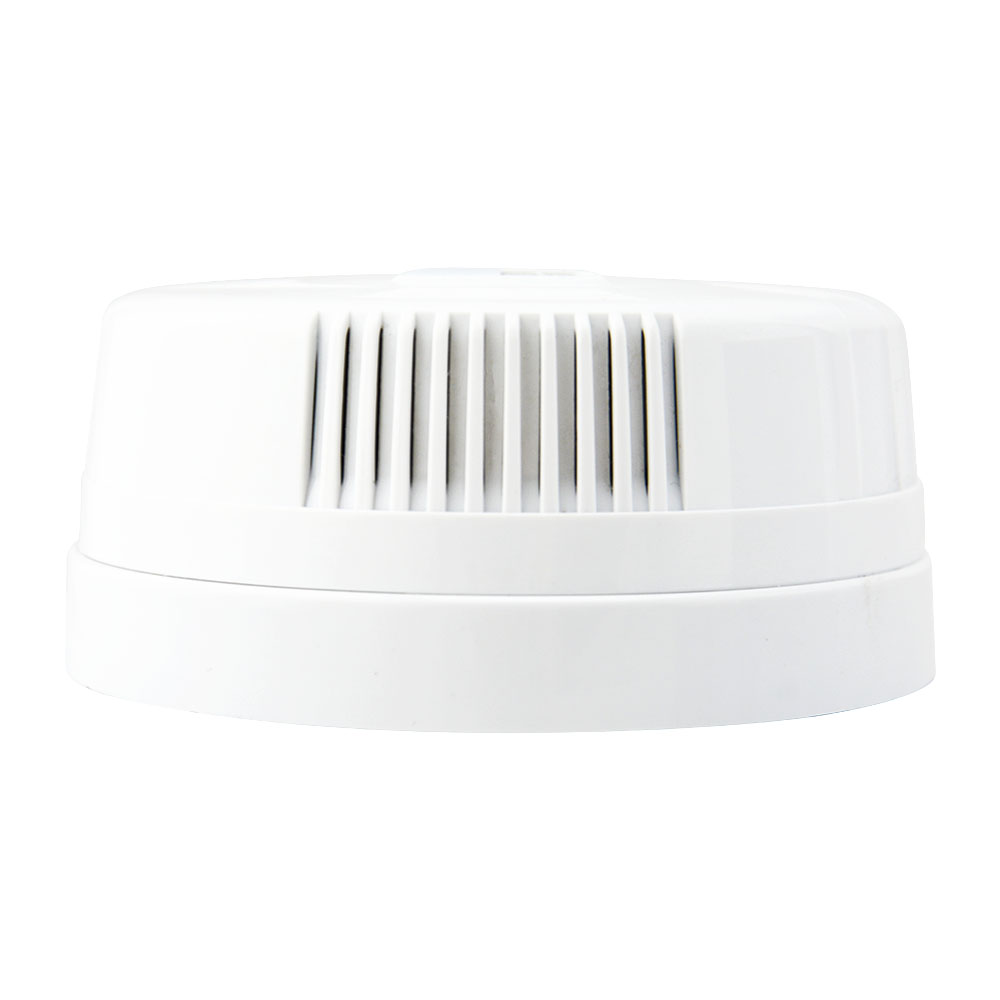

addressable hot sale high sensitive methane gas detector
I. Description
1:AW-AGD2188 type measurement range of 0-100% LEL of point combustible gas detectors (hereinafter referred to as detector)
screen printing a thick film with high quality metal oxide semiconductor sensor for detecting combustible gas leaks.
2:apply security monitoring in homes, factories, hotels, apartments and other presence of flammable gases.
3: can access the ASENWARE addressable fire alarm control system to achieve network connectivity.
II. Features
1:Detect natural gas (methane).
2:Using semiconductor gas sensor and excellent performance MCU.
3:Excellent reliability & High stability.
III:Technical Parameters
| Item | Index Parameter |
| Environment Temperature | 0℃~+55℃ |
| Working Humidity | ≤95%RH, Non-condensation |
| Operating Voltage | DC24V, Operating Voltage Range: 12~28V |
| Working Current | ≤ 35mA @DC24V (Standby), ≤ 40mA @DC24V Alarm) |
| Linkage | Non-polarity analog 2 wire bus, current < 400uA |
| Value of Detection Concentration | Natural gas 10%LEL(±30%) |
| Response time | ≤30S, Self-recovery |
| service life | >5 Year (In clean air) |
| Electricity (or reset) | The electric (or reset) indicator on the detector quickly double flash, after light according to the order of the green, red, yellow flashing light, accompanied by a buzzer hint sound. |
