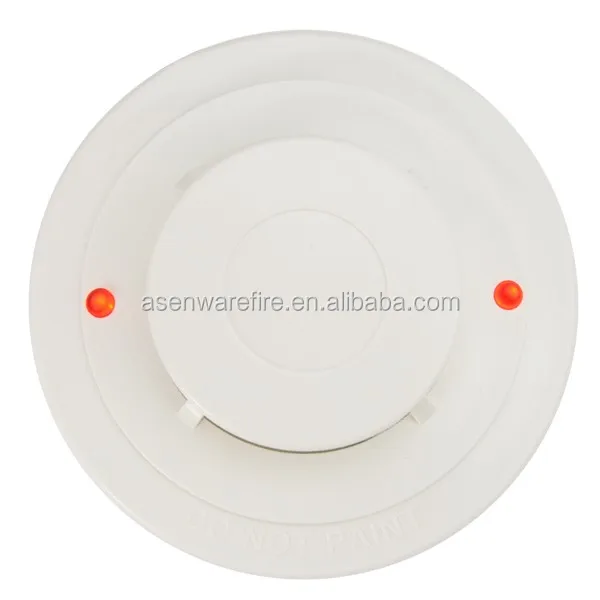

Advantage heat detector with strobe sounder
Mode No. AW-CTD822
Fire sensor:Rate of rise temperature sensor
Sensitivity :7.1°C/5SAIR
Control mode :Advantage software
Operating voltage :DC9-28V
Standby current:120μA
Alarm current|:<35mA
MaterialShell: Fire resistance plastic
Connector: Stainless steel
Work humidity95% Relative humidity, non-condensing
CustomizationLogo, color
StandardsISO9000,EN54-7, CE,SASO
Conventional photoelectric heat detector description.

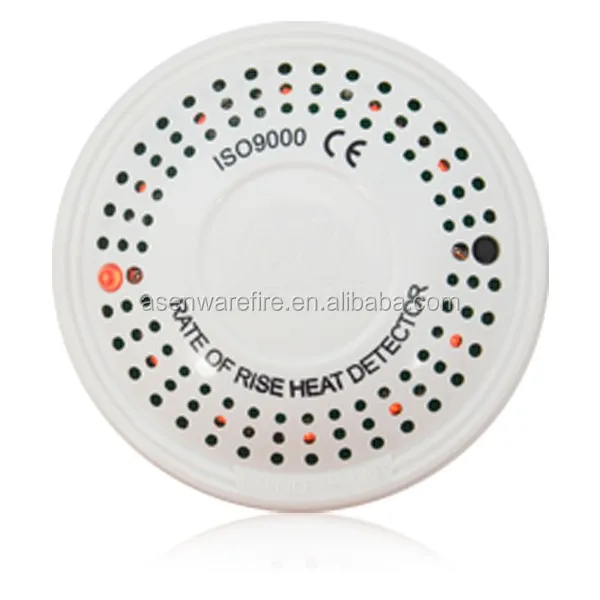

AW-CTD82X series heat detectors are rate of rise temperature type, with the advantage software. The advantage software is special designed according to EN54-7 standard, very fast fire alarm speed and environment analysis function to avoid any false alarm.
Product size : Diameter: 99.45 mm, height: 48.2mm
PackingCarton
Carton quantity10PCS/carton, 10 carton/box
Carton/box sizeCarton: 20.5×23.5×11cm;
Box: 43×27×58cm
Carton/Box weight
1.39 kg/Carton
13.9 kg/Box
AW-FD602-UV
UV Flame Detector
AW-SSD701
Independent Smoke Detector
