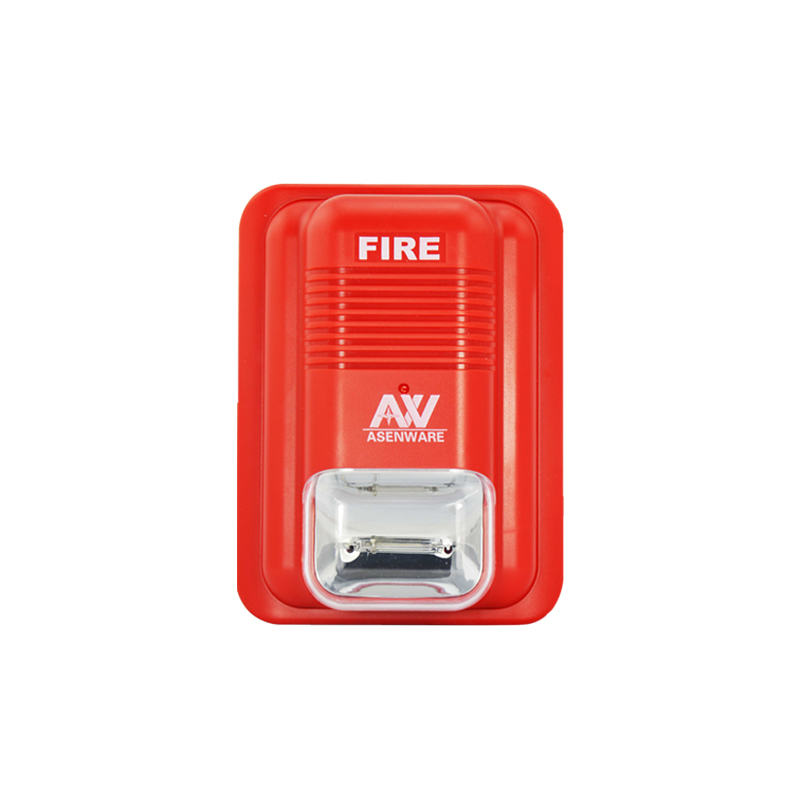

Hotsell Asenware led strobe warning light strobe sounder strobe light photography
Specification:
Purpose: The strobe horn fire alarm is a kind of terminal device for alarm; it is used for the sound & light alarm when the fire happens.
Feature: Adopt the two-wire or the four-wire system wiring method and the main line end receives two main lines, no polarization; and connect the power end to DC24V power line.
Technical specifications:
NO. | Item | Parameters | Remarks |
|
|
|
|
1 | Temperature Range | -10~+50℃ |
|
|
|
|
|
2 | Humidity Range | ≤95% RH |
|
|
|
|
|
3 | Operating Voltage | DC12-DC24 | No-polarized |
|
|
|
|
4 | Working Current | ≤60 mA |
|
|
|
|
|
5 | Flash Intensity | ≥1.2 WS |
|
|
|
|
|
6 | Flash Period | ≤1.0 S |
|
|
|
|
|
7 | Alarm Sound | ≥100 dB |
|
|
|
|
|
8 | Flash Light Lifespan | ≥40000 TIME |
|
|
|
|
|
9 | Alarm Sound Type | 3 Type sounds: Ⅰ. Ambulance Sound |
|
|
| Ⅱ. Police Car Sound |
|
|
| Ⅲ. Fire Truck Sound |
|
|
|
|
|
10 | Dimensions | 155×115×51 MM |
|
|
|
|
|
Installation:
1. At first , punch two holes in the installation place (on the wall ), the distance of the holes is 60MM, then put two plastic expansion plug into the two holes (if the wall is wooden material , it can be directly fixed with the self-tapping screws);
2. Connect to both DC24V power and network, and choose one kind of alarm sound according to requirement;
3. Use two self-taping screws to fix the alarm in the installation place, and then tighten the screws.
Product pictures:
About us:
Why choose Asenware?
1.We have more than 10 years experiences in this field.
2.Our professional engineers are always engaging in developing new technology.
3.Meet customer demand is our consistent aim.
4.Our products are economic, user-friendly and easy maintenance.
5.Our all products shipped after testing by laboratories.
If you have any problems, feel free to contact us at any time!
