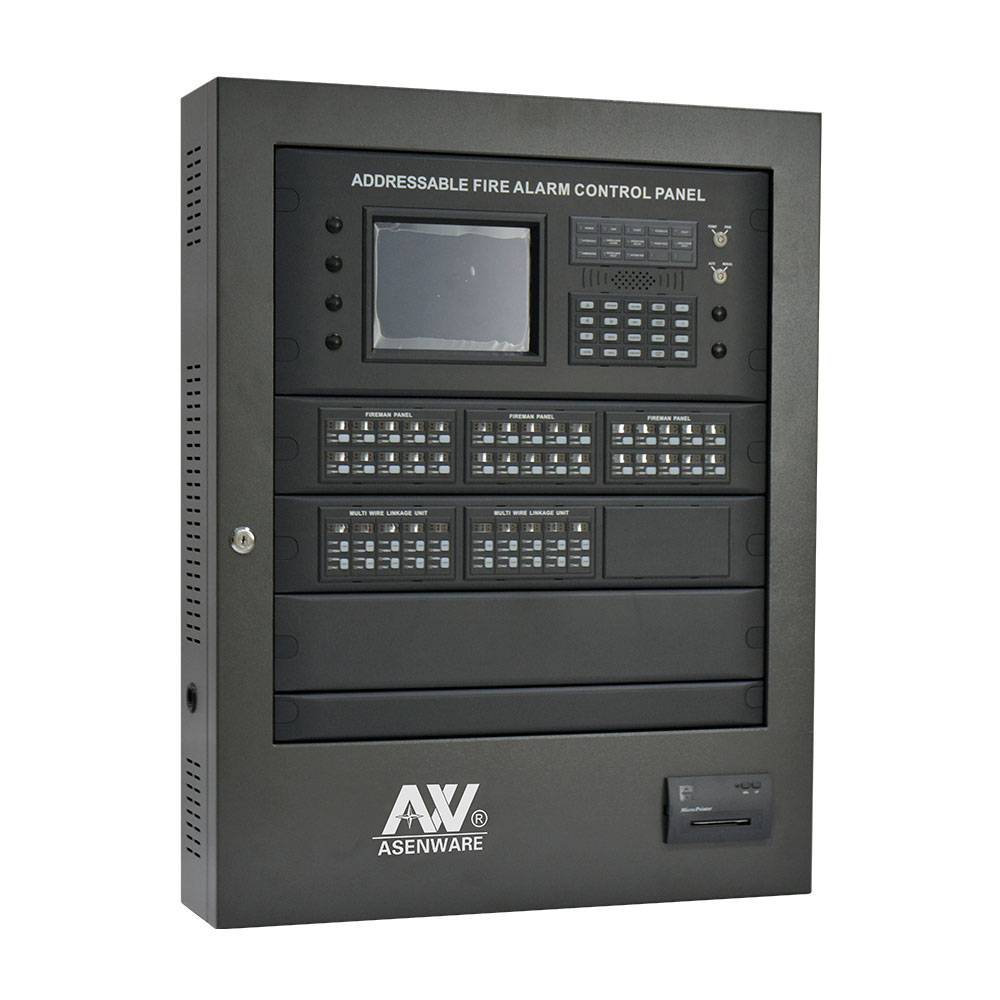

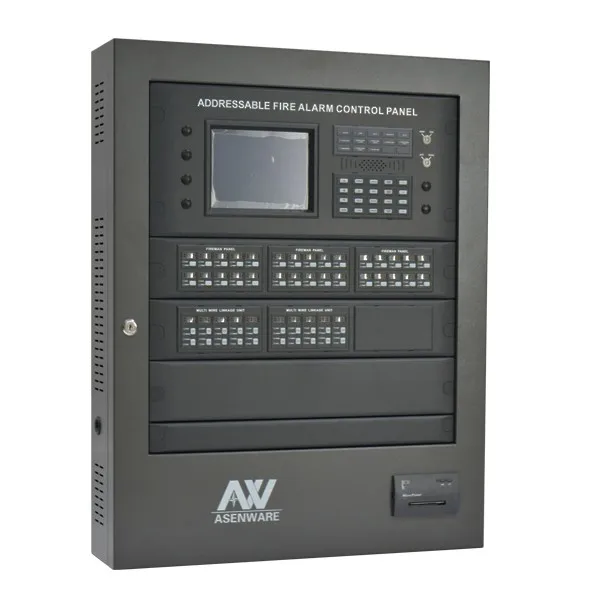

Name :Addressable Fire Alarm Control Panel
Model NOAW-AFP2100
Working EnvironmentIn door temperature:-10°C to +55°CRH:≤95%(40°C±2°C without condensation)
System Capacity:648, 1298, 1944 alarm points
Working voltage:AC 220V/50Hz
Bus linkage:30 points
Multi-wire linkage:10 points
Printer:Standard
Stand powder:DC24V/7Ah
Profile.
The fire alarm control panel AW-AFP2100 (linkage type) is a new generation intelligent fire alarm and linkage integrated control panel, which is a dual wire analog bus system and can replace the conventional fire alarm control system to save 50% or more cables.
The fire alarm control panel has a modular design and is characterized by great functions, large capacity, flexible configurations and an excellent price-performance ratio.
Each detector, module, manual call point, horn, strobe, hydrant has its own independent address, the fireman or the guard can find the exact fire alarm address instead of a wide area in conventional system.
The fire alarm and linkage control system is extensively applied in high-grade office buildings, big residence communities, department stores, gymnasiums, exhibition halls, libraries,factory buildings, supermarkets, hotels and other large and medium-sized fire protection projects.
Characters.
32-bit MCU.
2-wire communication between detector/module
Each detector sensitivity adjustable

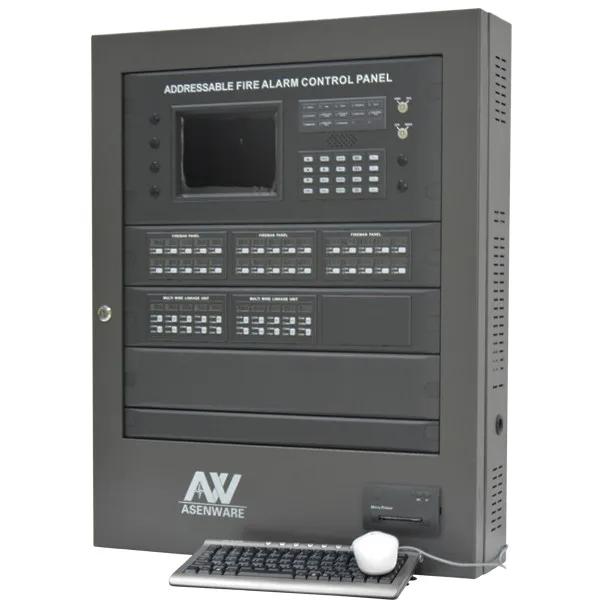

Field-programmable with PS/2 standard PC keyboard and mouse
7.4’’ LCD back-lit display
Windows menu and interface
Chinese or English interface and panel display
CF card duplicate or reset system setup file and history file to facilitate maintenance
Communicate with PC via USB
Single point start/stop of module(Menu operation)
Single point test of detector/module
Zone, building or floor display
CRT visually display the location of fire and trouble
Eleven users each with a password and selectable access levels
Field software upgrade
Flexible collocation by modularized combination
Multiple high-speed CAN-bus interfaces, ensuring quick and reliable data transmission.
Capacity.
Super high single-machine capacity (maximum single-machine capacity: 40×2×324=25,920 alarm points).
Each I/O-board has two loops, with 324 alarm/control points of each loop(Max. control points-324), the capacity of each I/O- board:2*324=648points.
Each AW-AFP2100 can connect maximum 3 I/O-boards, the capacity of each AW-AFP2100: 3*648=1944(points). Over 1944 points, the wall-mounted panel turn to cabinet panel, each cabinet panel can connect maximum 40 I/O-boards:40×2×324=25,920 (points).
Connected with a multi-line linkage control unit and has a maximum capacity of 4,000 points for a standalone linkage control unit..
