Overview
1.1 AW-FTP2008/2016 fire call Panel is a new fire dedicated communication device, when the fire accident, can provide a convenient means of communication, fire control and alarm system is essential in communications products. Wall-mounted structure, easy installation, suitable for small systems.
1.2 Switchboard equipment is composed of star fire communications systems. You need to connect an extension before the composition of the fire alarm communication system. Extension is a dedicated co-electric fire or telephone ordinary telephones.
1.3 Hook extension sound and light alarm device. When the extension and switchboard call, the corresponding extension indicator light, sound and light alarm stop.
1.4 Device can simultaneously call multiple extensions. Each extension can be inserted at any time or to exit.
1.5 Digital recording equipment, reliable, durable and automatic recording of each call.
1.6 All keys on the device panel touch keys are used, feel good, beautiful, reliable and durable.
1.7 Device working conditions: temperature 0 ~ 40 ℃, relative humidity 40% to 85%, no vibration
The main parameters for the Fire Telephone Panel and accessories:
Fire Telephone Panel
Model No.:AW-FTP2008
Characters:
1. Panel Capacity: 8zones;
2. Operation Voltage: 24VDC±10%, 220VAC;
3. Environment Temperature: 0~40°C;
4. Relative Humidity: 40%~85%;
5. Dimension: 385mm × 330mm × 120mm;
6. Gross Weight: 4.15kg.
Fire Telephone Panel
Model No.:AW-FTP2016
Characters:
1. Panel Capacity: 16zones;
2. Operation Voltage: 24VDC±10%, 220VAC;
3. Environment Temperature: 0~40°C;
4. Relative Humidity: 40%~85%;
5. Dimension: 385mm × 330mm × 120mm;
6. Gross Weight: 4.15kg.

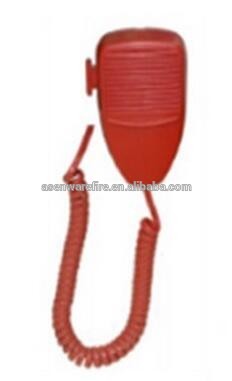

Fire Telephone Speaker
Model No.: AW-FTS2008
Parameter:
1. Compatiable with Fire Telephone Panel;
2. Operating Voltage: AC220V 50HZ OR DC24V;
3. Alarm Current: ≤0.5A;
4. Temperature Range: 0℃~+40℃;
5. Humidity Range: 40%~85%RH NO VIBRATION;
6. Dimension: 90mm * 55 mm *35mm.

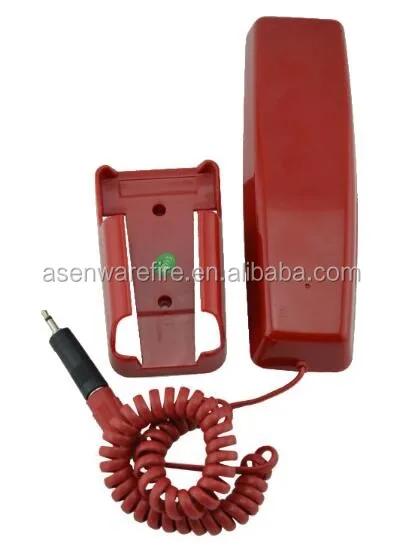

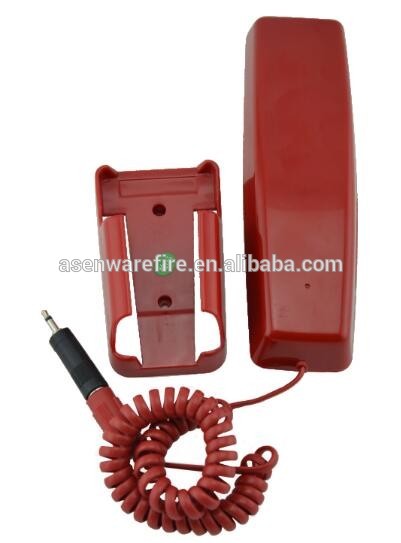

Fire Telephone Wall-mounted
Model No.: AW-FHS101
Parameter:
1.Frenquency Range: 300-3400Hz(±3dB);
2.Crosstalk Level: ≤-60dB;
3.Sending Allowance: ≤5dB;
4.Dimension: 209mm * 60mm * 45mm;
5.Gross Weight: 150g.

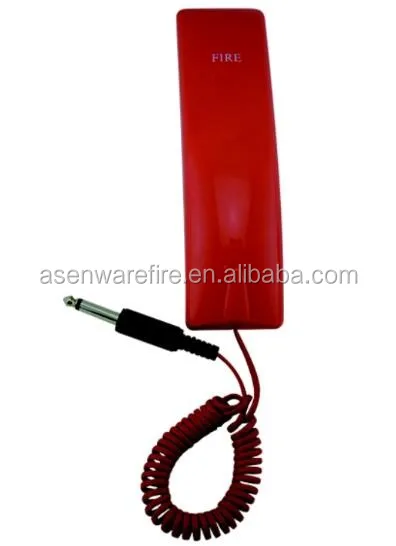

Fire Telephone Mobile Handset
Model No.: AW-FTM2008
Parameter:
1. Mobile hanset compatible with fire telephone jacks;
2. Operating Voltage: AC220V 50HZ OR DC24V;
3. Alarm Current: ≤0.5A;
4. Temperature Range: 0℃~+40℃;
5. Dimension: 75mm * 45 mm *20mm.

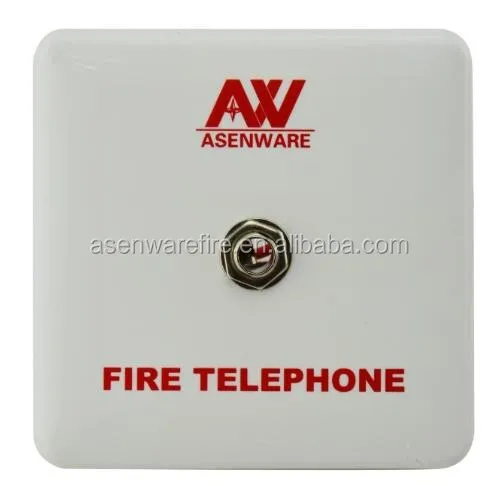

Telephone Jack
Model No.: AW-FTJ101
Parameter:
Operating Voltage:AC220V 50HZ OR DC24V;
Dimension: 85 mm * 8.5 mm * 10mm.
Fluorescent T5 Emergency Light
LED Lamp Emergency Light
Emergency Light surface exit indicator sticker is optional
Economic Twin Spot Emergency Luminaires
Control mode at optional: Emergency only,Or On/Off switch +Emergency
Twin Spot Emergency Luminaires with switch
Each lamp spot can be switched ON/OFF. Each lamp has 6 LEDs to supply high luminance.
Twin Spot emergency luminaires with 4 switches
