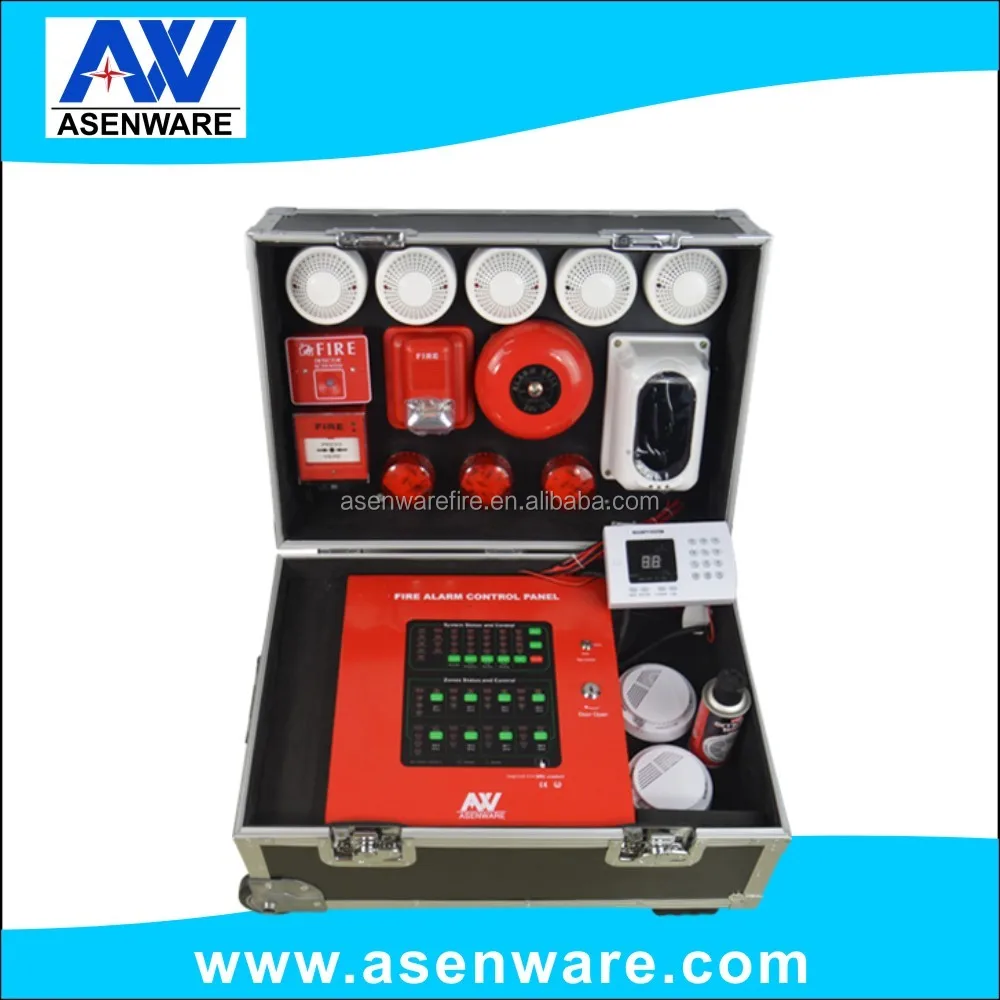

competitive price conventional fire smoke alarm control panel display demo case
Technical Parameters: 4 Zone Conventional Fire Alarm Control Panel,conventional fire alarm control Panel,4zone conventional fire alarm control Panel,prices fire alarm systems,conventional fire alarmsysteml

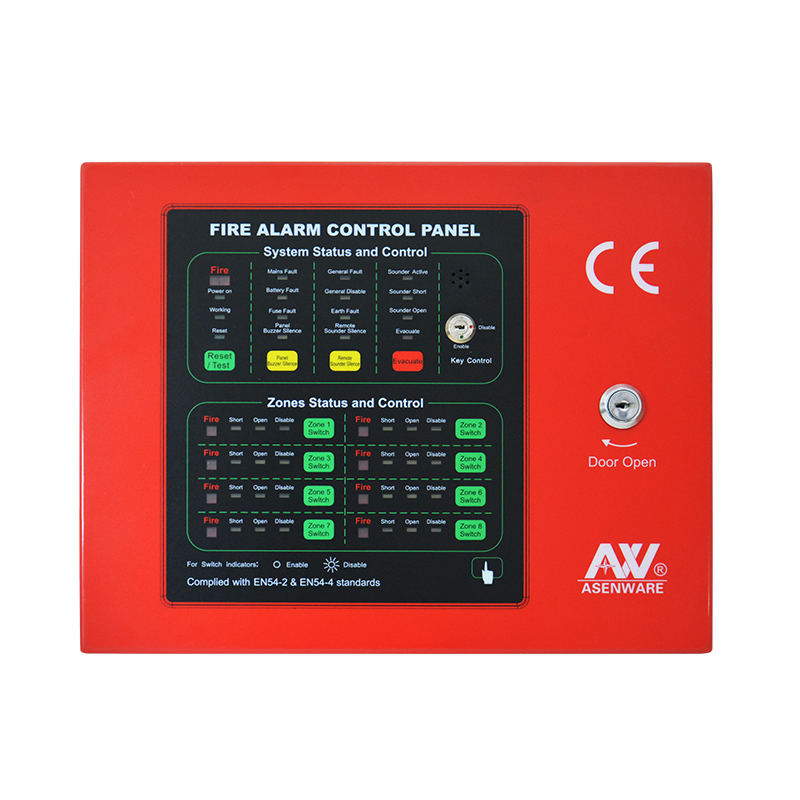

ITEM | 4 Zone panel |
|
|
Model No. | AW-CFP2166-4 |
|
|
Power specification |
| ||
Mains supply voltage | 110VAC or 240VAC | ||
Internal power supply | 27.2VDC | ||
Total output current limited | 3A @ 240VAC |
| |
Main supply monitor for fault | Yes | ||
Battery protection for low voltage | Yes | ||
Batteries (default configuration) | 12V2AH*2 | ||
Detector circuit specification |
| ||
Number of circuit | 4 |
| |
Line fault monitor for open circuit | Yes | ||
Line fault monitor for short circuit | Yes | ||
Line fault monitor for detector removal | Yes, if End of Line Monitor Unit fitted in place of End of Line Resistor | ||
End of Line device | 6.8k Ω,5% tolerance, 0.25W (colour code-blue, grey, red, gold) | ||
Detector continuity diodes | Silicon 1N4001 or Schottky type (required if End of Line Monitor Unit fitted to give Detector Removal Fault) | ||
Call point resistor value | 470 to 680 Ω, 0.225 or 0.5 watt | ||
Maximum number of smoke/heat detectors per zone | 20 (based on a total detector current of 2mA, each detector | ||
Conventional Fire Alarm System Item List:
| Item name | Model number | Quantity |
| Conventional Fire Alarm Panel 4-zone | AW-CFP2166-4 | 1 |
| Conventional Photoelectric Smoke Detector | AW-CSD811 | 1 |
| Conventional Heat Detector | AW-CTD821 | 1 |
| Conventional Smoke & Heat Detectors | AW-CSH831 | 1 |
| Conventional Manual Call Point | AW-CMC2166-5 | 1 |
| Conventional Strobe Sounder | AW-CSS2166-2 | 1 |
| Fire Alarm Bell 6" | AW-CBL2166-A-6 | 1 |
| Conventional Flash Light | AW-CBL2166 | 3 |
| Infrared Linear Reflex Beam Smoke Detector 100M | AW-BK901-100 | 1 |
| Reinforced Demo Box | AW-BOX01 | 1 |
| Entrance LED/Door Indicator | AW-EL2166 | 1 |
| Conventional Gas Detector | AW-LPG841 | 1 |
| Conventional CO Detector | AW-CCO851 | 1 |

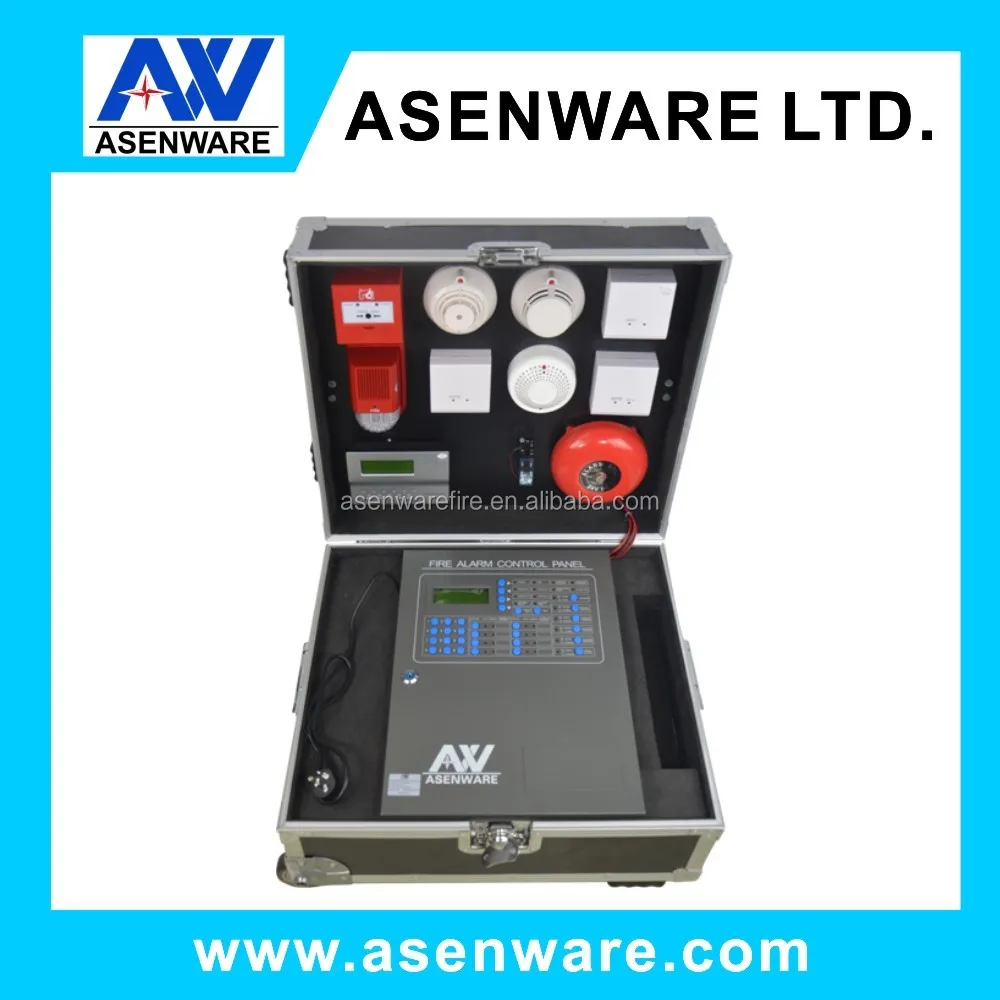

Addressable fire alarm system demo box:
Packaging Details: Cartons, plywood case
Shipping:deliver by air mail or ship for your order( EMS, DHL,FedEx,UPS).
Delivery Time: one week.P
1. We offer OEM/ODM service.
2. Quality assuance and rliabilty
3. Professional and experienced R&D center can offer free technical support.
4. One year warranty and technical maintenance.
1. Certificate: CE, ISO9001
2. Payment terms: T/T,L/C,Western union,Money Gram.
3. Warranty: One year
Please contact me freely to get more information. conventional fire alarm control Panel,4zone conventional fire alarm control Panel,prices fire alarm systems,conventional fire alarm panel
| Name: | Bella Yu |
| Skype: | sales10_303 |
| Tel: | 0086-755-27663815-804 |
| ID: | cn1512961300 |
| Email: | sales10 @asenware.com |
Asenware specialized in the Fire Alarm and BMS over 10 years.
We develop and manufacture addressable fire alarm system, conventional fire alarm system and CCTV Security alarm system etc.
We can provide complete fire alarm solution.
