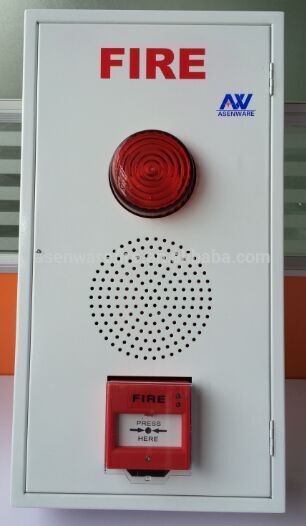

CE approval horn strobe/speaker/manual call point 3 in 1 panel for addressable fire detection alarm system
CE approval horn strobe/speaker/manual call point 3 in 1 panel for addressable fire detection alarm system
Characteristics:
1. Strobe + Bell+ Manual call point 3 in 1 panel
2. Strobe + Speaker + Manual call point 3 in 1 panel
3. Horn Strobe + Speaker + Manual call point 3 in 1 panel
It can be available for conventional fire alarm panel and addressable fire alarm control panel.
Parameter:
Name : | Fire Alarm Bell | |||
Model No. | Diameter | Work voltage | Work current @ 24VDC | Volume (dB) |
AW-CBL 2166-A-6 | 6” (150mm) | DC24V AC110V AC230V | 25 mA | 95 |
AW-CBL 2166-A-8 | 8” (200mm) | 97 | ||
AW-CBL 2166-A-10 | 10” (250mm) | 100 | ||
Name : | Flash light |
Model NO.: | AW-CBL2166 |
Parameter: Color: red (default),green, yellow, blue Work voltage: 12VDC, 24VDC(default) Light head diameter: 65mm, Height: 50mm | |
Name : | Manual call point |
Model NO.: | AW-CMC2166-1 |
Parameter: Working voltage: 220VAC/50Hz or 24VDC Maximum current:5A (220VAC/50Hz) or 8A(24VDC) Contactor resistance: ≤0.1Ω Size: 88*88*53mm | |
alarm conventi
We have 5 series products:
1. 2100 series: addressable fire alarm and control system for big project, minimum addresses are 648,648*2,648*n.
2. 2188 series: addressable fire alarm system for small project, 100/200/324 addresses.
3. 2166 series: conventional fire alarm system, we have 1-32 zone panel.
4. 2158 series: automatic fire extinguishing controller.
5. emergency light and exit light.
Please contact me: Skype: sales10_303, email: sales10 @asenware.com
Packaging:
Shipping: By sea or by air / express.
1. OEM/ODM services.
2. Professional technical team.
3. Professional and experienced R&D center can offer free technical support.
4. One year warranty and technical maintenance.
1. Certificate: CE, ISO9001
2. Payment terms: T/T,L/C,Western union,Money Gram.
3. Delivery Time: about 5 days after payment received.
4. Warranty: One year
2.Our professional engineers are always engaging in developing new technology.
3.Meet customer demand is our consistent aim.
4.Our products are economic, user-friendly and easy maintenance.
5.Our all products shipped after testing by laboratories.
If you want to know more details, please feel free to contact us:
