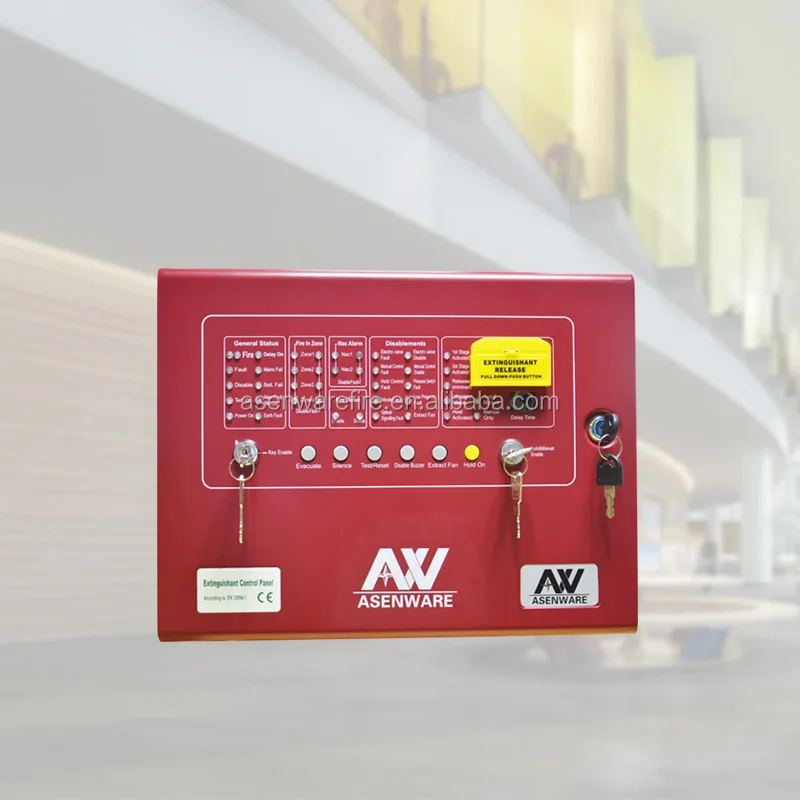

AW-GEC2159 Asenware Automatic Gas Extinguisher Control Panel
Introduction:
The automatic extinguisher control panel is designed in accordance with European standards EN54-2 and EN54-4 Fire Detection and Fire Alarm systems - Control and Indicating Equipment and EN12094-1 Fixed firefighting systems - Components for gas extinguishing systems - Part 1: Requirements and test methods for electrical automatic control and delay devices.
The control equipment is a combined fire alarm control panel and extinguishing system and has four detection zones, any or all of which are capable of contributing to the extinguishant release decision. Control panels have an integral, mains powered battery charger and power supply designed in accordance with the requirements of EN54-4.
| ITEM | ELECTRICAL RATING | COMMENT |
| Size | 383mm W*295mm H*87mm D metal | |
| Weight | 5kg | |
| Mains supply | 90 to 270VAC, 50Hz/60Hz | |
| Mains supply fuse | 3Amp (F3A L250V) | Replace only with similar type |
| Power supply rating | 3 Amps total including battery charge 28V+/-2V | |
| Maximum ripple voltage | ≤200 millivoits | |
| Battery type | Two 12 Volt sealed lead acid in series. | 7Ah maximum |
| Battery charge voltage | 27.6VDC nominal | |
| Battery charge current | 0.7A maximum |
