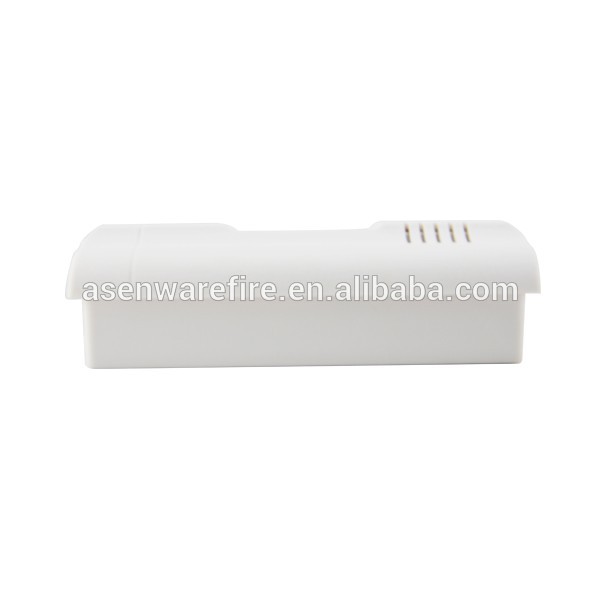

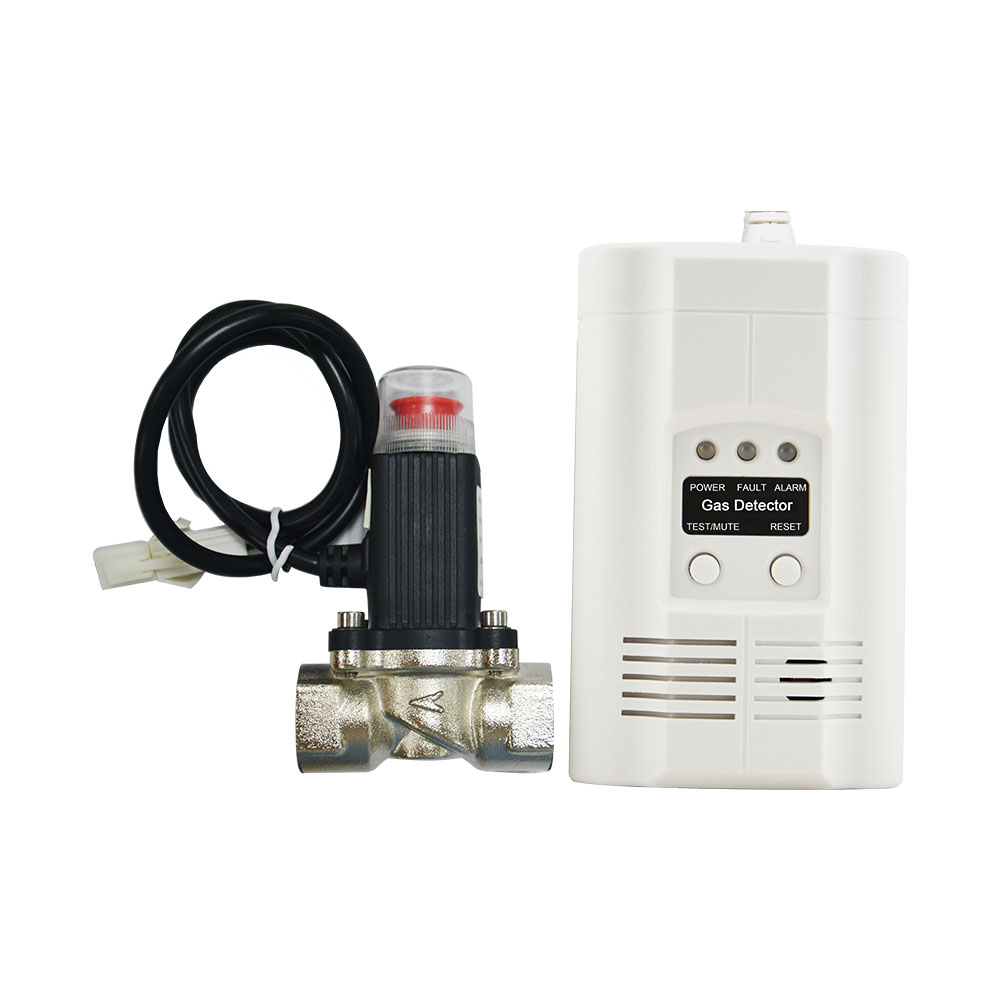

Household LNG / CO leak detector
1. Brief introduction : Household LNG / CO leak detector
1.1.Combustible gas detector (hereinafter referred to as this detector) with advanced microprocessor technology development of combination of long life and good quality of gas sensitive element;
1.2.For the spread of the combustible gas cause of fire, explosion and poisoning accidents can be carried out safety monitoring and early warning;
1.3.has a high sensitivity, good reliability and resistance to cigarettes, alcohol, and automatic temperature compensation function;
1.4.Widely used in the factory, family, hotel, apartment need to combustible gas such as safety monitoring sites.
2. Features:
2.1.Gas sensitive element:Combustible gas:Catalytic combustion type, good linear, work stability;
2.2. Small volume, simple installation, easy to use;
2.3 Passive often opened with a set of relay output normally closed contacts and a set of solenoid valve control signal output.(Optional, control type)
2.4. Wireless signal 315MHZ (Or 433MHZ); Can be convenient to match with security and fire control system. (Optional, wireless type)
Household LNG / CO leak detector
| Parameters of Conventional Gas Detector | |
| Operating Voltage | AC90V-270V, or DC9-28V |
| Output Current | Relay Output (2A@DC24V, 1A@220VAC) (only for relay output module) Voltage Output(DC12V pulse or steady) (only for control module) |
| Alarm Horn | >80dB |
| Operating Envirnment | Operating Temperature: -10℃ to +50 ℃ Ambient Humidity:≤95% RH |
| Other Specific Details | Threshold ( Lower Explosive Limit): LNG Gas: 5000ppm(10%LEL) CO Gas: 50ppm-150ppm (alarm in less than 15 mintutes) |
| Sensor life | >3 Years |
| Size( with Base ) | 122mm(H) x 76mm(W) x 38mm(D) |
Household LNG / CO leak detector
Household LNG / CO leak detector
1. Independent R&D center which can offer free technical support and project budget.
2. Sales: 24-hour online prompt reply as well as standard quotation.
3. After-sales: one year warranty and technical maintenance.
Plz click the picture if have any interests :
1. All-round technical support: Yes
2. Warranty: One year
3. Delivery time: Usually about 2 to 5 days.
4. Certificate: CE LPCB ISO9001
5. Payment terms: T/T,L/C,Western union,Money Gram.
6. Shipping Packing: Paper carton or wood carton at option.
7. Modes of transportation: DHL,TNT,EMS,FedExpress,UPS,etc
