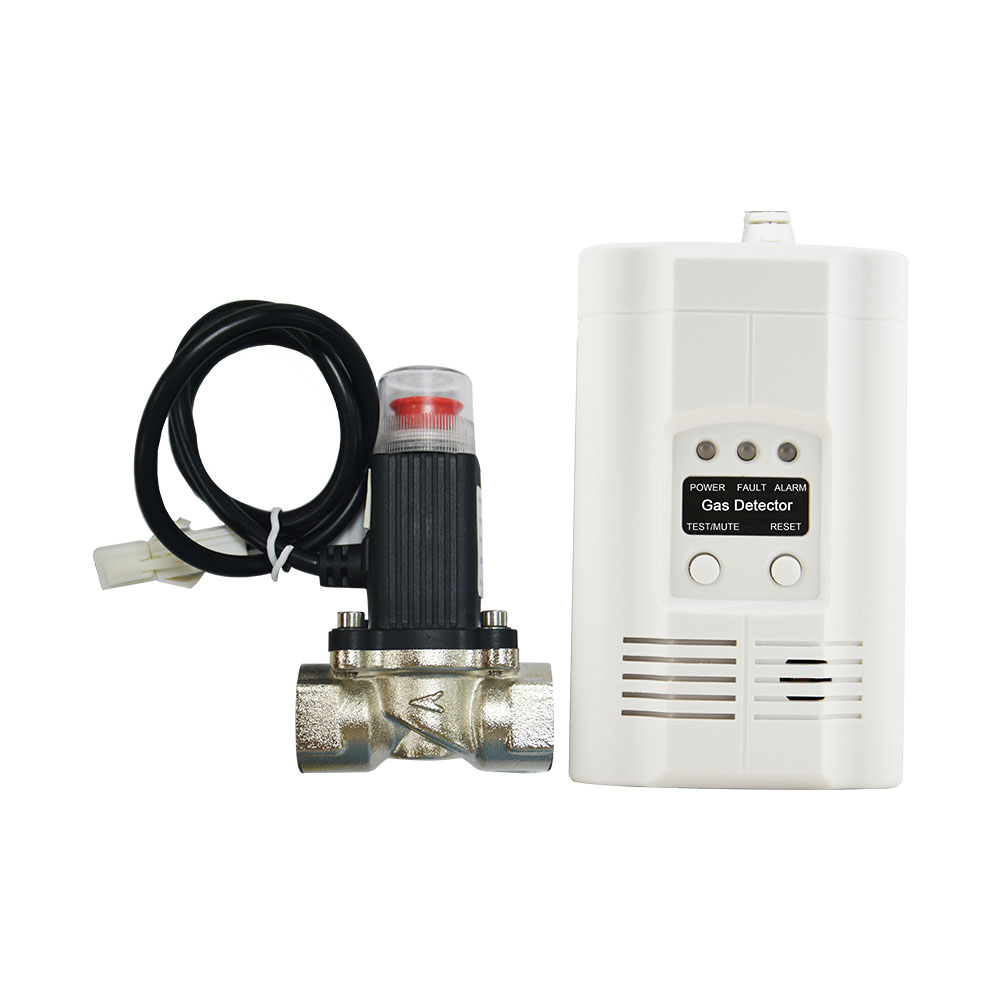

AC Power alarming LNG leak sensor
1. Brief introduction : AC Power alarming LNG leak sensor
1.1.Combustible gas detector (hereinafter referred to as this detector) with advanced microprocessor technology development of combination of long life and good quality of gas sensitive element;
1.2.For the spread of the combustible gas cause of fire, explosion and poisoning accidents can be carried out safety monitoring and early warning;
1.3.has a high sensitivity, good reliability and resistance to cigarettes, alcohol, and automatic temperature compensation function;
1.4.Widely used in the factory, family, hotel, apartment need to combustible gas such as safety monitoring sites.
2. Features:
2.1.Gas sensitive element:Combustible gas:Catalytic combustion type, good linear, work stability;
2.2. Small volume, simple installation, easy to use;
2.3 Passive often opened with a set of relay output normally closed contacts and a set of solenoid valve control signal output.(Optional, control type)
2.4. Wireless signal 315MHZ (Or 433MHZ); Can be convenient to match with security and fire control system. (Optional, wireless type)
AC Power alarming LNG leak sensor
| Parameters of Conventional Gas Detector | |
| Operating Voltage | AC90V-270V, or DC9-28V |
| Output Current | Relay Output (2A@DC24V, 1A@220VAC) (only for relay output module) Voltage Output(DC12V pulse or steady) (only for control module) |
| Alarm Horn | >80dB |
| Operating Envirnment | Operating Temperature: -10℃ to +50 ℃ Ambient Humidity:≤95% RH |
| Other Specific Details | Threshold ( Lower Explosive Limit): LNG Gas: 5000ppm(10%LEL) CO Gas: 50ppm-150ppm (alarm in less than 15 mintutes) |
| Sensor life | >3 Years |
| Size( with Base ) | 122mm(H) x 76mm(W) x 38mm(D) |
AC Power alarming LNG leak sensor
AC Power alarming LNG leak sensor
1. Independent R&D center which can offer free technical support and project budget.
2. Sales: 24-hour online prompt reply as well as standard quotation.
3. After-sales: one year warranty and technical maintenance.
Plz click the picture if have any interests :
1. All-round technical support: Yes
2. Warranty: One year
3. Delivery time: Usually about 2 to 5 days.
4. Certificate: CE LPCB ISO9001
5. Payment terms: T/T,L/C,Western union,Money Gram.
6. Shipping Packing: Paper carton or wood carton at option.
7. Modes of transportation: DHL,TNT,EMS,FedExpress,UPS,etc
