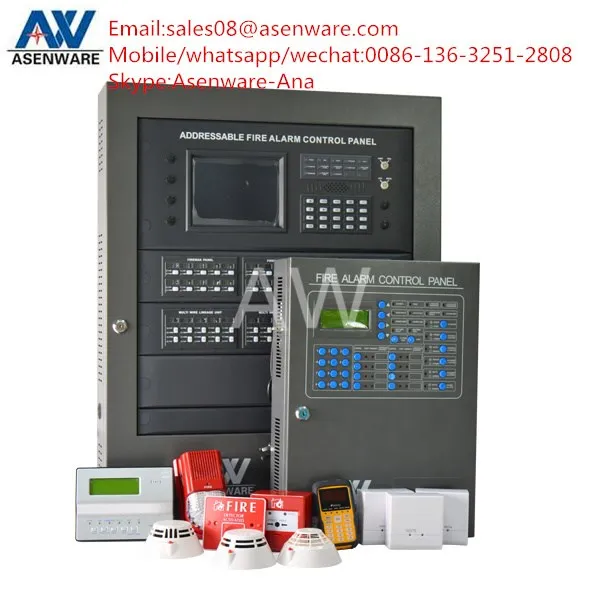

8 loop fire alarm addressable fire detection panel and parts
Why need Asenware firm alarm system?
1.Competitive price
(Factory of fire alarm systems,save your much cost)
2.Good quality
(All products CE standard,strong QC team to make sure the quality)
3.Offer building design service,better help you win bids!
4.Best after sale service
(If you have any question after purchased our products,our engineers can
answer your all technique questions 24 hours online)
2100 system:min point is 648 address,max 80 loops
2188 system:100,200,324 point
Offer budiling design service,help you win project!
Parameters:
The 2188/2100 series have the below detectors and accessories:
1. AW-ASD2188: addressable photoelectric smoke detector
2. AW-ATD2188: addressable fixed temperature heat detector
3. AW-ASH2188: addressable smoke and heat combined detector
4. AW-AMC2188: addressable manual call point
5. AW-ASS2188: addressable hooter/horn
6. AW-AIO2188-IN: addressable input module
7. AW-AIO2188-OUT: addressable out module
8. AW-CODERF900E: coder for setting address
9. AW-RP2188: repeater
Capacity
1.AW-AFP2188 system capacity: 324 points (non-polarity, two wire bus, fully mixed coding)
2.AC input voltage: AC 220V±20% 50Hz
3.AC input power: 120W
4. DC power: DC24V 5.0Ah, two fully sealed maintenance-5.free DC12V 5.0Ah storage batteries connected in series
6.The 24V DC power has a long-term constant output current of 6A.
7.The 5V DC power has a long-term constant output current of 4A.
8.Circuit bus: two-wire system; total length: ≤1500m
9.Voltage UL of the circuit bus:
10.+20V≤UL≤+26V(when the DC power is operating)
11.+24V≤UL≤+26V(when the AC power is operating)
12.System working conditions
Temperature: -10℃~+50℃
Humidity: ≤95%
Power supply:AC 220V 50HZ
DC 24V 6A
Output contact capacity:AC 220V 1A
DC 27.6V 3A
Asenware is a professional manufacturer of fire alarm systems.
Our main producst:fire alarm panel,smoke detector,heat detector,bells etc.
Our factory(Conventional fire detection system fire alarm panel system)
Certification
Our clients
Welcome you inquiry us at any time!
