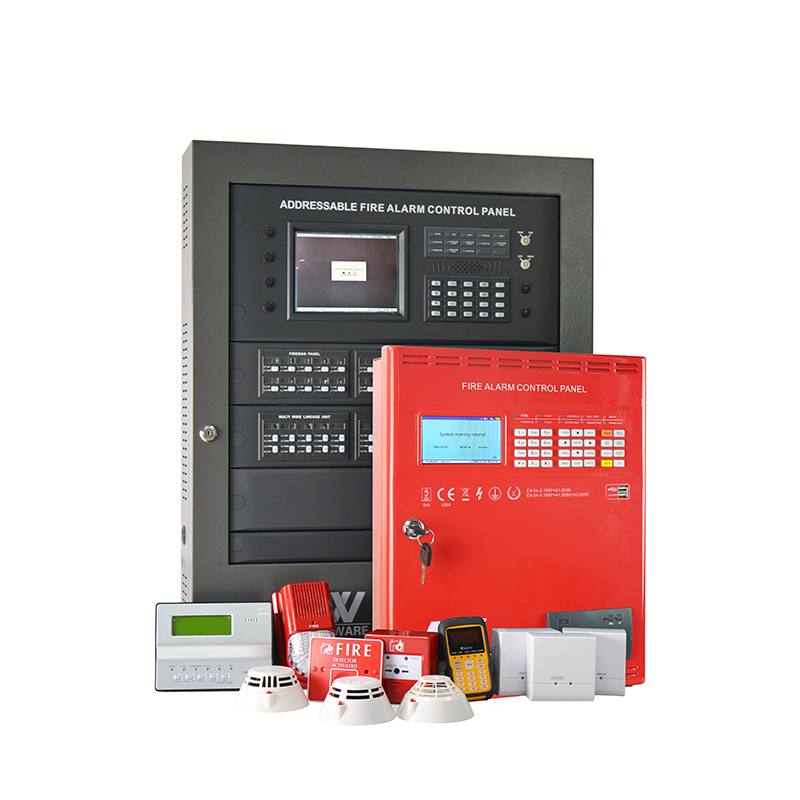

facp fire alarm panel conventional and addressable 24V DC system
Why need Asenware firm alarm system?
1.Competitive price
(Factory of fire alarm systems,save your much cost)
2.Good quality
(All products CE standard,strong QC team to make sure the quality)
3.Offer building design service,better help you win bids!
4.Best after sale service
(If you have any question after purchased our products,our engineers can
answer your all technique questions 24 hours online)
Parameters:
| ITEM | 1 Zone panel | 2 Zone panel | 4-8Zone panel | 4-32 Zone panel |
| Model No. | AW-CFP2166-01 | AW-CFP2166-02 | AW-CFP2166-04-16 | AW-CFP2166-04-32 |
| Power specification | ||||
| Mains supply voltage | 110VAC or 240VAC | |||
| Internal power supply | 27.2VDC | |||
| Total output current limited | 500mA @ 240VAC | 500mA @ 240VAC | 3A @ 240VAC | 3A @ 240VAC |
| Batteries (Default Configuration) | 12V2AH*2=24VDC in Total | |||
| End of Line device | 6.8k Ω,5% tolerance, 0.25W (colour code-blue,grey,red,gold) | |||
| End of line resistor value | 6.8k Ω,5% tolerance, 0.25W (colour code-blue,grey,red,gold) | |||
| Size and weight | ||||
| Dimensions(mm) | 272*200*70mm | 320*231*90mm | 395X502X124 | 362X565X124 |
| Weight (without batteries) | 4kg | 5kg | 7kg | 8kg |
| Weight (with batteries) | 5.8kg | 6.8kg | 9.6kg | 12.5kg |
The 2188/2100 series have the below detectors and accessories:
1. AW-ASD2188: addressable photoelectric smoke detector
2. AW-ATD2188: addressable fixed temperature heat detector
3. AW-ASH2188: addressable smoke and heat combined detector
4. AW-AMC2188: addressable manual call point
5. AW-ASS2188: addressable hooter/horn
6. AW-AIO2188-IN: addressable input module
7. AW-AIO2188-OUT: addressable out module
8. AW-CODERF900E: coder for setting address
9. AW-RP2188: repeater
Notice:We also offer fire alarm panel and other fire alarm parts like bells,heat detector,MCP.
For more details,please email sales08 at asenware.com
Asenware is a professional manufacturer of fire alarm systems.
Our main producst:fire alarm panel,smoke detector,heat detector,bells etc.
Our factory(Conventional fire detection system fire alarm panel system)
Certification
Our clients
Welcome you inquiry us at any time!
Contact us:
1.Email:sales08 at asenware.com
2.Mobile:0086-136-3251-2808
3.Skype:Asenware-Ana
