Digital Addressable Alarm System Fire Alarm Repeater Panel
Description of Addressable Fire Alarm Control Panel System
- 32-bit MCU
- Non-polarity analog 2 –wire addressable bus
- Each detector sensitivity adjustable
- Field-programmable with PS/2 standard PC keypad and mouse
- 7.4’ LCD back-light display
- Windows menu and interface
- English interface and panel display
- CF card duplicate or reset system setup fire and history fire to facilitate maintenance
- Single point start/stop of module(menu operation)
- Single point test of detector/ module
- Zone, building or floor integration and display
- Graphic monitor system visually display the location of fire and trouble
- Eleven user each with a password and selectable access level
- Field software upgrade
- AW-AFP2100 peer-to-peer, long-distance optical fiber transmission network via CAN communication transform module
- Flexible collocation by modularized combination
Technical Parameters of Addressable Fire Alarm Control Panel
Each loop card has 2 loops, with 324addresses as alarm /control points of each loop, the capacity of each loop card is 324*2=648(addresses)
Each wall mounted AW-AFP2100 panel can be installed maximum 3 loop card, the maximum capacity is 648*3=1,994 (addresses). Over 1994 addresses, use the cabinet panel. The cabinet panel can be installed maximum 40 loop cards, the maxim capacity is 648*40=25,920(addresses)
Peer-to peer with max. 20 AW-AFP2100 panels, the maximum system capacity:25,920*20=518,400 (addresses)
Operating environment:
Temperature: -10~+55
Relative humidity:95%(40, non-condensing)
AC power:220VAC,50Hz, 3A
DC power: 24 VDC,7.0Ah

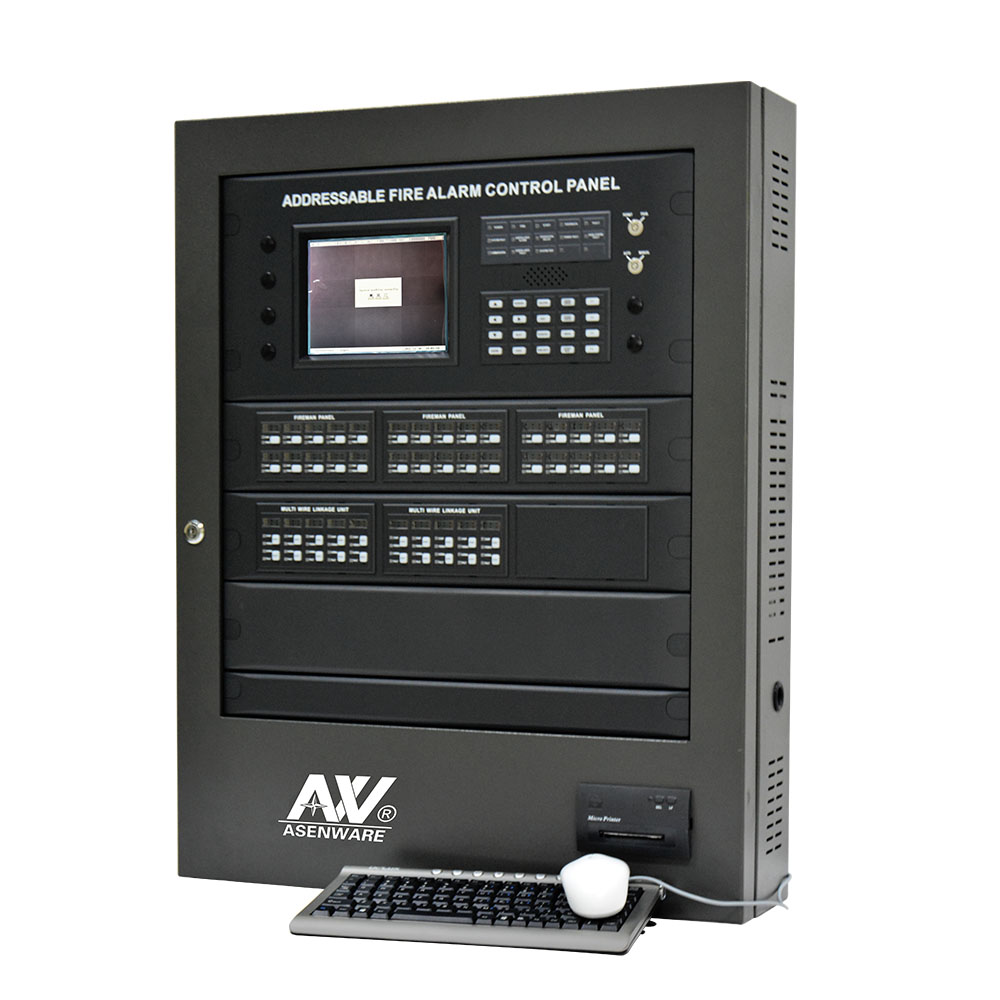

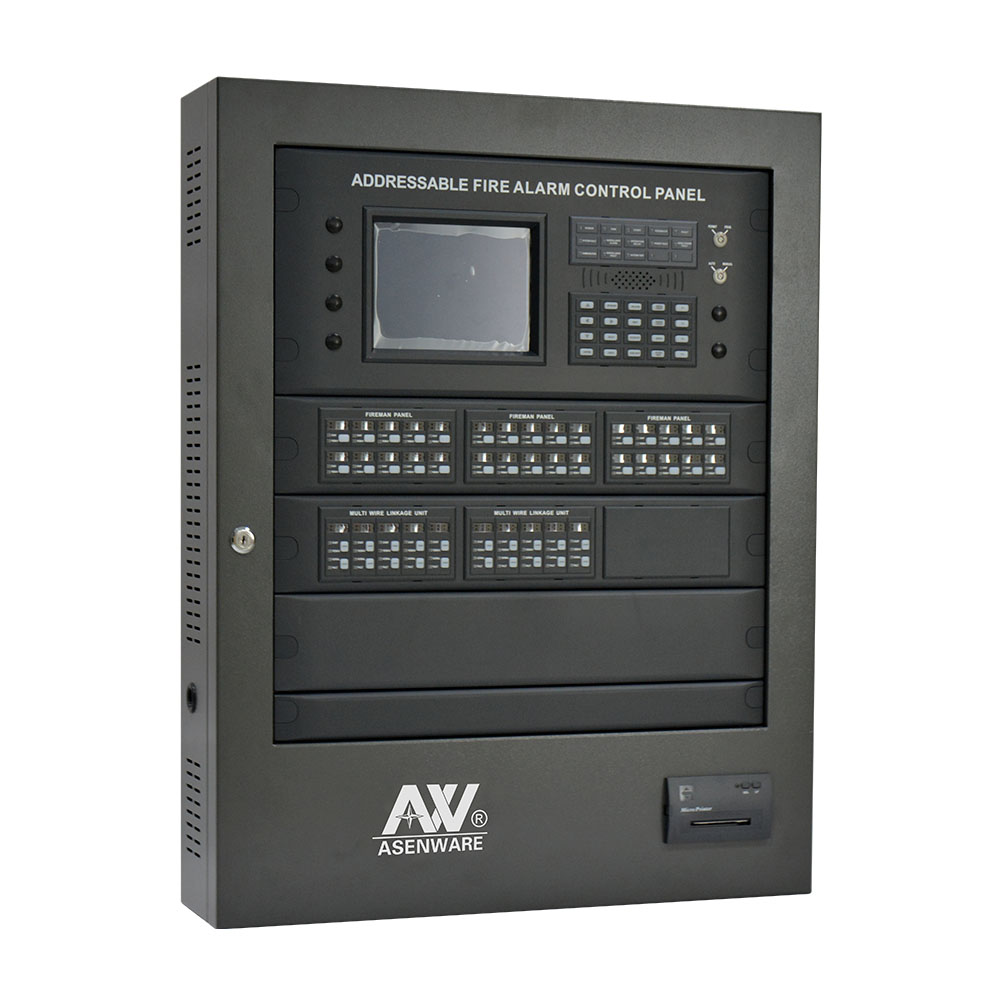

addressable fire alarm control panel"s picture display
Addressable Fire Alarm System Optional Accessories:
analog fire alarm control panel "s picture display
Asenware specialized in the Fire Alarm and BMS(Building Management System) over 10 years.
We have 3 series fire alarm control systems with time-tested performance:
1. 2166 Series: Conventional fire alarm system with optional 1-32 zone panels.
2. 2188 Series: Addressable fire alarm system for middle fire project with optional 100/200/324 addresses.
3. 2100 Series: Addressable fire alarm control system for big fire project with minimum addresses starting from 648,648*2,648*N.
Certificates of intelligent addressable fire alarm control panel
Exhibition hallof addressable fire detection panel
industrial addressable fire alarm control panel show room:
1. Pre-sales: Professional and experienced R&D center can offer free technical support and project budget.
2. Sales: All-around and all-weather online prompt reply as well as standard quotation.
3. After-sales: one year warranty and technical maintenance.
Packaging Details: Plastic, Cartons, plywood case
Shipping:deliver by air mail or ship for your order( EMS, DHL,FedEx,UPS).
Delivery Time: one week.
1. Certificate: CE, ISO9001
2. Payment terms: T/T,L/C,Western union,Money Gram.
3. Warranty: One year
Please contact me freely to get more information about addressable fire alarm control panel.
